User’s Manual
ECM-LX800 User’s Manual 19
2.2.1 Main Memory
ECM-LX800 provides one 200-pin SODIMM sockets to support DDR SDRAM. The total
maximum memory size is 1GB.

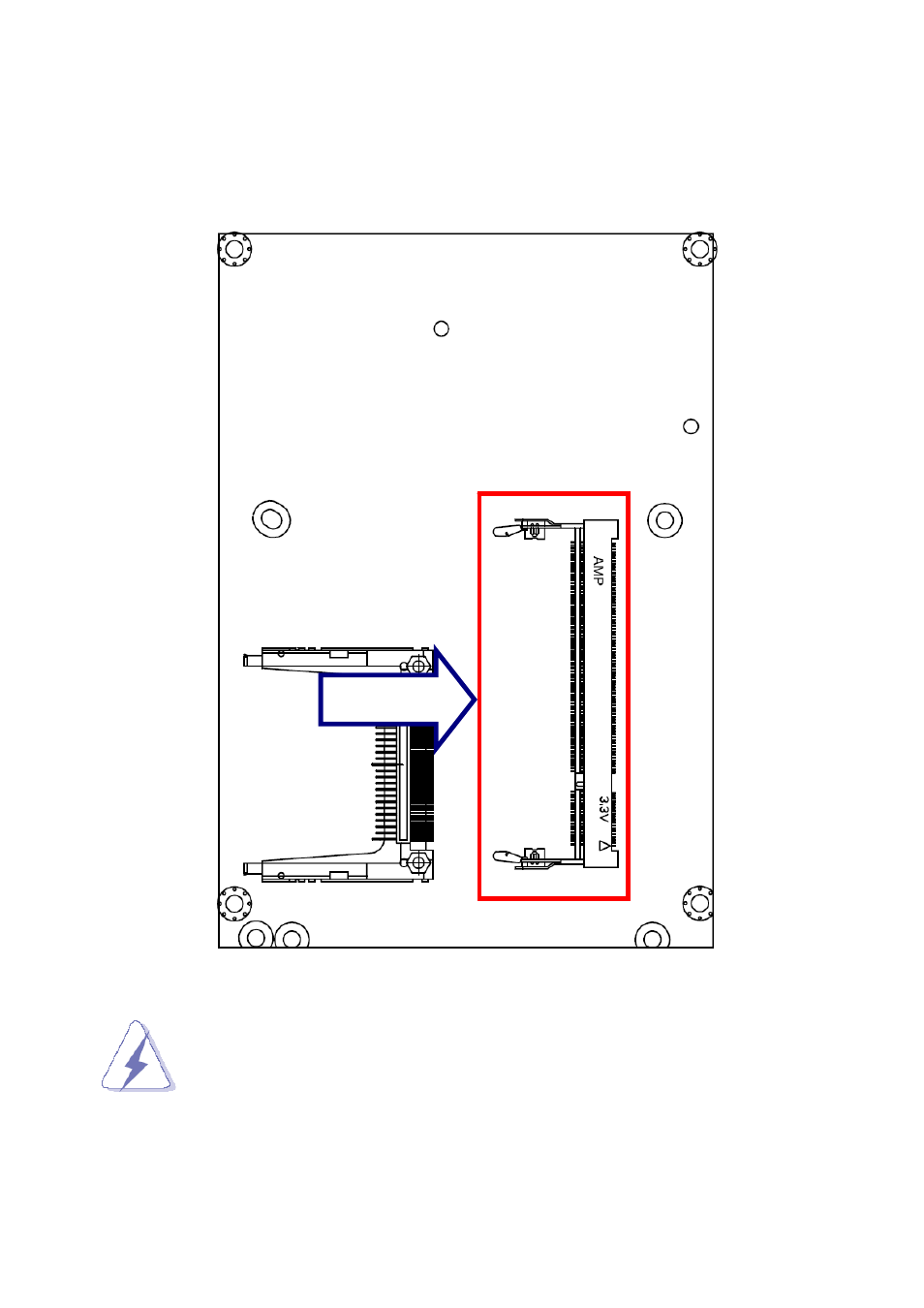

(Rear side)
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to
both the board and the components.
SODIM1
