ECM-LX800

32 ECM-LX800 User’s Manual

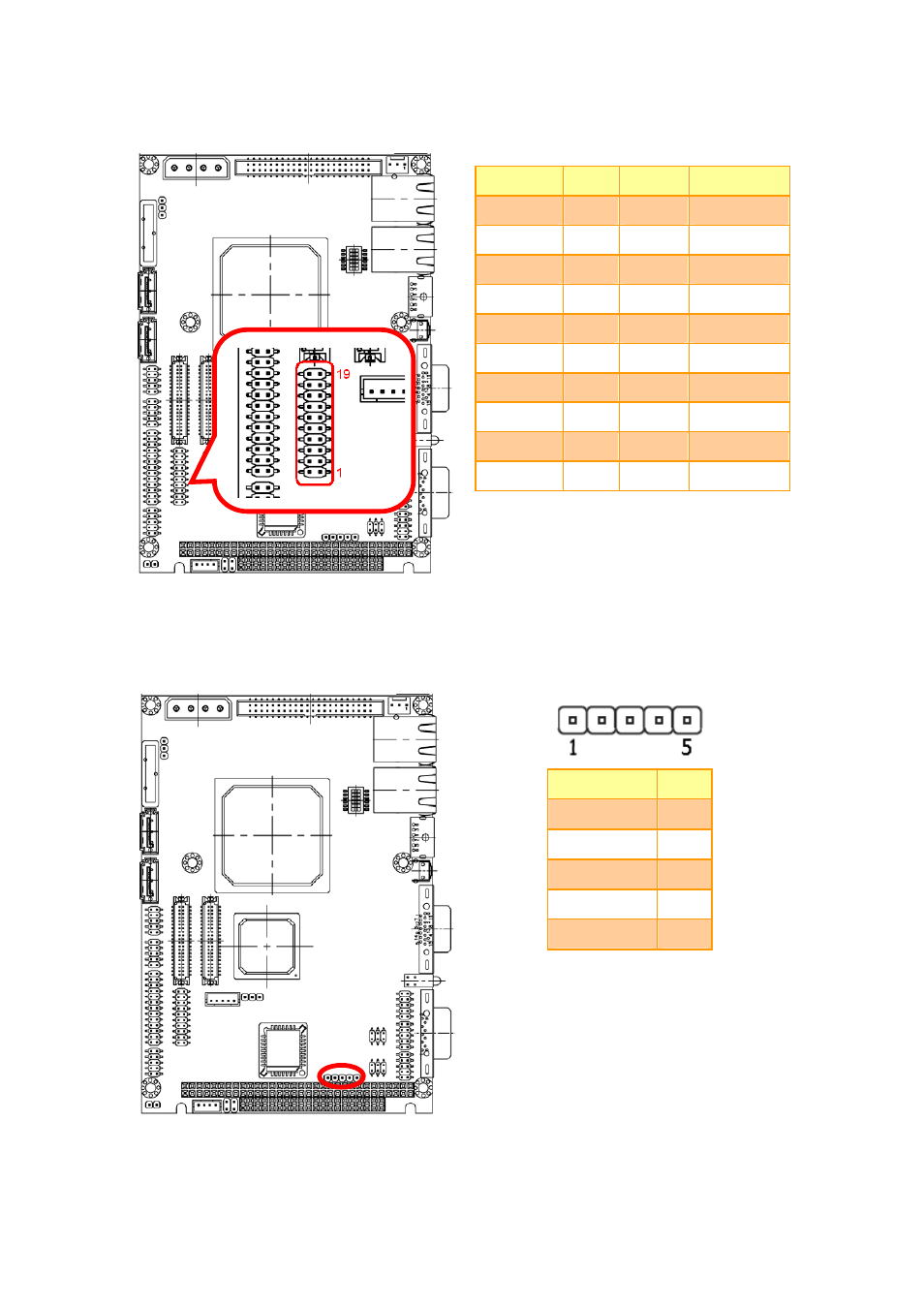

2.4.14

General purpose I/O connector (JDIO)

Signal

PIN

PIN

Signal

GPO20

1

2

GPI10

GPO21

3

4

GPI11

GPO22

5

6

GPI12

GPO23

7

8

GPI13

GPO24

9

10

GPI14

GPO25

11

12

GPI15

GPO26

13

14

GPI16

GPO27

15

16

GPI17

SMB_CLK

17

18

SMB_DATA

GND 19 20 +5V

2.4.15

IrDA Connector (JIR)

Signal

PIN

+5V

1

NC 2

IRRX

3

GND 4

IRTX

5
