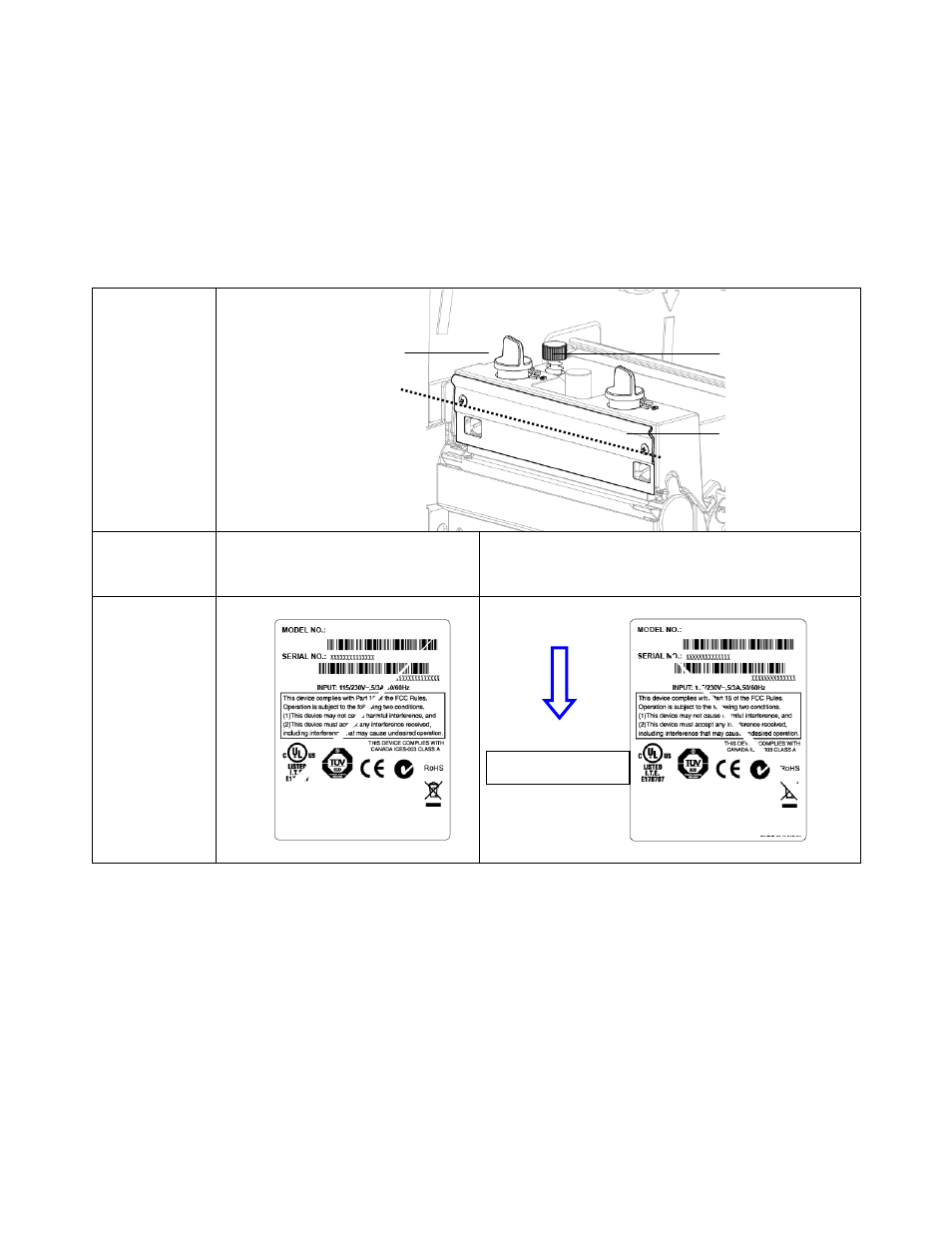

5.2 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
This printer has been fully tested before delivery. There should be no ribbon
wrinkle presented on the media for general-purpose printing application. Ribbon
wrinkle is related to the media thickness, print head pressure balance, ribbon film
characteristics, print darkness setting…etc. In case the ribbon wrinkle happens,
please follow the instructions below to adjust the printer parts.
Adjustable
Printer
Parts
Symptom
1. Wrinkle happens from label
lower left to upper right
direction (" ")
2. Wrinkle happens from label lower right
to upper left direction (" ")
Wrinkle
Example
Feed direction
Ribbon guide plate
Print head pressure
adjustment knob
Z-axis mechanism
adjustment knob
