powerup. For installation details, see “Installing a CF Card” on
page 33..
1.5.8 Gigabit Ethernet (Intel 82574L)
The TPZ-1300 provides two Gigabit Ethernet ports on the front
panel, and one on the rear, via the Intel 82574L controller. The
Ethernet controller supports the following features:
X
Advanced error reporting
X
Message signaled interrupts
X
TCP segmentation offload/large-send support
X
802.3x flow control-compliant
X
IEEE 802.1p and 802.1q support
X
10/100/1000 IEEE 802.3-compliant
X
Automatic MDI/MDIX crossover at all speeds
X
ACPI 2.0 specification
X
Wake-On-Link feature
X Preboot eXecution Environment (PXE) flash interface sup-
port
1.5.9 Active/Link & Speed LEDs

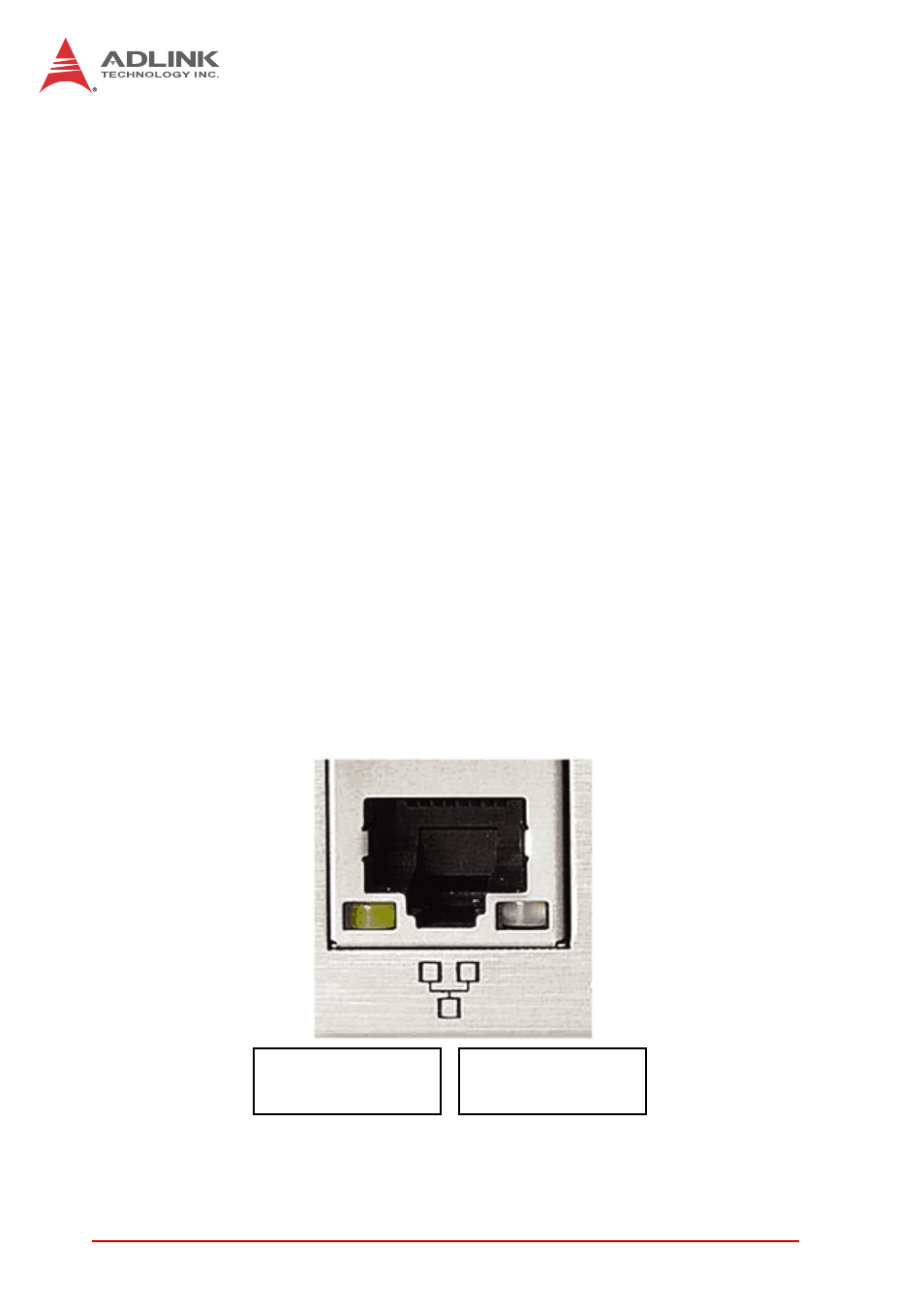

Figure 1-8: Active/Link & Speed LEDs
Active/Link LED
Yellow
Speed LED
Green/Orange
