Internal Components 29
HPERC-IBR-H
2.1.8 Replacing the Mini PCIe Card
The HPERC-IBR-H features one Mini PCIe Card slot for high-speed serial I/O capability.
To remove the Mini PCIe Card from the enclosure
1) Shut down the system and disconnect the enclosure from the power source as described
earlier in Shutting Down the HPERC-IBR-H.
2) Remove the SSDs, system cover plate, SSD bracket, PCI/104-Express module as
described earlier. The FPC connector does not need to be disconnected.
3) Remove the Mini PCIe Card as shown in Figure 2-16.

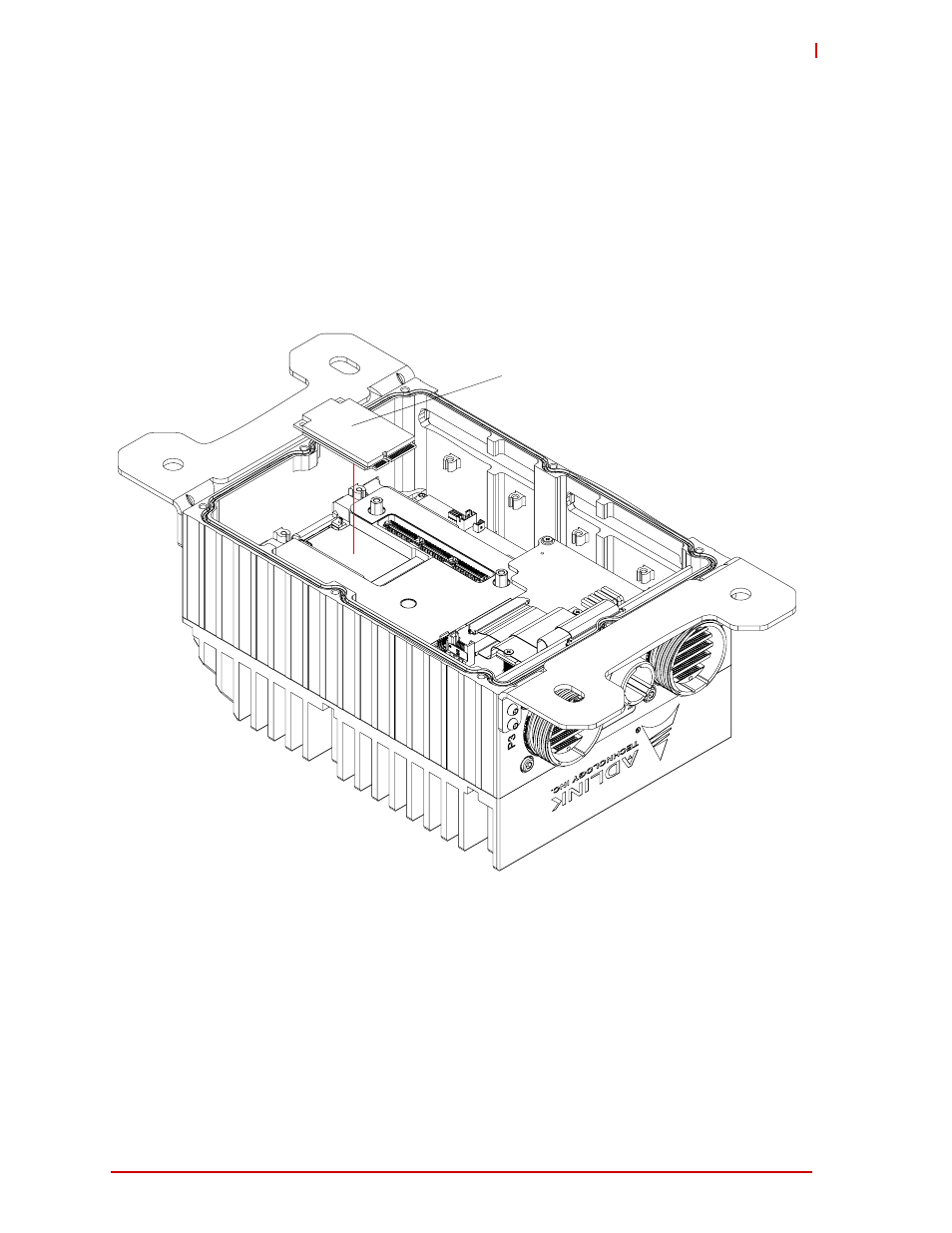

Figure 2-16: Top View of HPERC-IBR-H with Open Enclosure and Mini PCIe Card
To install the Mini PCIe Card
1) Insert the Mini PCIe Card edge connector into the socket as keyed.
2) Make sure the card is seated fully in the socket.
Mini PCIe Card
