40 Getting Started
Matrix MXC-4000 Series
User’s Manual
3.4 Plug-in DC power
Note: Before plugging DC power into the MXC-4000
seriescontroller, please make sure you have correct
voltage and polarity for your DC input. An improper input
voltage or polarity will cause system damage.
The DC power input connector of the MXC-4000 controller con-
sists of three pins, V+, V- , and chassis ground from right to left
respectively. The DC power input accepts an input voltage from 9

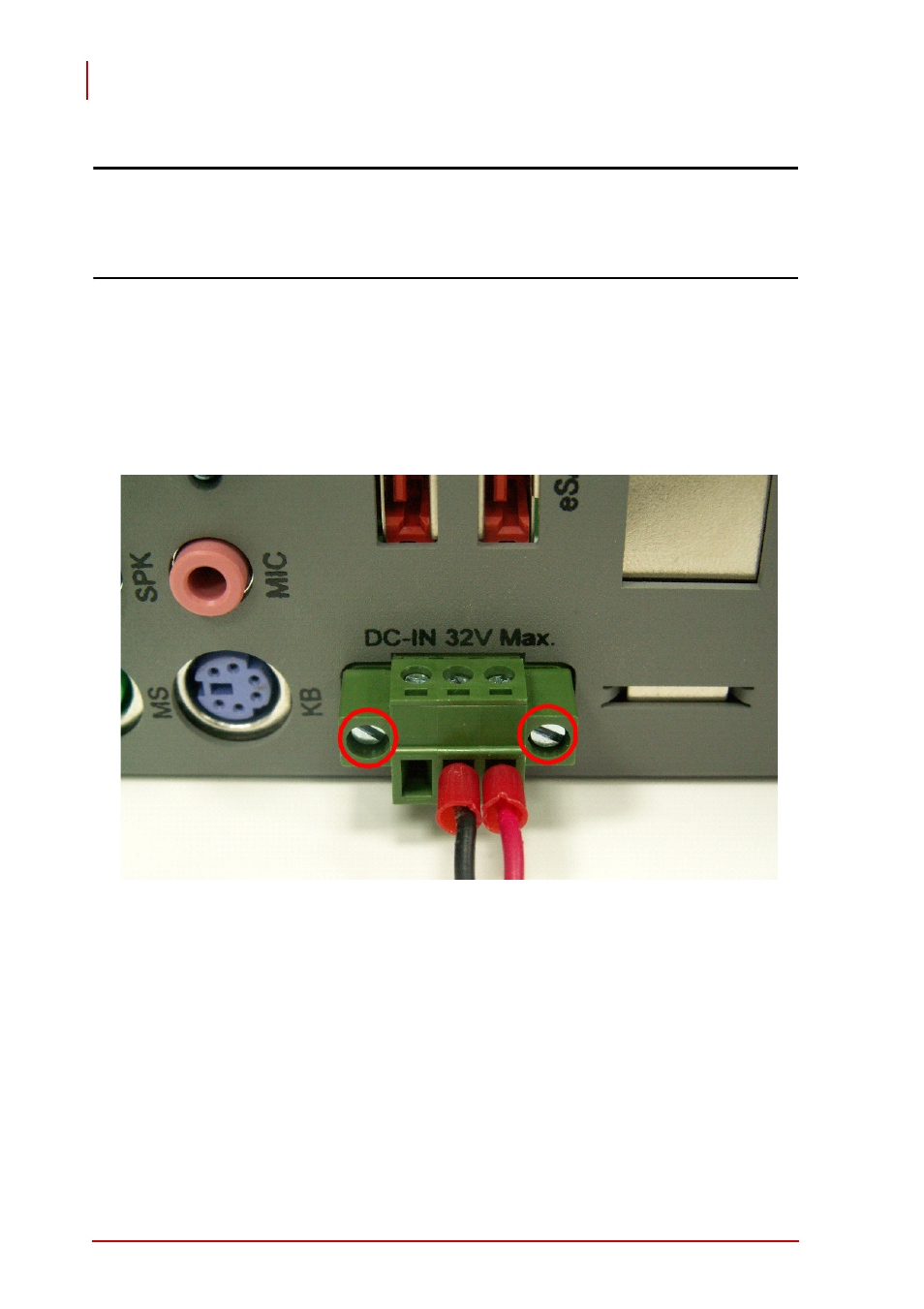

VDC to 32 VDC. Connect the DC power as shown in the figure
showed below. Two screws of the plug should be fastened to pre-
vent the plug from becoming loose.
