20 System Description
Matrix MXC-4000 Series
User’s Manual
2.4.2 LVDS Connector
The MXC-4002D/4011D controller provides LCD panel function in
the LVDS connector on the front panel.
The MXC-4000 series supports only 18-bit one channel panel
type.
2.4.3 COM Ports
The MXC-4002D/4011D controller provides four COM ports in the
form of D-Sub 9P connectors. COM1 and COM2 ports support
RS-232/RS-422/RS-485 by BIOS selection, while COM3 and
COM4 ports support RS-232 function only. Please refer to section
1 C_LVD_A_DATA2_
N 14 VCC_FPD
2 C_LVD_A_DATA2_
P 15 DGND
3 DGND 16 C_LDDC_CLK
4 C_LVD_EN 17 C_LVD_A_DATA0_
N
5 D12V_EXT 18 C_LVD_A_DATA0_
P
6 C_L_BRIGHTNESS 19 DGND
7 C_LBKLT_EN_DEL
AY 20 C_LCD_PID1_R
8 C_LDDC_DATA 21 C_LCD_PID0_R
9 C_LVD_A_DATA1_
N 22 DGND
10 C_LVD_A_DATA1_
P 23 C_LVD_A_CLK_P
11 DGND 24 C_LVD_A_CLK_N
12 C_DBL_CLK 25 CHGND
13 DGND 26 CHGND

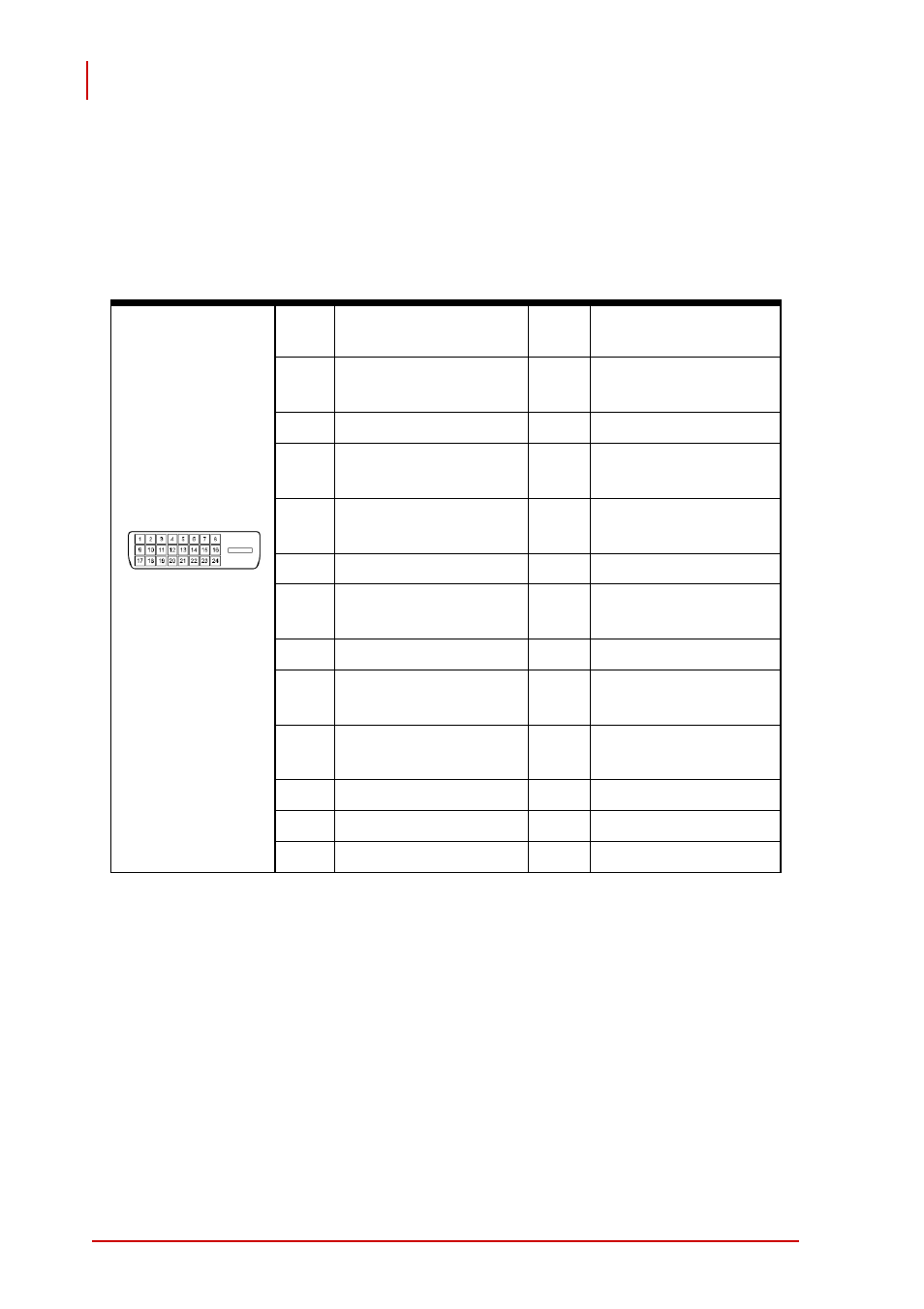

Figure 2-4: LVDS Connector
