24 System Description
Matrix MXC-4000 Series
User’s Manual

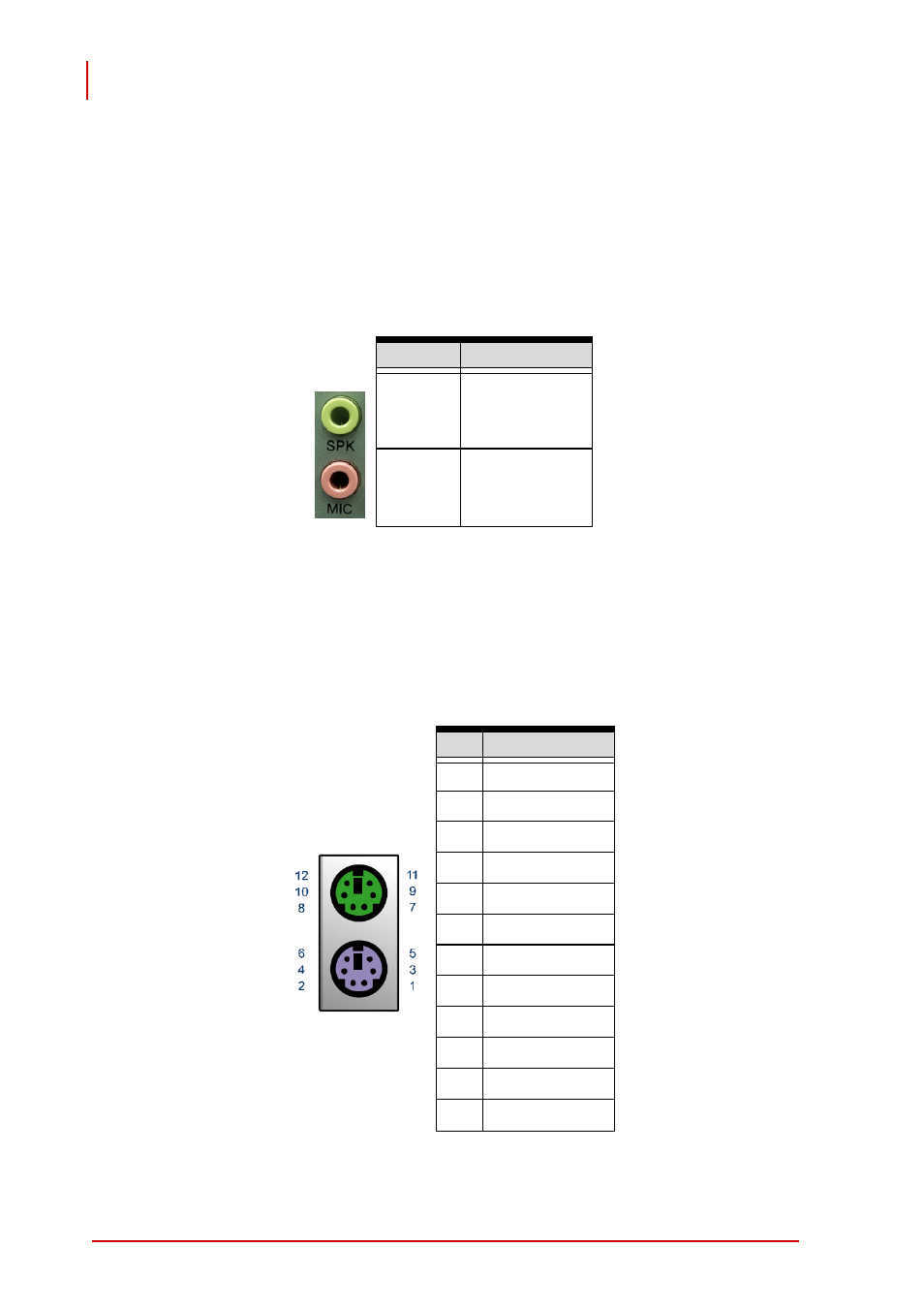

2.4.6 Audio Jacks
The MXC-4002D/4011D controller implements Intel High Definition
audio using Realtek ALC262 chip. The HD audio supports up to
24-bit, 192 Kbps high quality headphone/speaker output and
microphone input. Users can access the audio jacks on the front
panel of MXC-4000 series. The pink jack is for microphone input,
and the green jack is for speaker output.
2.4.7 Keyboard & Mouse PS2 Connectors
The MXC-4002D/4011D controller provides connectors for con-
necting PS2 keyboard and mouse. The green connector is for PS/
2 mouse and the purple one is for PS/2 key-board.
Color Signal Name
GREEN LINE OUT
PINK MIC IN
Table 2-8: Audio Jacks
PIN Signal Name
1
KBDATA
2 NC
3 DGND
4 KBVCC
5 KBCLK
6 NC
7 MSDATA
8 NC
9 DGND
10 KBVCC
11 MSCLK
12 NC
Table 2-9: Keyboard & Mouse PS2 Connectors
