PRELIMINARY
26 Introduction

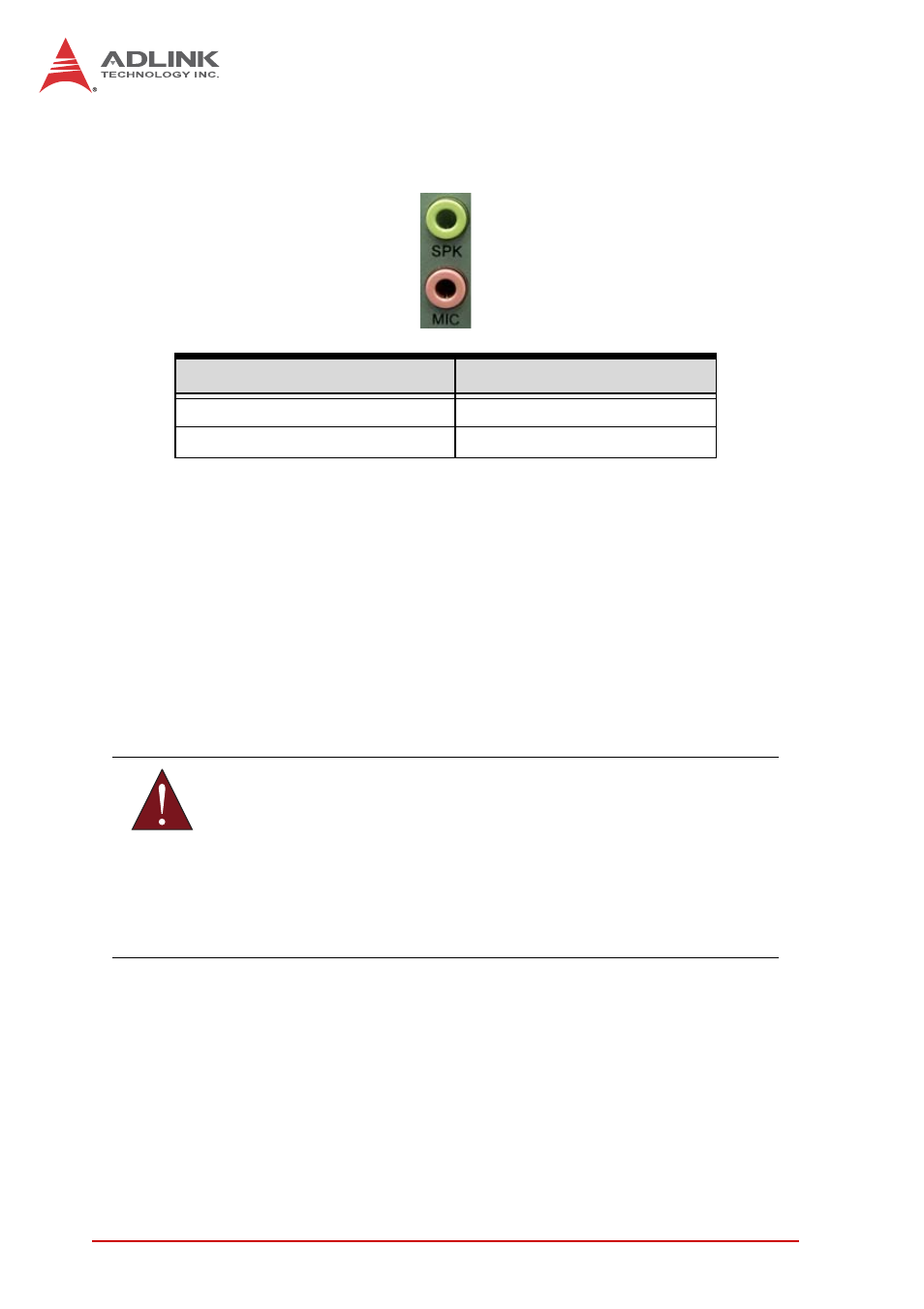

input. Audio jack access is on the front panel. The pink jack pro-
vides microphone input, and the green jack line out.
Table 1-12: Audio Jack Signals
1.6.13 DC Power Connector
The DC power supply connector of the MXC-2300 is on the front
panel. The power supply connector consists of three pins, V+,
chassis ground, and V- from right to left respectively. V+ and V-
pins provide DC power input and the chassis ground pin allows
connection of the chassis to ground for better EMC compatibility.
The DC power input for the MXC-2300 allows a voltage input
range from 9 V DC to 32 V DC.
Color Signal
Green lineout
Pink Mic In
WARNING:
Ensure that the DC power supply:
X is within the input voltage range defined in the
specification
X is stable and low-noise DC
X provides sufficient operating current
DC power supply over or under voltage, unstable, or of insuffi-
cient power may cause system instability and physical damage
