22 Introduction

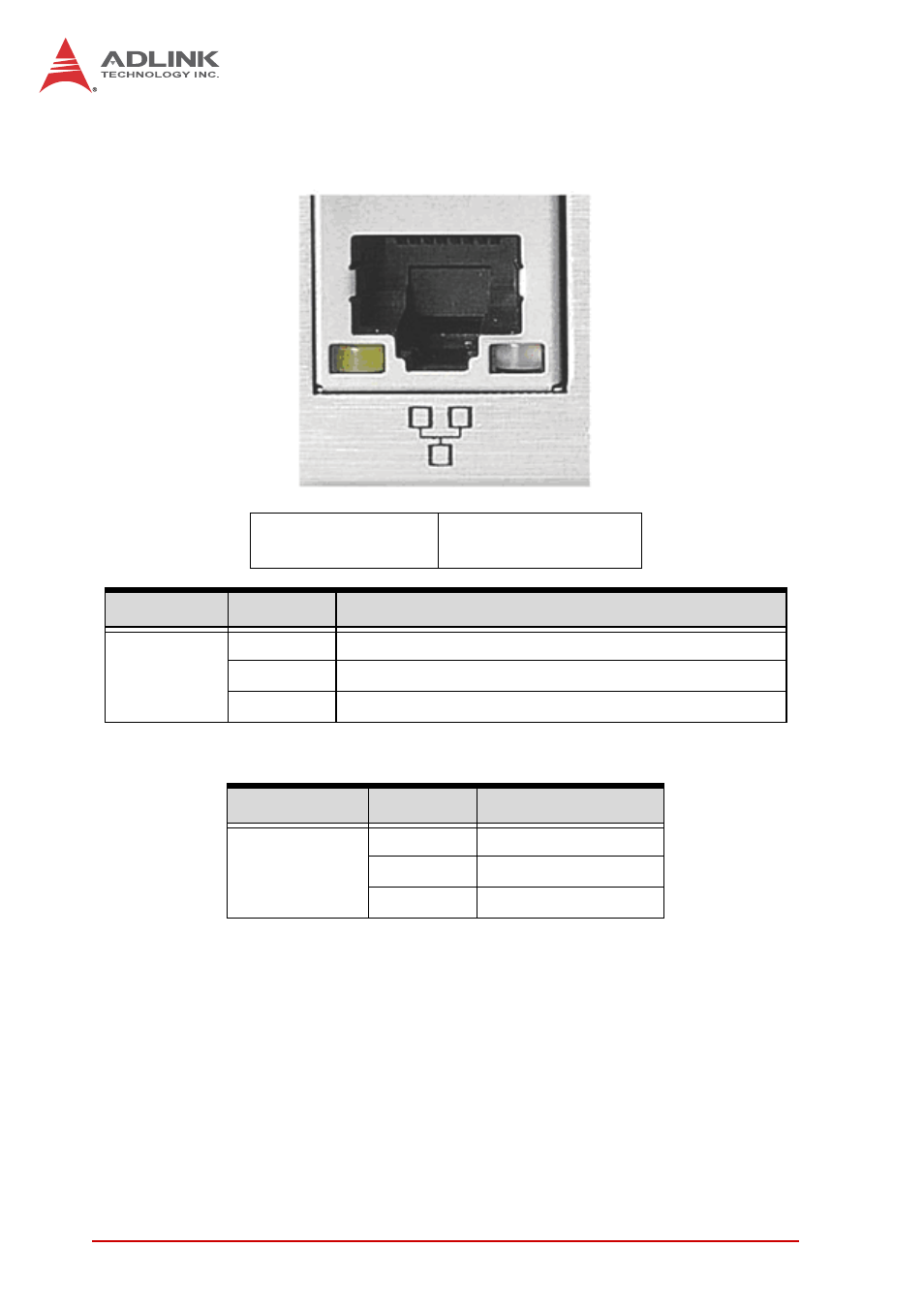

X LAN Teaming
Table 1-6: Active/Link LED
Table 1-7: Speed LED
1.6.8 Compact Flash Socket
A Type I Compact-Flash socket provides +3.3V voltage to a CF
card. The CF interface is transferred from SATA by an ASIC, and
can be an alternative storage device for system installation. The
MXC-2300 can boot via a CF card with OS installed. Due to the
nature of the SATA interface, the CF card cannot hot-plug and
must be installed before powering up the system.
Active/Link
Yellow
Speed LED
Green/Orange
LED Color Status Description
Yellow
OFF Ethernet port is disconnected.
ON Ethernet port is connected with no activity.
Flashing Ethernet port is connected and active.
LED Color Status Description
Green/Orange
OFF 10 Mbps
Green 100 Mbps
Orange 1000 Mbps
