6 Introduction

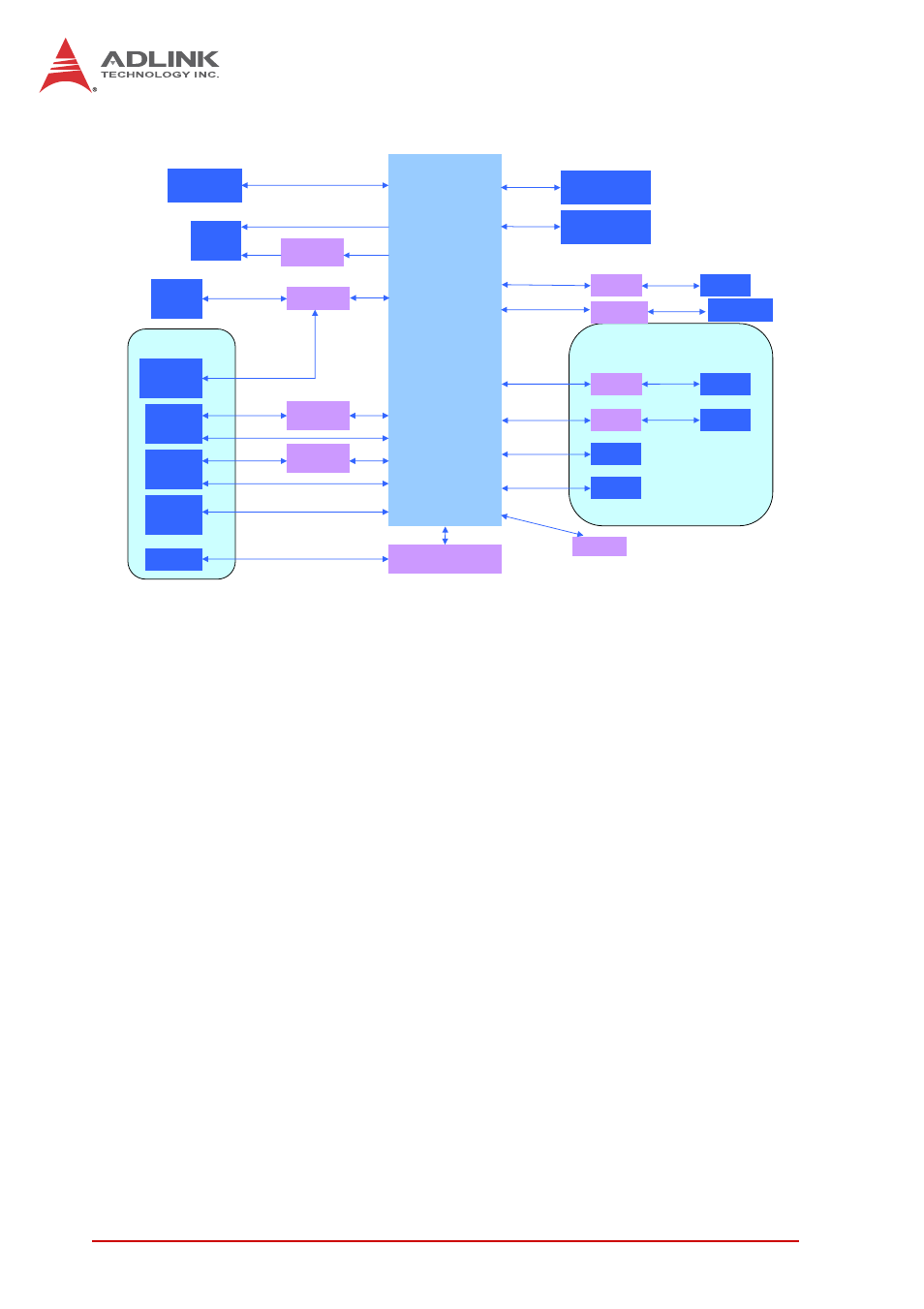

Figure 1-1: MXC-2300 Functional Block Diagram
Channel A
204 pin SODIMM
Intel ࿗ Atom
E3845 1.91GHz
Processor
DDR3L
RJ45 &
USB2.0 x 2
Connector
IO Board
RJ45 &
USB2.0 x 2
Connector
Line out &
Mic in
Connector
Dsub -9
x4
GbE I/F
USB 2.0
Audio
COM x4
PCIe x1
PCIe x1 GbE controller
Intel WGI210IT
GbE I/F
USB 2.0
Super I/O
ITE IT8786F
LPC
DVI
CRT
DVI-I
Connector DVI
level shifter
Riser Card
PCI slot
X2
SATA
Connector
Internal
USB
USB 2.0
SATA II
PCIe x2
PCI
16ch
D I/O
Channel B
204 pin SODIMM 1333MHz
DDR3L
PCIe
Switch
PCIe x4
slot
PCIe x1
PCIe to PCI bridge
CF Slot
SATA II
FPGA
DDI1
DDI0 DisplayPort
connector
CAN Bus CAN Bus
Connector
x2
1333MHz
GbE controller
Intel WGI210IT
PCIe x4
PCIe
Switch
IDE
PCIe x1
SEMA BMC
SMBus
MiniPCIe v1.2
PCIE x1
USIM Socket
