PRELIMINARY
20 Introduction
1.6.4 Controller Area Network (CAN) Port

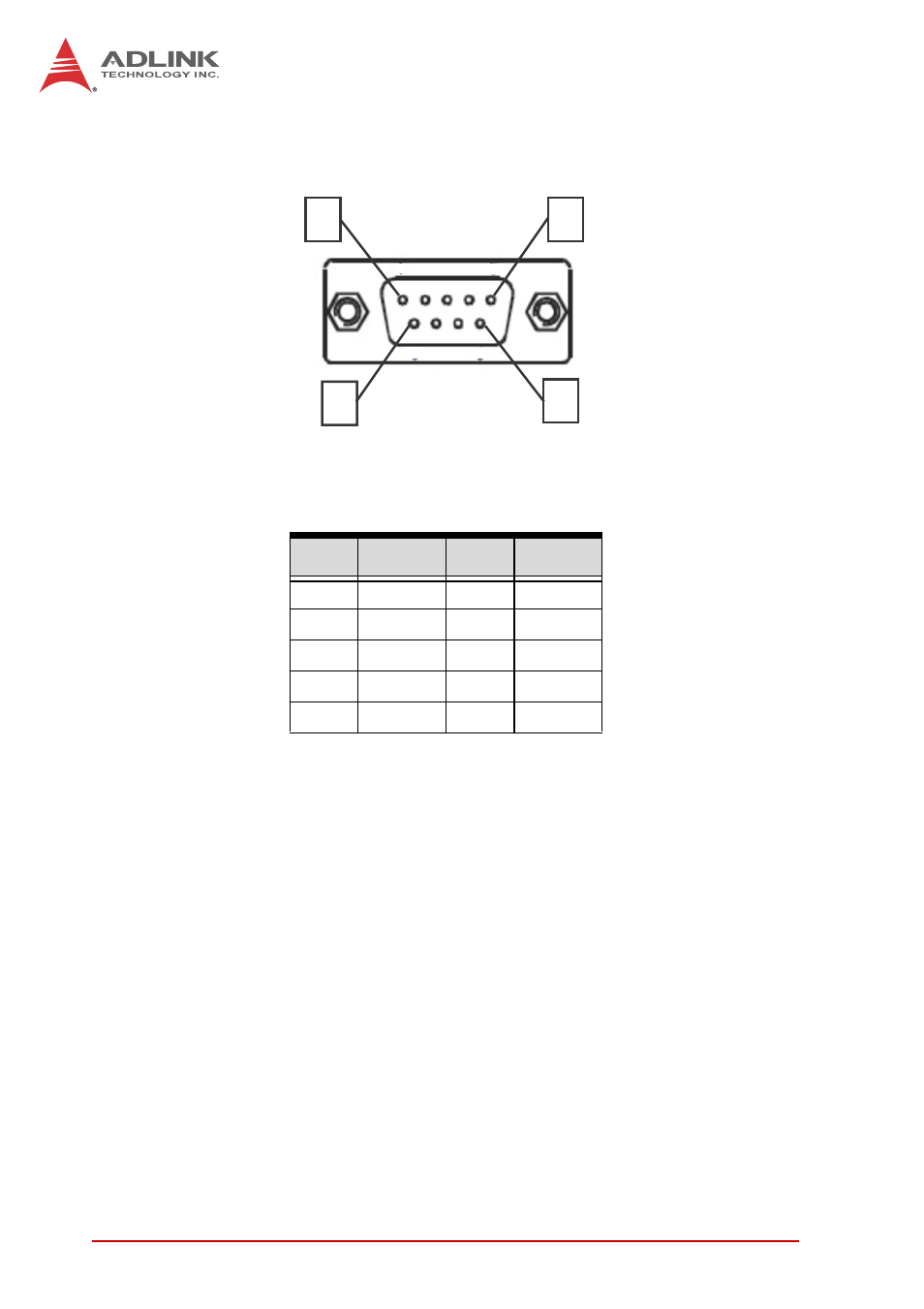

Figure 1-13: CAN Port
Table 1-5: CAN Port Pin Assignments
The Controller Area Network (CAN) interface supports dual-port
isolated CAN connection that can run independently or bridged at
the same time. The built-in CAN controller is a Phillips SJA1000,
providing bus arbitration and error detection with auto correction
and re-transmission capability, and features:
X
Dual independent CAN network operation
X
Bridge function support
X Compatibility with CAN specification 2.0 parts A and B
X Optically isolated CAN interface with up to 1000 Vrms isola-
tion protection
X
Direct memory mapping to CAN controllers
X
Powerful master interface for CANopen, DeviceNet and
SDS application layer protocol
Pin Signal Pin Signal
1 N/A 6 N/A
2 CAN_L 7 CAN_H
3 GND 8 N/A
4 N/A 9 N/A
5 N/A
1 5
6 9
