4 board interfaces, 1 vpx3000 board layout, Chapter 4, board interfaces – ADLINK VPX3000 User Manual
Page 31: Vpx3000 board layout, Figure 4-1: vpx3000 board layout, 4board interfaces

Board Interfaces
19
VPX3000
4
Board Interfaces
4.1
VPX3000 Board Layout

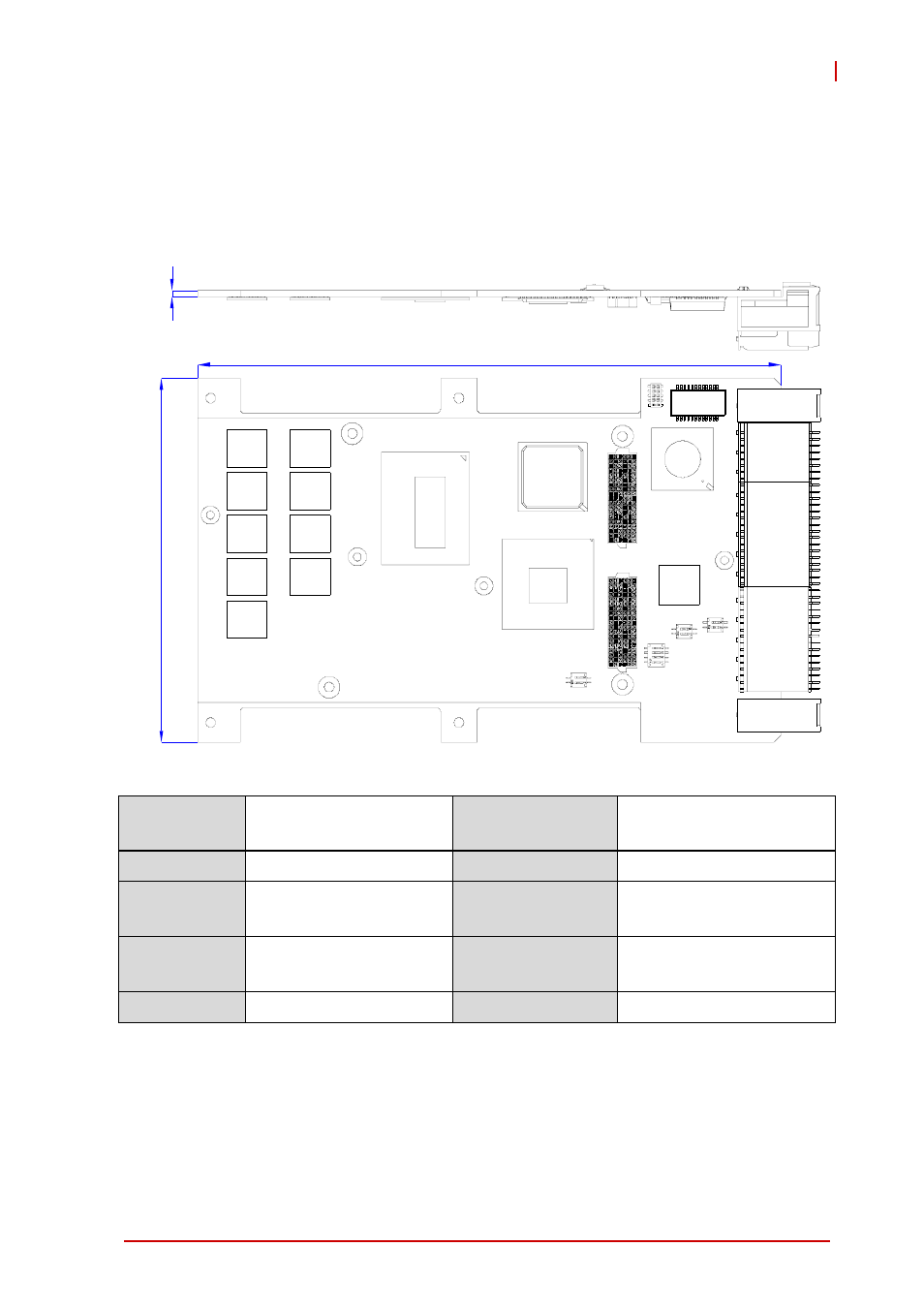

Figure 4-1: VPX3000 Board Layout
CPU
Intel Core Processor
SSD
16/32GB SATA NAND
Flash
PCH
Intel QM77 PCH
J15
XMC Connector
BRG
Pericom PEX8619
Bridge
Jn6
XMC Rear I/O
Connector
LAN
Intel 82580EB
Ethernet Controller
SW
DIP Switch for PCIe to
P1 configuration
RAM
DDR3 Memory Chips
P0-2
VPX Connectors
(9
9
.8
5
)
(160)
(1
.6
)
PCH
CPU
P0
P1
P2
RAM
XMC
Jn6
BRG
LAN
SSD
SW
