Removing the SATA Hard Drive - cPCI-6510V
Reverse steps 1 through 5 above to remove the SATA hard drive.
5.2 CompactFlash Card Installation

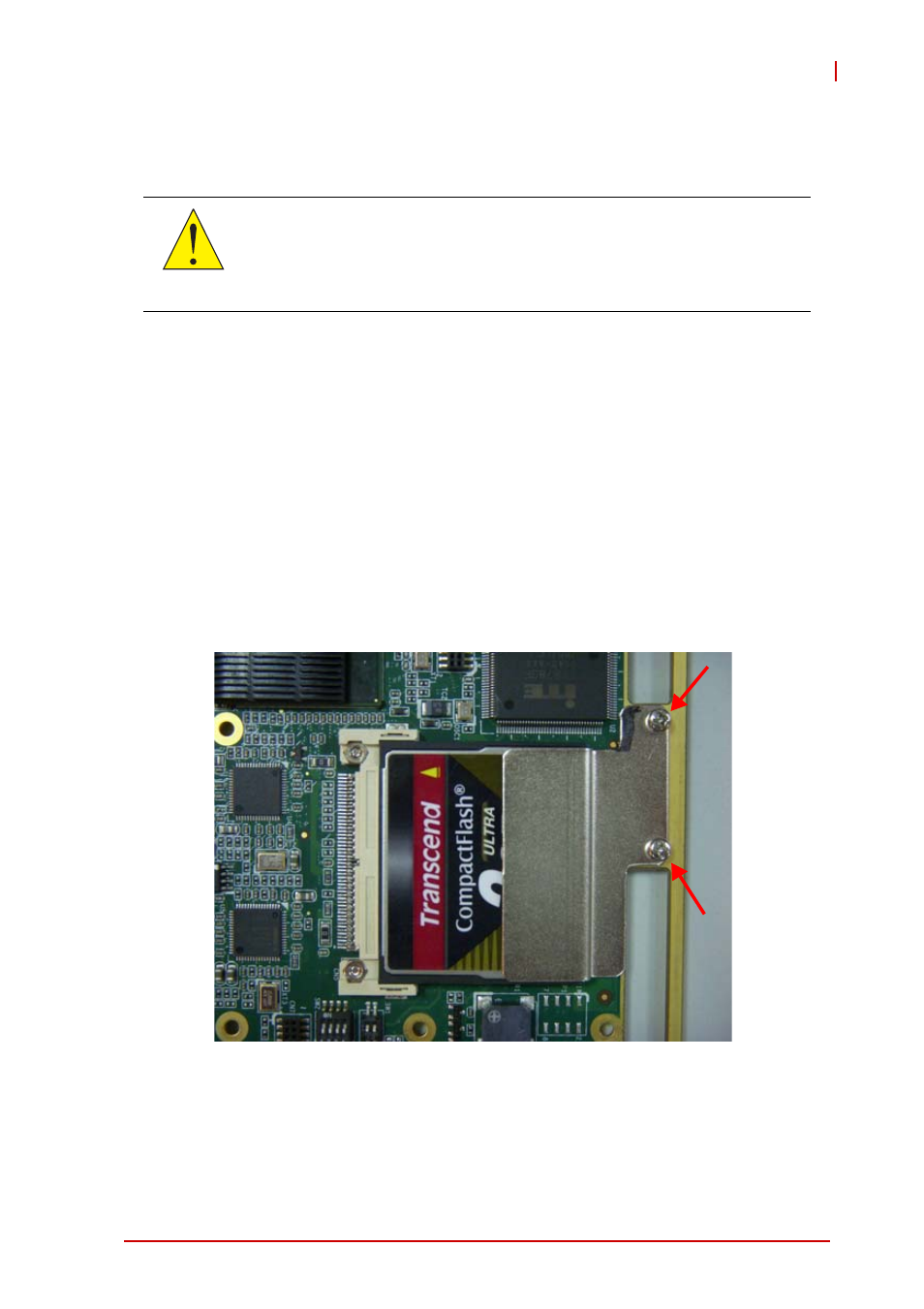

Installing a CF card – cPCI-6510
Insert the CF card into the CF slot on the cPCI-6510 (CN5 - see
“cPCI-6510 Series Board Layout - Top Side” on page 21). Then
install the card retaining bracket with the 2 screws provided to pre-
vent the CF card from sliding out of the slot. If necessary, first
remove the hard drive assembly by reversing the steps described
in “Installing a SATA Hard Drive - cPCI-6510V” on page 42 above.
CAUTION:
When removing the hard drive, be careful to hold the adapter
board and lift upwards in a vertical motion to disconnect it from
the board-to-board connector. This will avoid damaging the
adapter board and connectors.
