38 Board Interfaces
4.5 Switch and Jumper Settings
Refer to “cPCI-6510 Series Board Layout - Top Side” on page 21
and “cPCI-6510 Series Board Layout - Bottom Side” on page 22
for switch locations.
SW1 & SW4 (Debug use only)
The switches SW1 & 4 are for debugging purposes and should
be left in the default settings. The default setting of SW1 is all
OFF; the default setting of SW4 is Pin 1 OFF and Pin 2 ON.

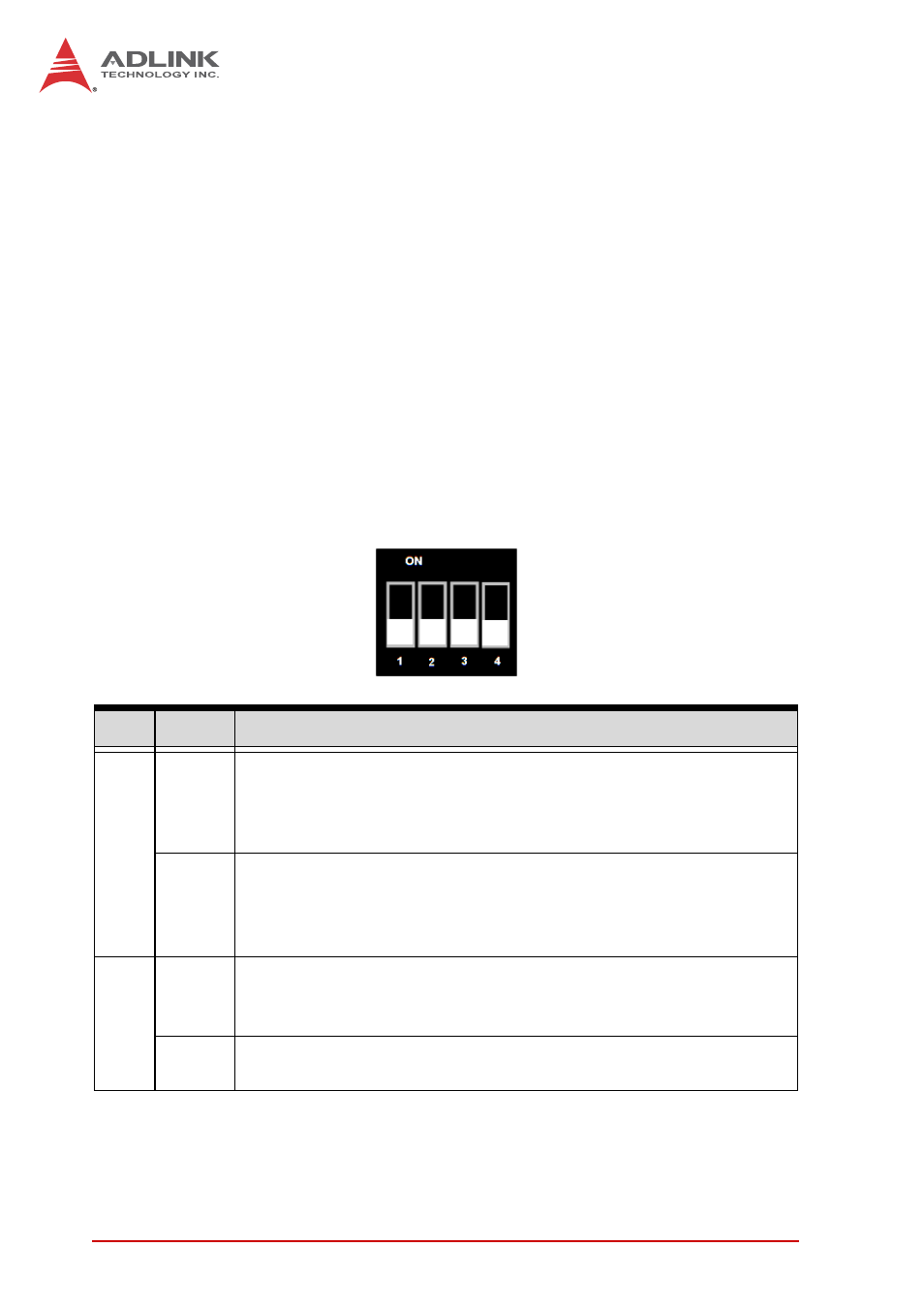

Mode Switch (SW2)
Switch SW2 is a multi purpose switch that allows users to
define the board operating mode. Four pins independently con-
trol the mode setting. All are set to OFF by default.
Pin# Status Description
1
OFF
Universal Mode:
The cPCI-6510 in a peripheral slot has
CompactPCI bus communication with the host board in the system
slot. The cPCI-6510 can boot-up in a peripheral slot and be
recognized by the host board in the system slot as a PCI device.
ON
Satellite Mode:
The cPCI-6510 in a peripheral slot has no
CompactPCI bus communication with the host board in the system
slot. The cPCI-6510 behaves a as standalone blade in the
peripheral slot.
2
OFF
When the system does not include a CMM (Chassis
Management Module), set this pin to OFF to allow IPMI to run in
"without CMM mode".
ON
When the system includes a CMM, set this pin to ON to allow
IPMI to run in "with CMM mode".
