Getting Started •13
2.7
Pin Assignment of Connector
(1) +12V
(26) GND
(51) GND
(76) ECLK9
(2) +12V
(27) GND
(52) GOUT2
(77) COUT8
(3) +12V
(28) GND
(53) GIN2
(78) GATE8
(4) Vcc
(29) GND
(54) GND
(79) ECLK8
(5) Vcc
(30) GND
(55) GOUT1
(80) COUT7
(6) Vcc
(31) GND
(56) GIN1
(81) GATE7
(7) NC
(32) GND
(57) E_INT
(82) ECLK7
(8) DI_6
(33) GND
(58) DI7
(83) COUT6
(9) DI_4
(34) GND
(59) DI5
(84) GATE6
(10) DI_2
(35) GND
(60) DI3
(85) ECLK6
(11) DI_0
(36) GND
(61) DI1
(86) COUT5
(12) DO_6
(37) GND
(62) DO7
(87) GATE5
(13) DO_4
(38) GND
(63) DO5
(88) ECLK5
(14) DO_2
(39) GND
(64) DO3
(89) COUT4
(15) DO_0
(40) GND
(65) DO1
(90) GATE4
(16) NC
(41) GND
(66) ECLK12
(91) ECLK4
(17) GND
(42) GND
(67) COUT12
(92) COUT3
(18) GND
(43) GND
(68) ECLK11
(93) GATE3
(19) GND
(44) GND
(69) COUT11
(94) ECLK3
(20) GND
(45) GND
(70) GND
(95) COUT2
(21) GND
(46) GND
(71) COUT10
(96) GATE2
(22) GND
(47) GND
(72) GATE10
(97) ECLK2
(23) GND
(48) GND
(73) ECLK10
(98) COUT1
(24) GND
(49) GND
(74) COUT9
(99) GATE1
(1)
(2)
(3)
(52)
(53)
(51)
(48)
(49)
(50)
(98)
(99)
(100)
(25) GND
(50) GND
(75) GATE9
(100) ECLK1

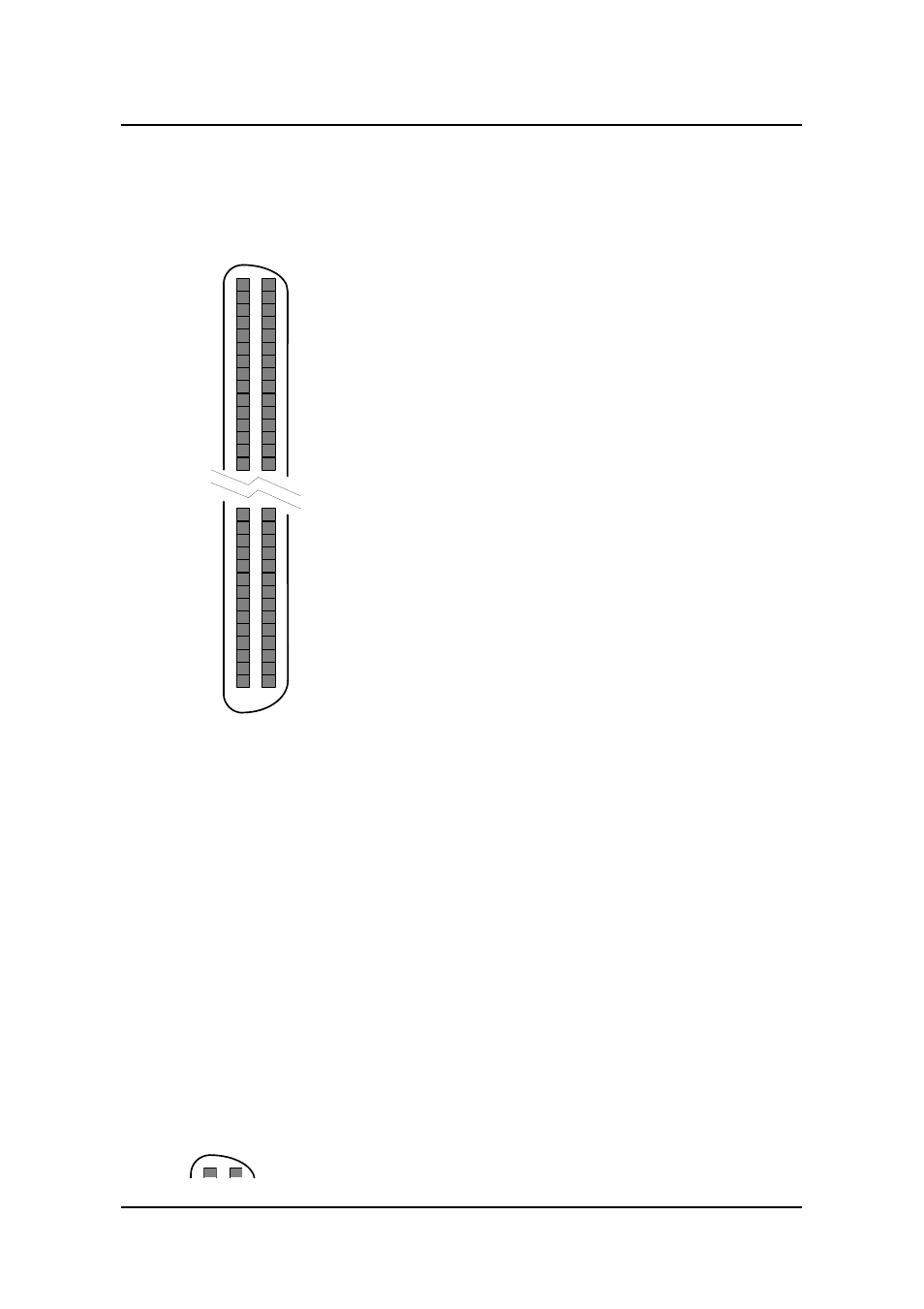

Figure 4: Pin Assignment of PCI-8554 Connector CN1
Legend:
ECLK n:
External clock source for counter #n
ExtG n:
External gate signal for counter #n
COUT n:
Counter / Timer output of counter #n
DO_m:
Digital output port channel #m
DI_ m:
Digital input port channel #m
E_int:
External interrupt signal input
GOUT1:
Inverse TTL signal of GIN1
GOUT2:
Inverse TTL signal of GIN2
NC:
No
Connection
