Getting Started •9

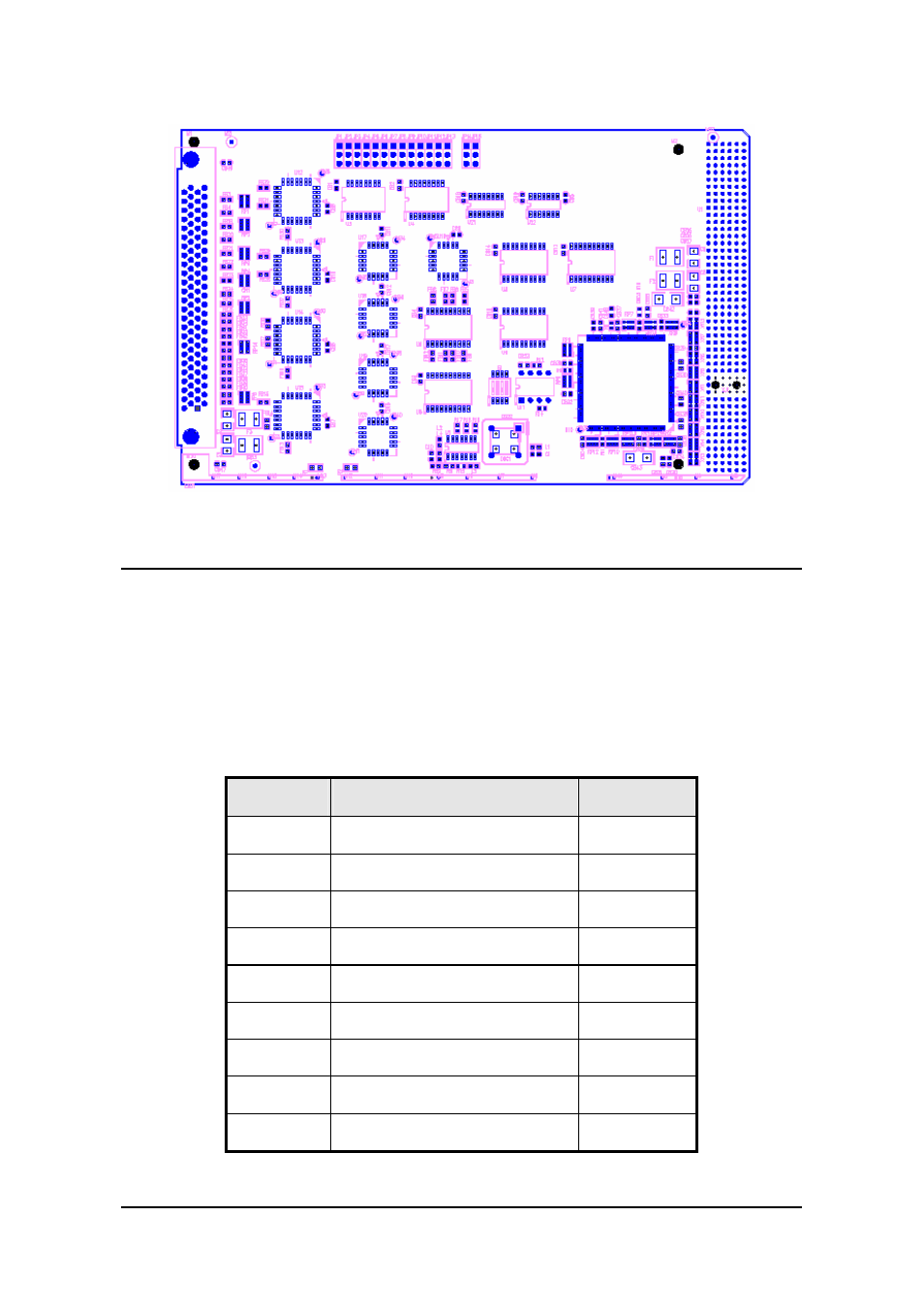

Figure 3: PCB Layout of cPCI-8554/R
2.4 Default Jumper Setting
To operate the cPCI/PCI-8554/R correctly, users need to understand the
structure of cPCI/PCI-8554/R and details of the possible configurations.
The functional block diagram of the cPCI/PCI-8554/R is shown in figure 1
of chapter 1. The following section lists the default jumper setting on the
cPCI/PCI-8554/R.
Items Default Configuration Set by
ECLK1 No Debounce function JP1
ECLK2 No Debounce function JP2
ECLK3 No Debounce function JP3
ECLK4 No Debounce function JP4
ECLK5 No Debounce function JP5
ECLK6 No Debounce function JP6
ECLK7 No Debounce function JP7
ECLK8 No Debounce function JP8
ECLK9 No Debounce function JP9
