C-BOX 200
2
2.4.2 Power
Supply
Power is supplied to the C-BOX 200 through the pins provided on the spring clamp
connector.

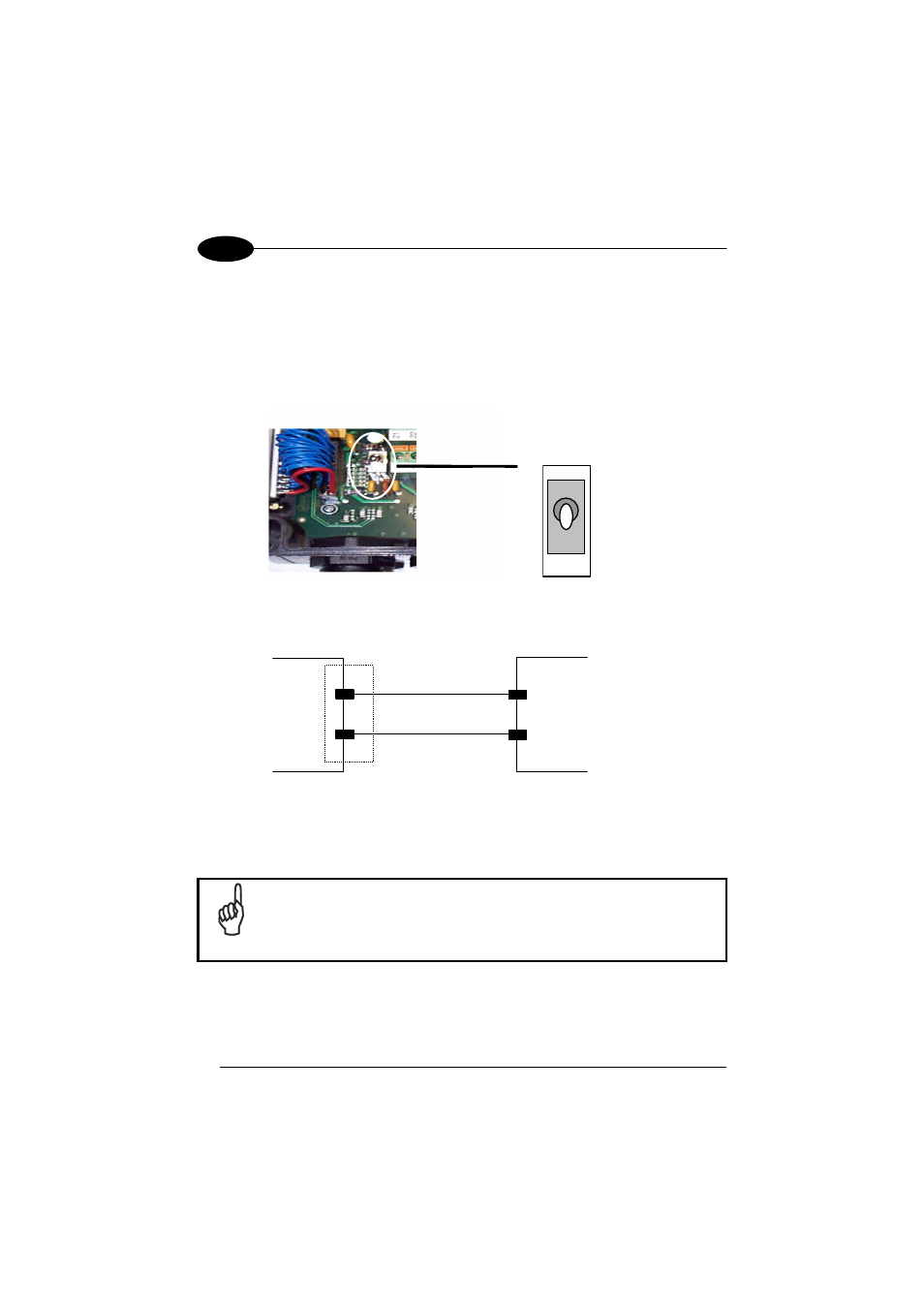

The power switch (see Figure 8) switches the power supply ON or OFF for both the
C-BOX 200 and the connected scanner.
ON
OFF
Figure 8 - Power Switch ON/OFF Positions
C-BOX
1
2
VS
GND
USER INTERFACE
GND
V+ (10 - 30 Vdc)
Figure 9 - Power Supply Connections
The power supply must be between 10 and 30 Vdc only.
NOTE
Pin 1 is also electrically connected to pins 3 and 5, just as pin 2 is
electrically connected to pins 4 and 6. This is useful for external
trigger/inputs connections.
