Profibus Communication Module (CME-PD01) Instruction Sheet

Profibus is a registered trademark of Profibus International.

Please thoroughly read and understand the following contents to ensure correct use before operation.

The content of this instruction sheet may be revised without prior notice. Please consult our distributors or

download the most updated version at http://www.delta.com.tw/industrialautomation

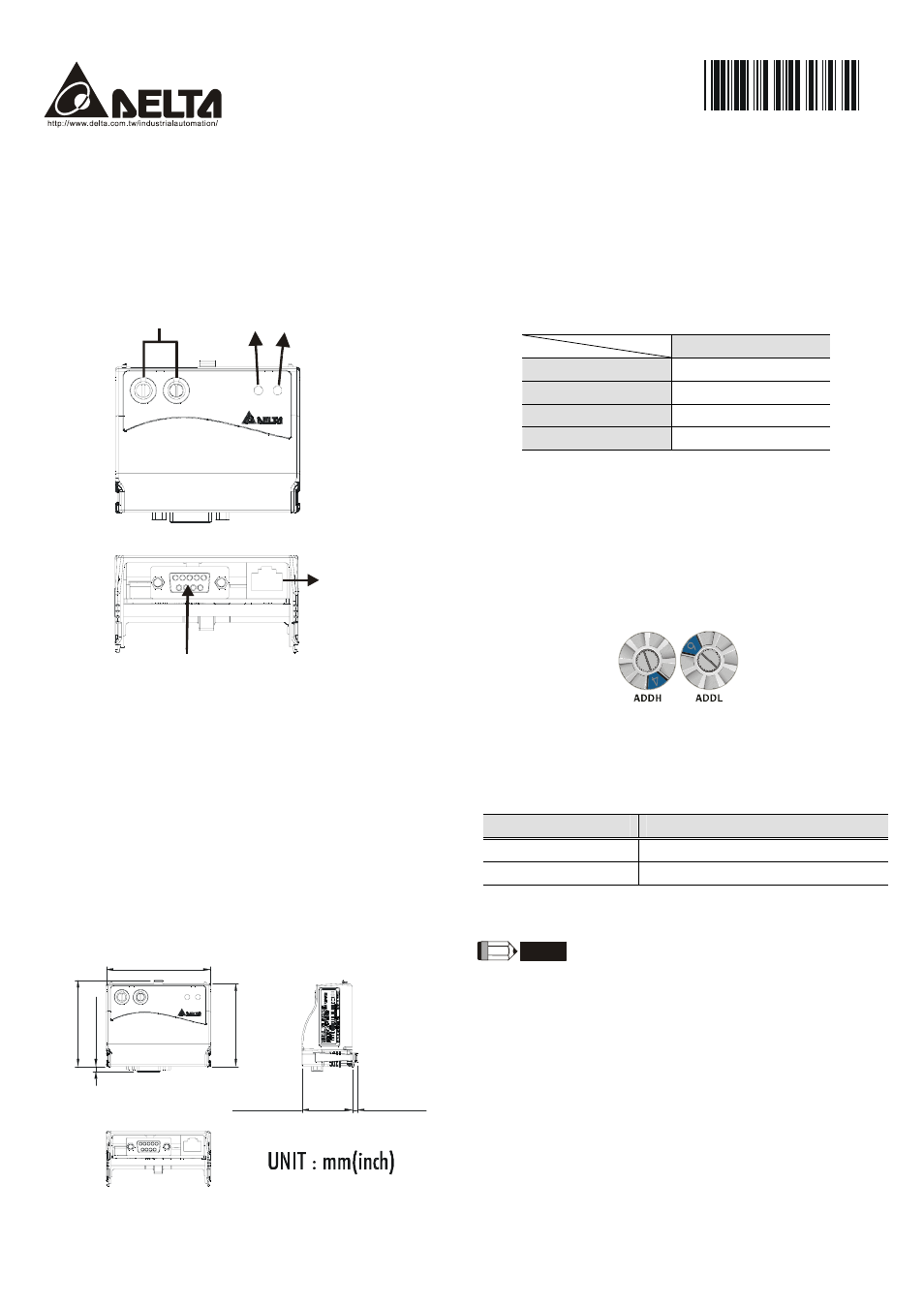

A. Panel

Appearance

1: Reserved

2: EV

5: SG+
6: Reserved

7: Reserved
8: Reserved

3: GND
4: SG-

Profibus-DP

Interface (DB9)

RS-485 (RJ45)

ADDH ADDL

NET

CME-P D01

SP LED

NET LED

Address Switches

1. SP LED: Indicating the connection status between

VFD-E and CME-PD01.

2. NET LED: Indicating the connection status between

CME-PD01 and PROFIBUS-DP.

3. Address Switches: Setting the address of

CME-PD01 on PROFIBUS-DP network.

4. RS-485 Interface (RJ45): Connecting to VFD-E, and

supply power to CME-PD01.

5. PROFIBUS-DP Interface (DB9): 9-PIN connector

that connects to PROFIBUS-DP network.

6. Extended Socket: 4-PIN socket that connects to

PROFIBUS-DP network.

B. Dimensions

72.2 [2.84]

3.5 [0.14]

34.8 [1.37]

ADDH ADDL

NET

CME-P B01

Parameters Setting in VFD-E

VFD-E

Baud Rate 9600

Pr.09.01=1

RTU 8, N, 2

Pr.09.04=3

Freq. Source

Pr.02.00=3

Command Source

Pr.02.01=3

D. Power

Supply

The power of CME-PD01 is supplied from VFD-E. Please
connect VFD-E to CME-PD01 by using 8 pins RJ-45 cable,
which is packed together with CME-PD01. After connection
is completed, CME-PD01 is powered whenever power is
applied to VFD-E.

E. PROFIBUS

Address

CME-PD01 has two rotary s select the PROFIBUS address.
The set value via 2 address switches, ADDH and ADDL, is
in HEX format. ADDH sets the upper 4 bits, and ADDL sets
the lower 4 bits of the PROFIBUS address.

Address

Meaning

1..0x7D

Valid PROFIBUS address

0 or 0x7E..0xFE

Invalid PROFIBUS address

NOTE

Please download the GSD file and user manual at
http://www.delta.com.tw/industrialautomation/
