Mechanical drawing (without heatsperader) – Delta Electronics Q48SP User Manual
Page 11
DS_Q48SP12017_05302008
11

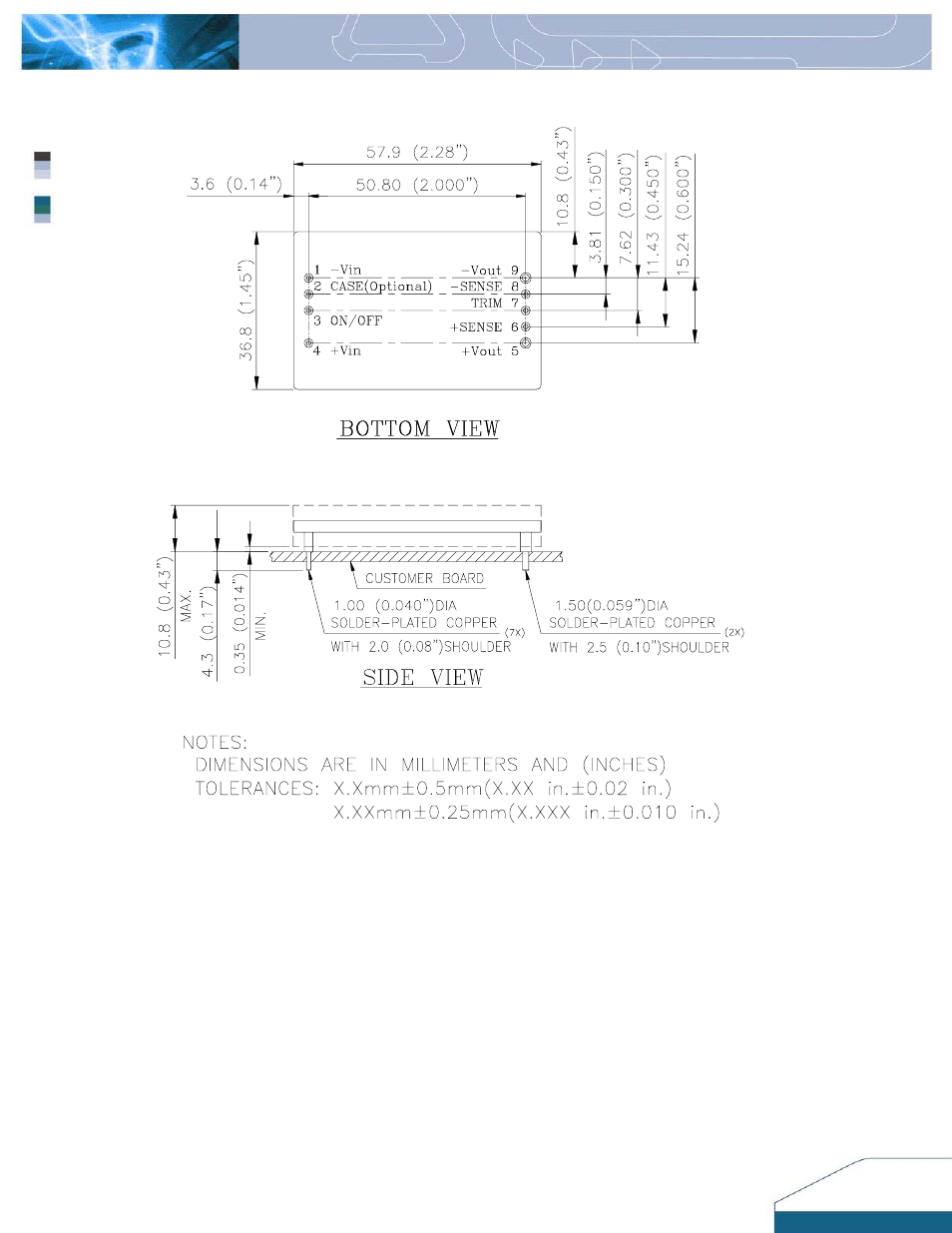

MECHANICAL DRAWING (WITHOUT HEATSPERADER)
Pin No. Name
Function
1
2
3
4
5
6
7
8
9
-Vin
CASE
ON/OFF
+Vin
+Vout
+SENSE
TRIM
-SENSE
-Vout
Negative input voltage
Case ground pin
Remote ON/OFF
Positive input voltage
Positive output voltage
Positive remote sense
Output voltage trim
Negative remote sense
Negative output voltage
Notes:
1
2
3
Pins 1-4, 6-8 are 1.00mm (0.040”) diameter
Pins 5 and 9 are 1.50mm (0.060”) diameter
All pins are copper with Tin plating
