Thermal considerations, Thermal curves, Thermal testing setup – Delta Electronics Q48SP User Manual

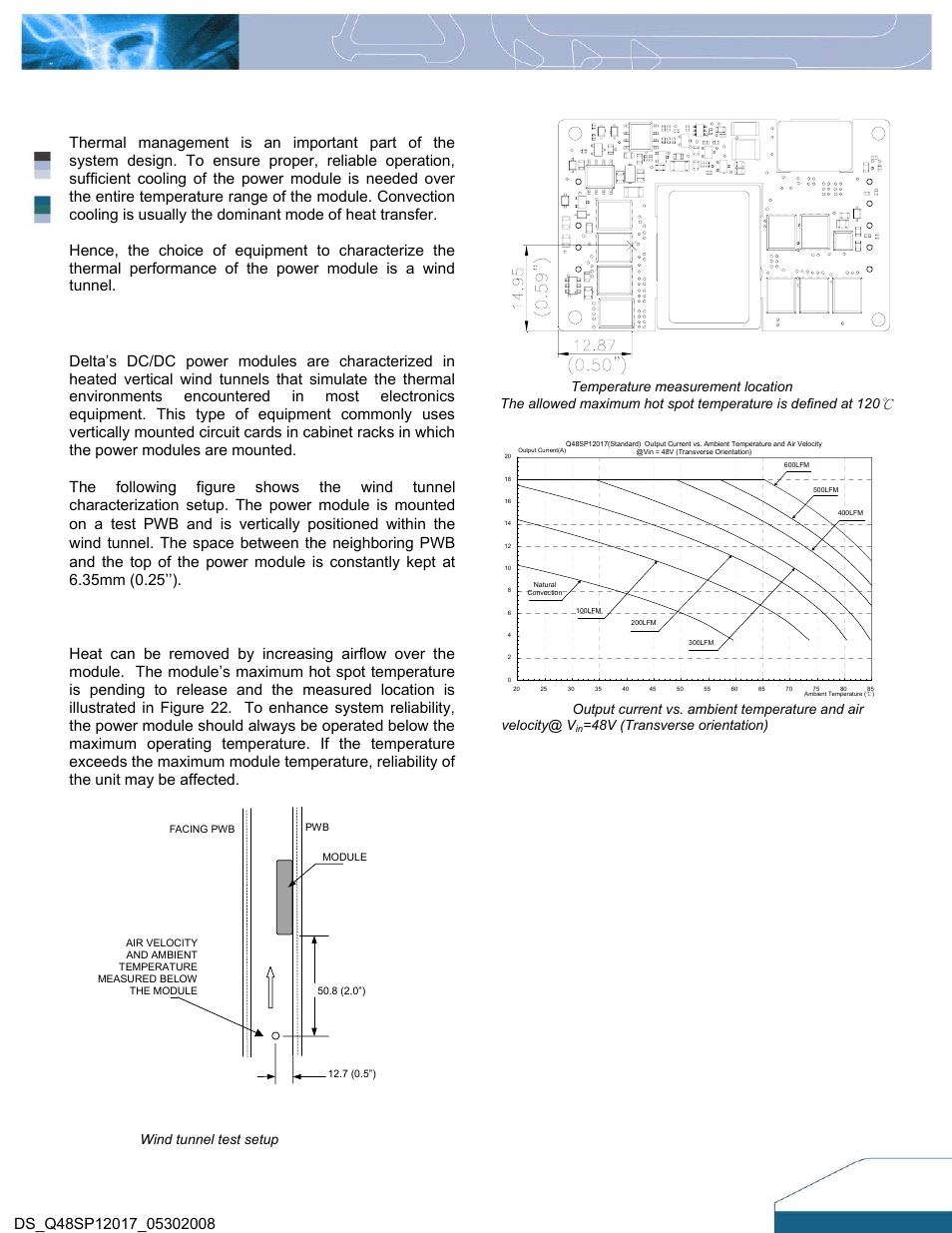

Page 10: Thermal derating, Figure 21: wind tunnel test setup, 48v (transverse orientation)
