2006 Seville Specifications Dimension One Spas
Specification, 2006, Seville Doc-1515 Rev - A Rev Date: 10/31/05
2006 Seville
Note: 1. Subject to change without notice.
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
Page 2 of 2
78 in [198cm]
Shell
See Caution
77 in [197cm]
Skirt
75 in [191cm]
Pedestal
Base
Control Panel
Spa Lip
Pedestal Base
Hose Bib/
Water Drain

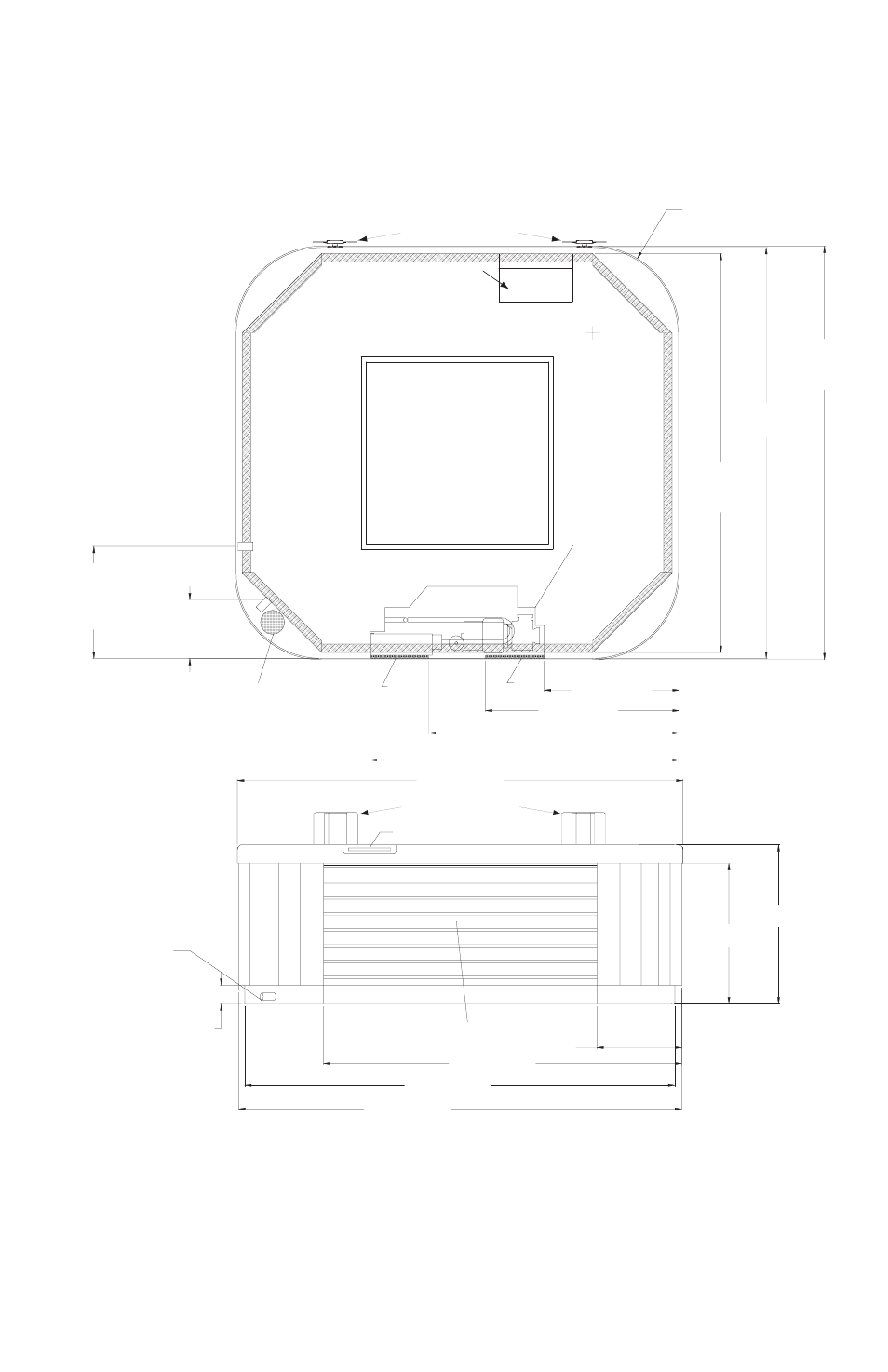

Top View of Spa Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
30 in [76cm]
27 in [67cm]
16 in [41cm]
68 in [171cm]
11 in [28cm]
Hose Bib/
Water Drain
21 in [54cm]
Recommended location for
Electrical
Inlet
25 in [65cm]
37 in [93cm]
47 in [120cm]
58 in [148cm]
84 in [212cm]
Door Extends
Under Spa Lip
Vent
Equipment
Compartment
Vent
Vent
R16 in [R42cm] Shell
81 in [206cm]
84 in [213cm]
3 1/2 in [9cm]
stereo speaker location
(optional)
stereo speaker location
(optional)
Front View of Spa Front View of Spa
Optional Wireless stereo
Sub-woofer location
(DOMESTIC ONLY)
