6 © 2003 directed electronics, inc.
integrated LED/Valet ® switch

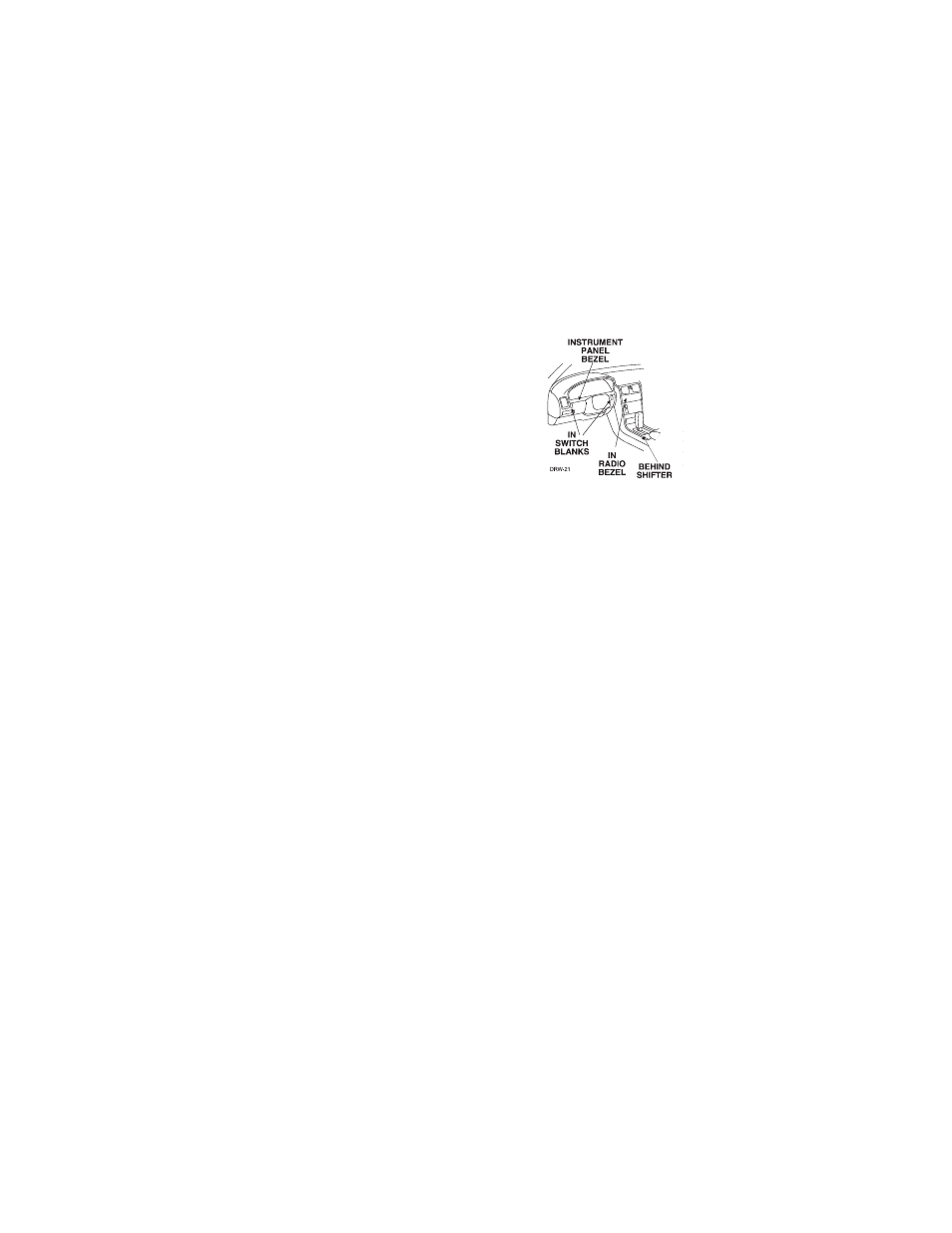

Things to remember when positioning the integrated LED/Valet ® switch:
• It should be visible from both sides and the
rear of the vehicle, if possible.
• It needs at least 1-1/2" clearance to the rear.
• It is easiest to use a small removable panel,
such as a switch blank or a dash bezel.
Remove it before drilling your 5/16" hole.
starter kill relay
If the Starter Kill Relay or it’s connections are immediately visible upon removal of the
underdash panel, they can easily be bypassed. Always make the relay and its con-
nections difficult to discern from the factory wiring! Exposed yellow butt connectors do
not look like factory parts, and will not fool anyone! For this reason, routing the starter
kill wires away from the steering column is recommended.
connecting your wires
Now that you have decided where each component will be located, you’re going to
find the wires in the car that the security system will be connected to.
IIM MPPO ORRTTA AN NTT!! Do not use a 12V test light to find these wires! All testing described in
this manual is described using a digital multimeter.
obtaining constant 12V
We recommend two possible sources for 12V constant: The (+) terminal of the battery,
or the constant supply to the ignition switch. Always install a fuse within 12 inches
of this connection.
