Directed Electronics AM1 User Manual
Page 15
© 2003 directed electronics, inc.
13
H1/6 BLUE (-) instant trigger:
This input will respond to a negative input with an
instant trigger. It is ideal for hood and trunk pins and will report on zone one.

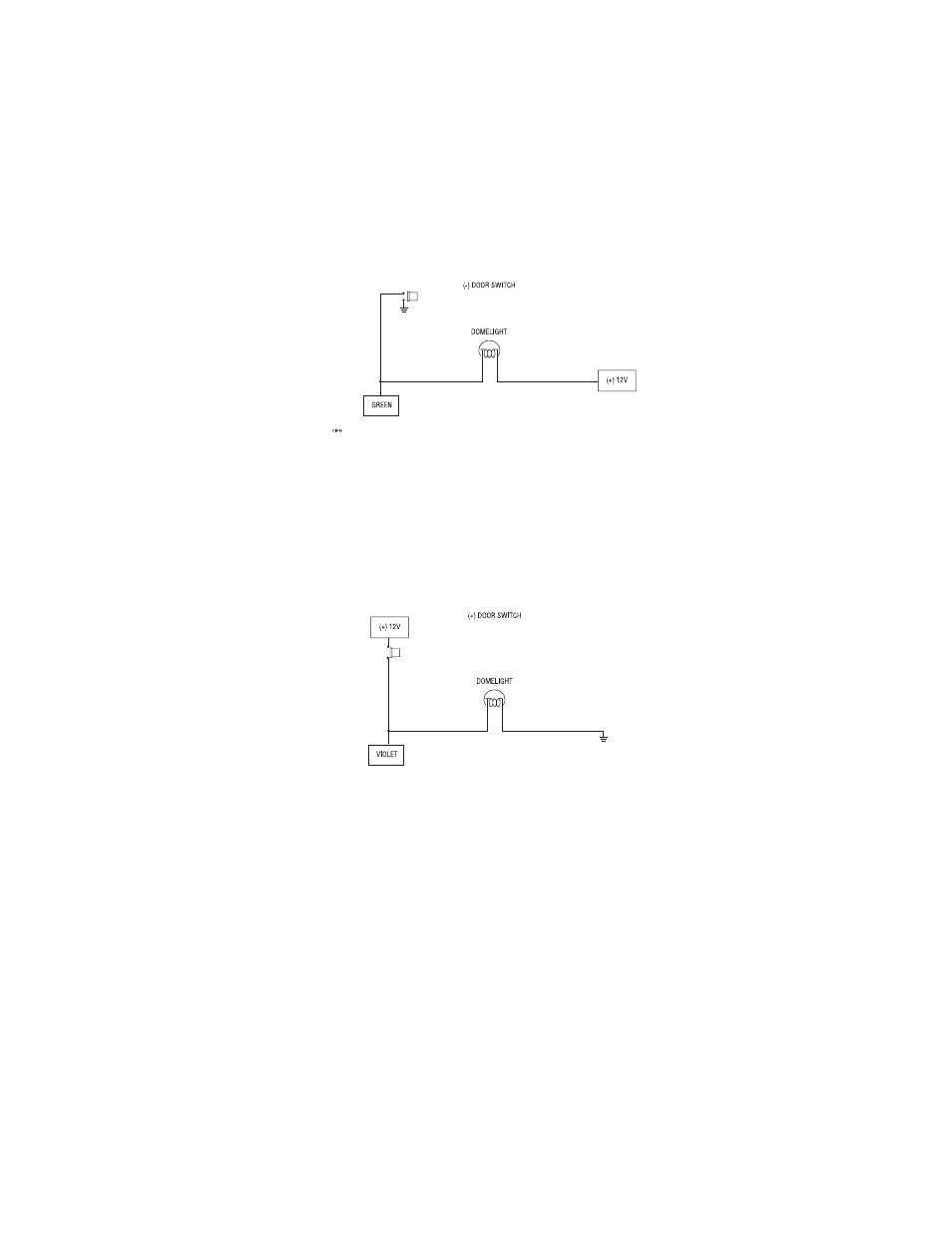

H1/7 VIOLET (+) door trigger input:
This wire is used in vehicles that have a positive
(+) switched dome light circuit . Connect the violet wire to a wire that shows (+)12V
when any door is opened, and ground when the door is closed.
H1/8 BLACK (-) chassis ground connection:
Connect this wire to bare metal, prefer-
ably with a factory bolt rather than your own screw. Screws tend to either strip or
loosen with time. All components, should be grounded to the same point in the vehi-
cle if possible.
