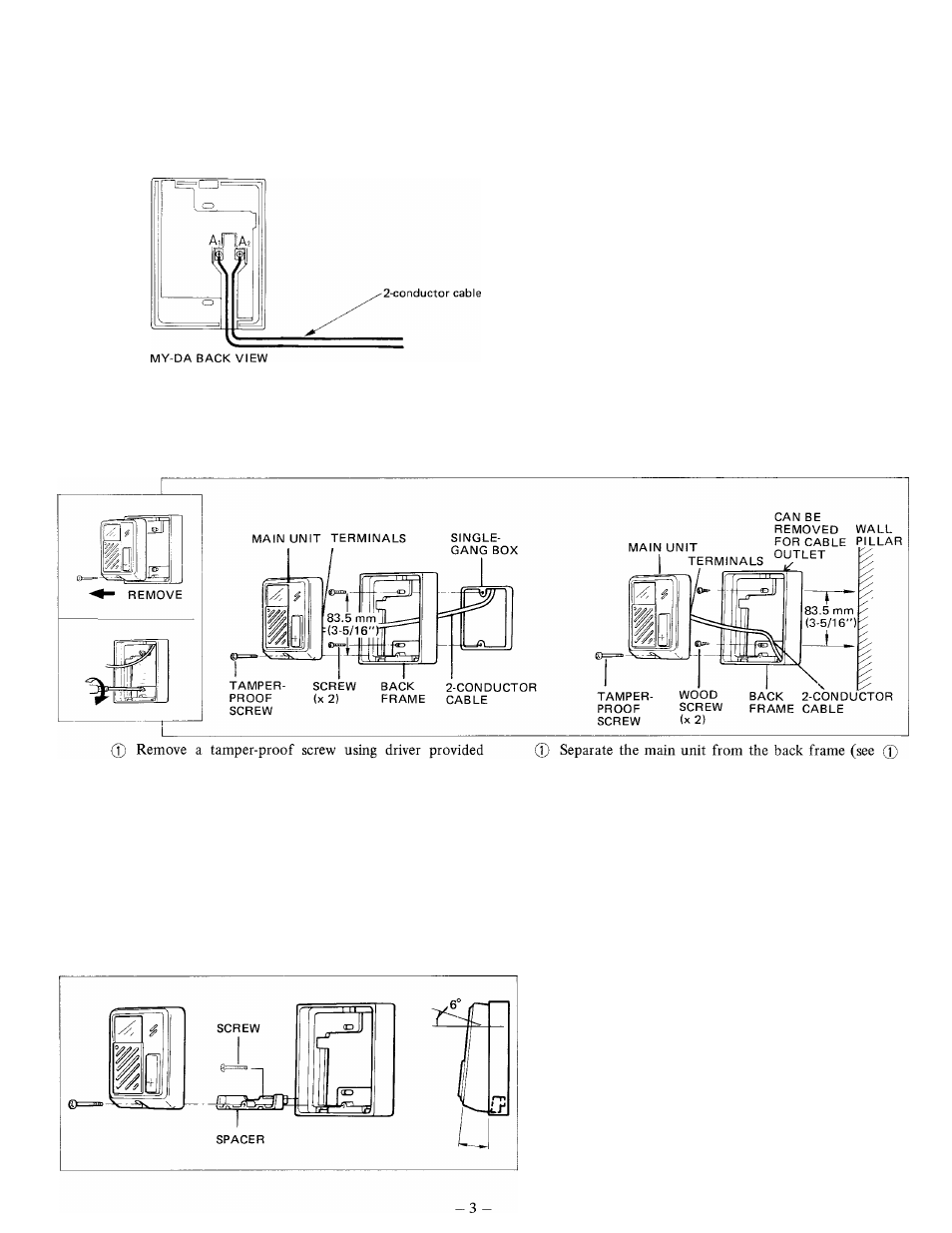

INSTALLATION
(1) ACTUAL TERMINAL LOCATION
A1 , A2 : connect to A1 , A2 terminals on
room master station (non-polarized).
(2) WALL MOUNTING
Mounting on single-gang box;
* Mounting to pillar/wood wall;
and separate the main unit from the back frame.
Attach the back frame to a single-gang box with two
screws supplied.
After wiring on terminals, reattach the main unit
to the back frame.
of the left instructions).
Pass the wires through the cable inlet at the bottom
right of the back frame.
Attach the back frame to wall or pillar.
After wiring connections are made, reattach the main
unit to the back frame.
NOTE: To pass the conductors through the top,
remove the outlet part.
(3) MOUNTING A SPACER
When replacing the existing audio only door station
with MY-DA, and the camera height is too low, the
use of a spacer is suggested.
The camera angle can be turned upward to an angle
of 6 degrees.
