Aiphone MY-DA - Manual (Page 2)

a
BEFORE YOU INSTALL AND OPERATE THE EQUIPMENT
— Prohibitions and precautions —
INSTALLATION
1. DO NOT CONNECT ANY TERMINAL TO AC POWER LINES.
When you mount MY-DA in place of existing bell or chime, be sure to disconnect
wires from the present transformer.
2. DO NOT OPEN THE MY-DA UNIT, WITHOUT FIRST REMOVING PLUG OF
POWER SUPPLY FROM AC OUTLET.
3. Do not drop or hit the MY-DA which may damage the CCD camera unit.
4. Avoid running the connecting wires through doors, windows or between furniture,
which may pinch and disconnect the wires.
5. Install with straight 2-conductor wire. Coaxial cable cannot be used.
WIRING
When surplus wire(s) exists in the cable between video door station and video monitor,
it is possible that the picture quality would be interfered with. In that case, we suggest
connecting a 120 ohm resistor at each end of surplus wire(s).
120 ohrU' ■120 ohm
Video
door station.
m-^
Video monitor
NEVER
I

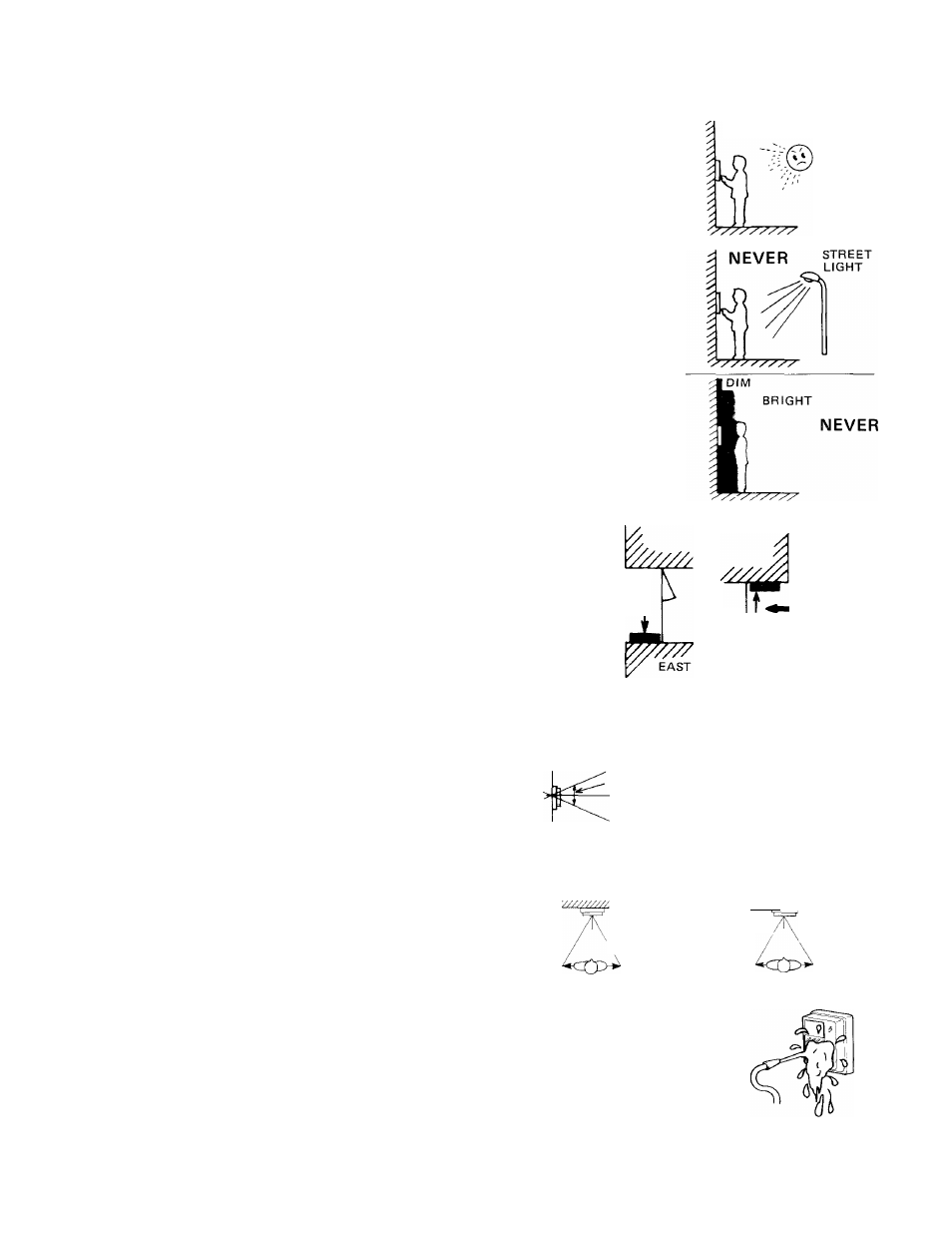

INSTALLATION LOCATION REQUIREMENTS
• Select the MY-DA installation location, observing the following
conditions.
1. Avoid installing the MY-DA in a location that would be
exposed to;
* direct sunlight,
*temperature/humidity extremes,
* water,
*oil,
*dust,
*iron dust,
* inflammable and chemical products, etc,,
or
* where the strong light source is behind the person standing
at the doorstation. The face will appear dark on the room
station monitor. This situation can occur when buildings
create shadows on entry areas.
*As shown, it is recommended that the MY-DA be installed
at an entrance not exposed to direct sunlight and with 200
to 300 lux secured on the object.
INSTALLATION HEIGHT
Taking the adults’ average height into consideration, decide a
most suitable height of MY-DA doorstation.
It is suggested that the center of a camera lens be installed at an
adults’ average height minus 10 cm (4").
* MAINTENANCE
1. Clean your MY-DA unit with a soft cloth dampened with
neutral household cleanser. Never use lacquer, thinner or
benzine, etc.
2. Do not splash water directly on unit.
- 2 -
WEST
NORTH
ENTRANCE
MY-DA
V \ ' I / y r '
iO-
SOUTH
NORTH
WEST
yj MY-DA
ENTRANCE
EAST
y
SOUTH
*ln new installation:
Approx. 500 mm
(19-11/16")
Average adults'
height minus
100 mm (4")
-------------
500 mm (19-11/16")
■¿//A
500 mm
\ (19-11/16")
Approx. 760 mm (29-15/16")
*When a spacer is installed:
Approx.
530 mm
(20-7/8")
Average adults'
height minus
100 mm (4")
500 mm (19-11/16")
/////////////////////z
“f
500 mm
(19-11/16")
1
Approx. 720 mm (28-5/16")
NEVER
