GH-1AD
Audio Only Tenant Station for GH Series

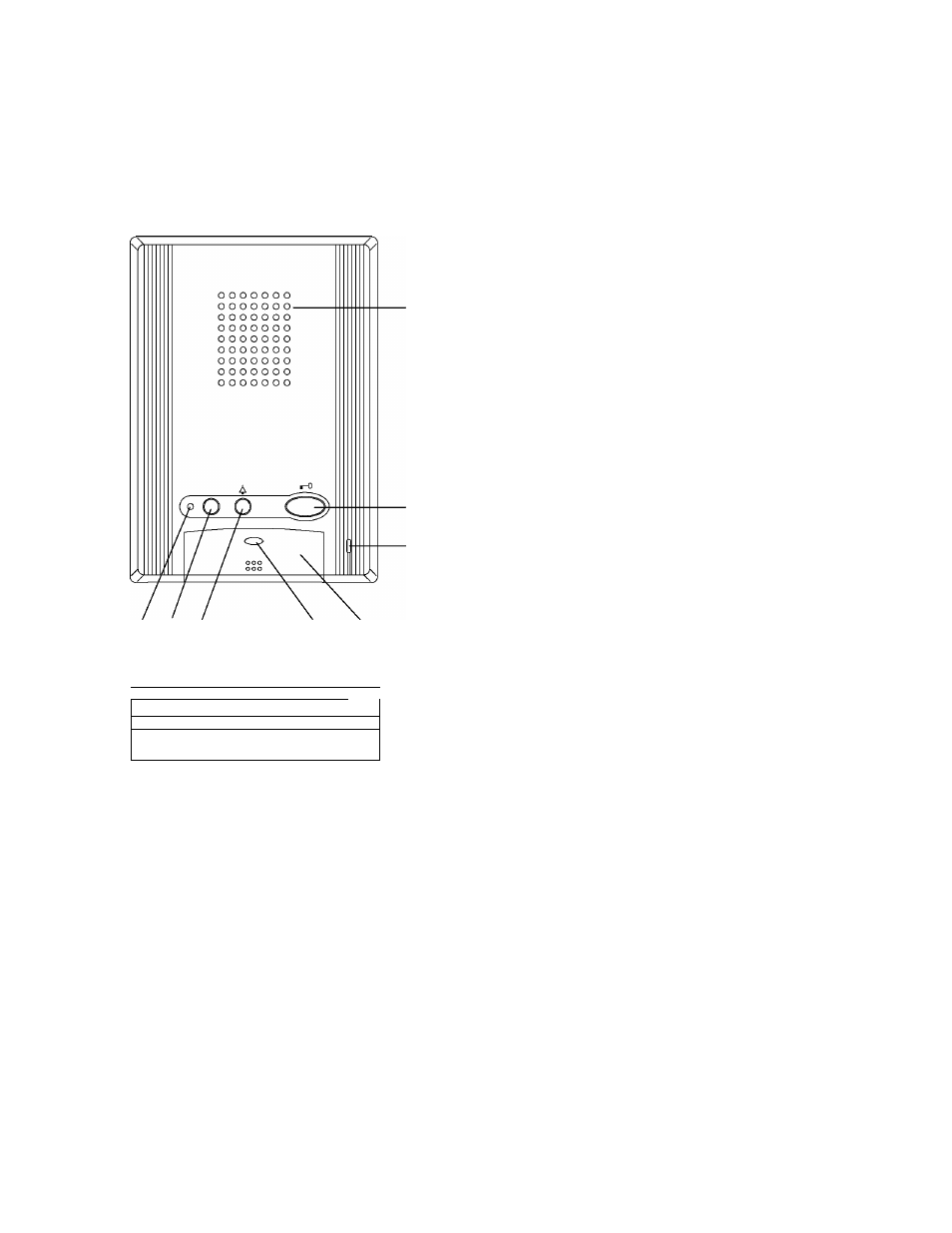

FEATURE CALL-OUTS:
[1]
[3]
[2]
[8] [6] [5]
[7]
[4]
/ \
--------------------------------------------------^—
—\
a □ □□
___
/
[10] [9]
FEATURE CALL-OUT DEFINITIONS:
[1] Speaker
[2] Microphone
[3] Door release button
[4] Talk button
[5] Light button / Security guard station call button
[6] Service button (option)
The service button is standard equipment with the
GH-1AD-SB.
[7] Talk LED
[8] Call tone off LED
[9] Receive volume control
[10] Call tone volume control
SPECIFICATIONS:
Power Source:
Supplied by system
Call:
Varying ring tones from entrance
panel, concierge, or doorbell
Hands-free (VOX) after TALK button
is pressed once, or push-to-talk
Max. 4 tenant stations per resident
location
2-conductor, PE insulation, common
bus
Aiphone #87200250C, 2 cond. PE
insulated, non-shielded, 11.05 pf/ft
GH-BC to farthest Tenant (Audio
line): 980' with 20AWG
Single channel with privacy
32 - 104° F (0 ~ 40° C)
Dimensions (HxWxD):
6-7/8" x 4-15/16" x 1-1/4"
(175 x 125 x 32 mm)
Weight:
0.7 lbs (330g)
Communication:
Capacity:
Wiring:
Wire:
Wiring Distance:
Talk Path:
Operating Temp:
GH-1AD Spec Sheet
0709 Pg. 2
