Auto-scanning - 60-minute handsfree audio-visual monitoring of MY door stations, skipping TB-SE
and lE/IF audio door stations.

★ With a duration of 10, 20 or 30 seconds, view image of MY door station in succession from top to

bottom of TB-M switch bank, guided by a flashing of cail-in LED.

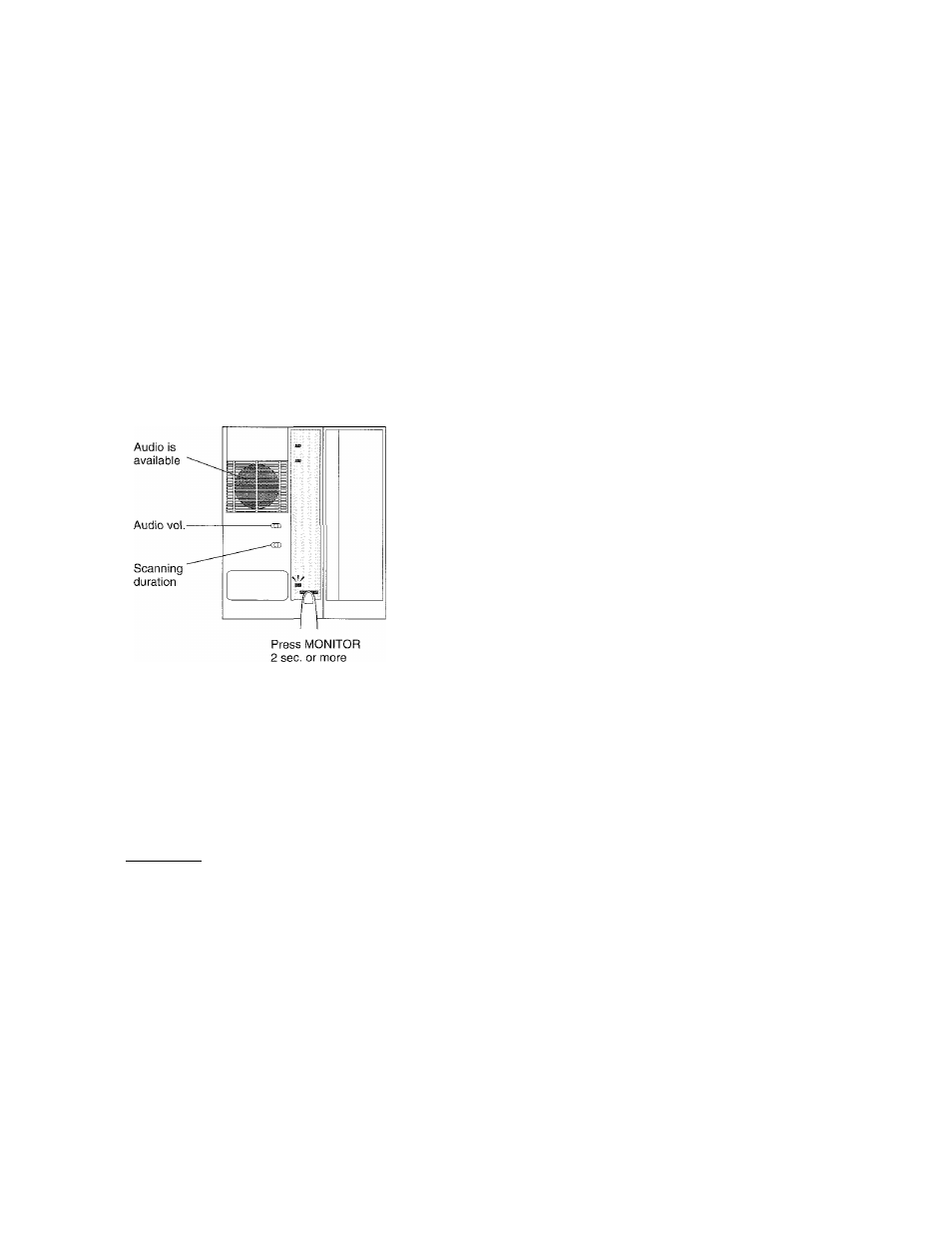

1. Press MONITOR button on TB-ADM10 for 2 seo. or more.

2. The attached LED turns on flashing. Image of MY door 1 comes on on Monitor TV (and MYH-CU).

Audio is available from TB-ADM10.

3. After preset seconds, image of next door comes on, which will be stabilized In 2 seconds.
4. MYH-CU video monitor auto-turns off in 2-1/2 minutes.
5. To continue, view only on Monitor TV. Do not press any Monitor button. TB-ADM10 makes next

rounds of scanning.

6. To conclude, press MONITOR button on TB-ADM10.

OR Auto-cancels after 60 minutes. Restart from 1.

Receiving an MY door caii during auto

scanning

1. Intermittent tremolo sounds from

TB-M speaker.

2. Pick up TB-M handset, and press an

LED-lit button.

3. Image of a calling MY comes on.

Communicate.

4. Hang up handset to conclude.
5. Press MONITOR button on TB-ADM10

for 2 sec. or more to restart from MY1.

Auto skips lE/IF
Series and TB-SE

★ Auto-scannning is terminated by lifting handset on TB-M.

It instantly establishes talk channel to an LED-lit MY door station.

Calling is void from the MY just being scanned.

Presetting MY door camera angie

Any PanTilt MY door stations, except MY-DC, MY-DG, can change its initial center position to a

desired camera angle, so that it turns back at each start/end of operation.

To preset: - ★ Do not pick up TB-M handset.

1. Press a desginated button of MY door on TB-M. See the call-in LED is lit.

2. Hold down BACKLIGHT button and press MONITOR once on MYH-CU.

Keep holding down BACKLIGHT. In about 5 seconds,

3. See MYH-CU screen bottom (1/4) starts flashing. Release from BACKLIGHT.

It's ready to preset (or BACKLIGHT to cancel).

4. Pan/tilt the camera to direct its angle to a standing point.
5. Lastly, press MONITOR button.

★ When an entire system is powered off, the preset memory can be

erased. Reprogram.

Adjustments

•

Audio monitor voiume from TB-ADM10 speaker, adjustable or muted, while visual monitoring or
auto-scanning.

•

Auto-scanning duration: Set to either 10, 20 or 30 second from left.
