G AIPHONE
TB-M Series
INTERNAL TELEPHONE SYSTEM
Models:
TB-10M
TB-20M
INSTALLATION & OPERATION MANUAL
CONTENTS
2 NAMES & FEATURES................................................................................................................................... 2
3 PRECAUTIONS ON INSTALLATION & WIRING........................................................................................... 3
4 WIRING.......................................................................................................................................................... 4
5 MOUNTING.................................................................................................................................................... 9
6 OPERATIONS.............................................................................................................................................. 10
7 TECHNICAL PRECAUTIONS..................................................................................................................... 11
8 SPECIFICATIONS........................................................................................................................................12
1
SYSTEM OUTLINE & COMPONENTS

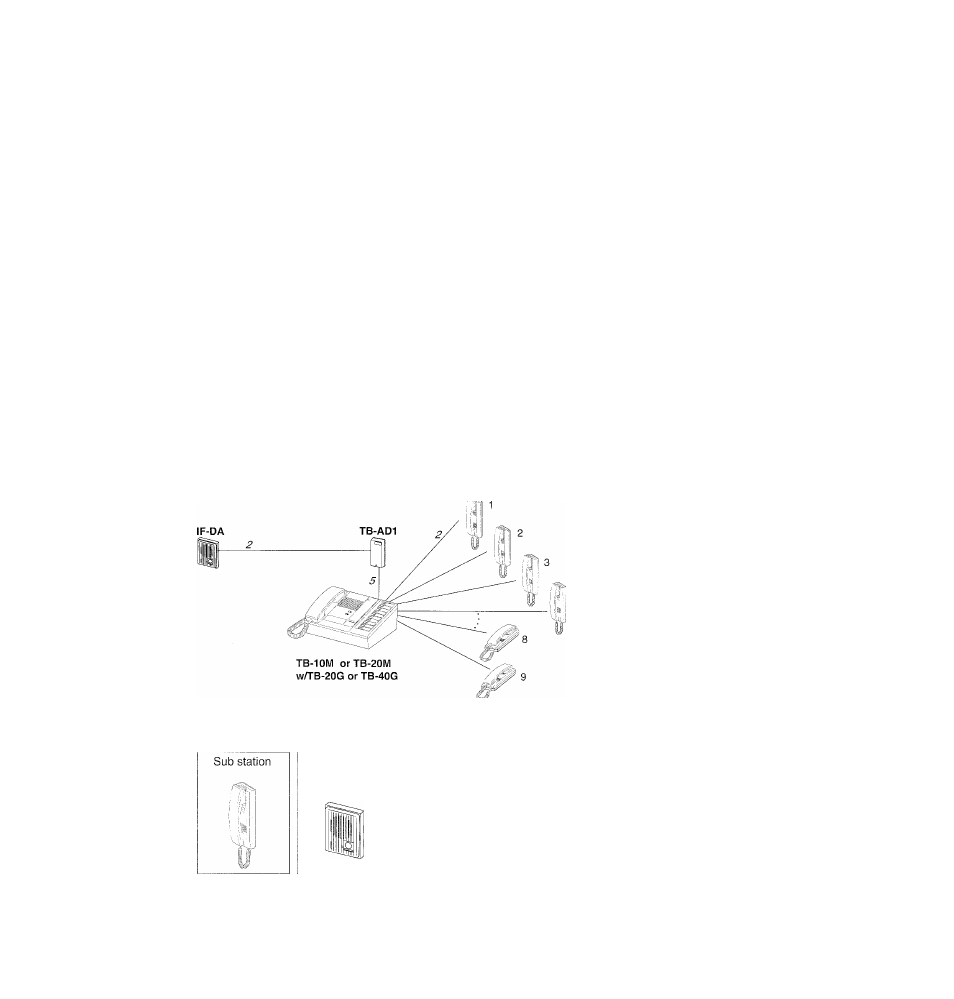

System outline
The TB-M is an internal telephone type system, expandable up to 60 subs and 2 masters.
Communicates with TB-SE handset subs and lE/IF door stations.
Package contents
© Master station (TB-1OM or TB-20M)
@ Directory card & cover
© Screws-pack (2 types, ea. 4 pcs)
@ Wail-mount cradle
® Installation & Operation Manual
Components available
TB-SE
IF-DA, etc.
TB-AD1
TB-AD10
TB-20G
TB-40G
lE/IF Series
door station
1-call door
station adaptor
(up to 3)
10-call door
station adaptor
20-call add-on
selector
40-call add-on
selector
TB-M components: TB-10M, TB-20M, TB-20G, TB-40G, TB-AD1 and TB-ADIOare NOT compatible with TB-10T and TB-20T.
TB-RC sub can be used with TB-M.
