WIRING
Terminals block layout
IA22A23A24A25A26A27A28A29A2IOA2UI U
2
B
1
B
2
@ © © © © © © © © 0 ® © © ©
D C I 8V
1
A
i
2
A
i
3
A
i
4
A
i
5
A
i
6
A
i
7
A
i
8
A
i
9
A
i
10
A
i
b b N
1
N
2
H-------------------------
© © © © © © © © © © © © © © © ©
10 pairs of A1, A2
terminals for PanTilt
door stations
★ Do not cross wires with
other door stations'.
Terminal symbols
1. Door station audio, video & PanTilt signals
1A1, 1A2 (door 1) ~ 10A1, 10A2 (door 10)
2. For MYH-CU monitor
+, -
: 18V DC power supply
U1,U2
; control
B1,B2
: Video output
3. For external device
b, b : Control of Time-Lapse VCR
(to its control terminal)
Coaxial cable connector to video input on
Monitor TV
N1,N2
: unused
TB-M entry call system
TB-M is capable of connecting only one entry call adaptor, audio or video. So, it is not possible to use
TB-AD1 or TB-AD10 adaptors together with TB-ADM10 within a system.
Video monitor capacity
Only one MYH-CU video monitor can be mounted along with TB-M console.
Cable
Using cable must be a parallel cable for each door station. Do not use multi-pair cable.
Connecting TB-ADM10 to TB-M or TB-G add-on selector
TB-ADM 10 is equipped with two junction cables of 100cm long. Plug in connectors to inside sockets,
which are located on PC board of TB-M & TB-G. It decides automatically a select switch bank for door
stations.
★ When TB-ADM10 is plugged to TB-M or TB-G, the terminals of corresponding switch banks can
not be used for TB-SE subs.

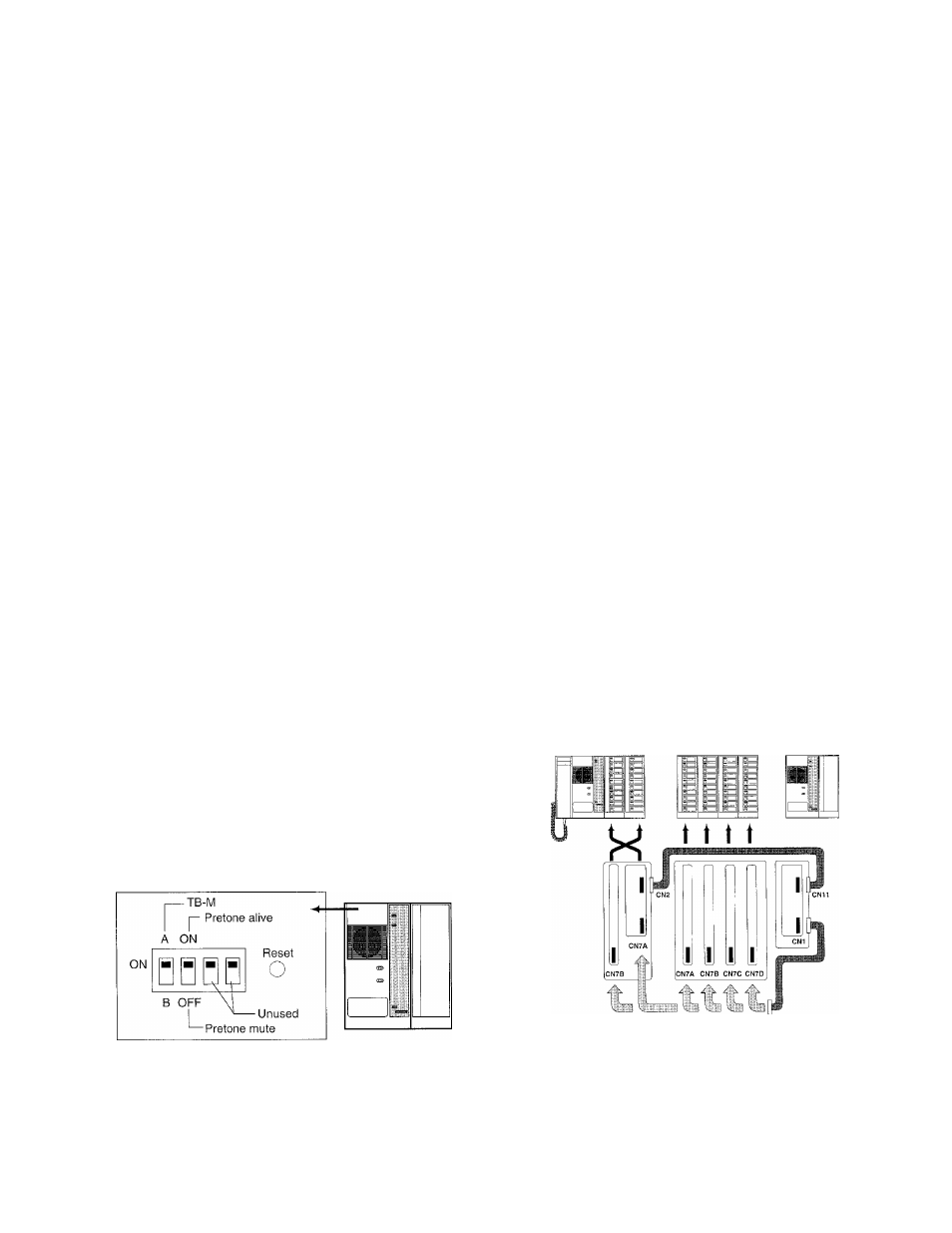

Pre-tone on/off setting
Remove a cover on top left of TB-ADM 10. Do
not change A setting, which is preset for TB-M.
The second switch when put to above ON
position, validates pre-tone, which sounds at
door station (any), upon selected by TB-M.
Reset switch
When TB-ADM10 malfunctions, press Reset
switch.
TB-ADM10
Junction cable alignment
TB-20M (TB-10M) TB-40G (TB-20G) TB-ADM10
-
3
-
