SYSTEM OUTLINE & COMPONENTS
CCS-1A “Chime Com 2” is a set with a door station & an inside room station, powered by an AC transformer. Second room
station CC-1M can be added with a separate AC transformer.
ADDITION
li
*1 CC-DA
2
I
IJi
CZD
IIIIUIII
CC-1M
Package Contents
CCS-1 A ‘CC-1 M
• CC-DA
• Packet of screws
• installation & Operation manual
CC-IM *CC-1M
• Packet of screws
• Installation & Operation manual
■ Components available
CCS-1 A: Set of CC-DA door station & CC-1M inside room station.
CC-1M: Second room station.
1^: AC transformer. PT-1210N or 12-16V AC, 10VA (with no-load voltage ratings: 20V or less).
/4\ WARNING: - If an AC transformer rated more than 20V no-load voltage, is connected,
DANGER
it can damage the CC-1 M units or cause fire. Aiphone is not responsible for any loss or
damage incurred.

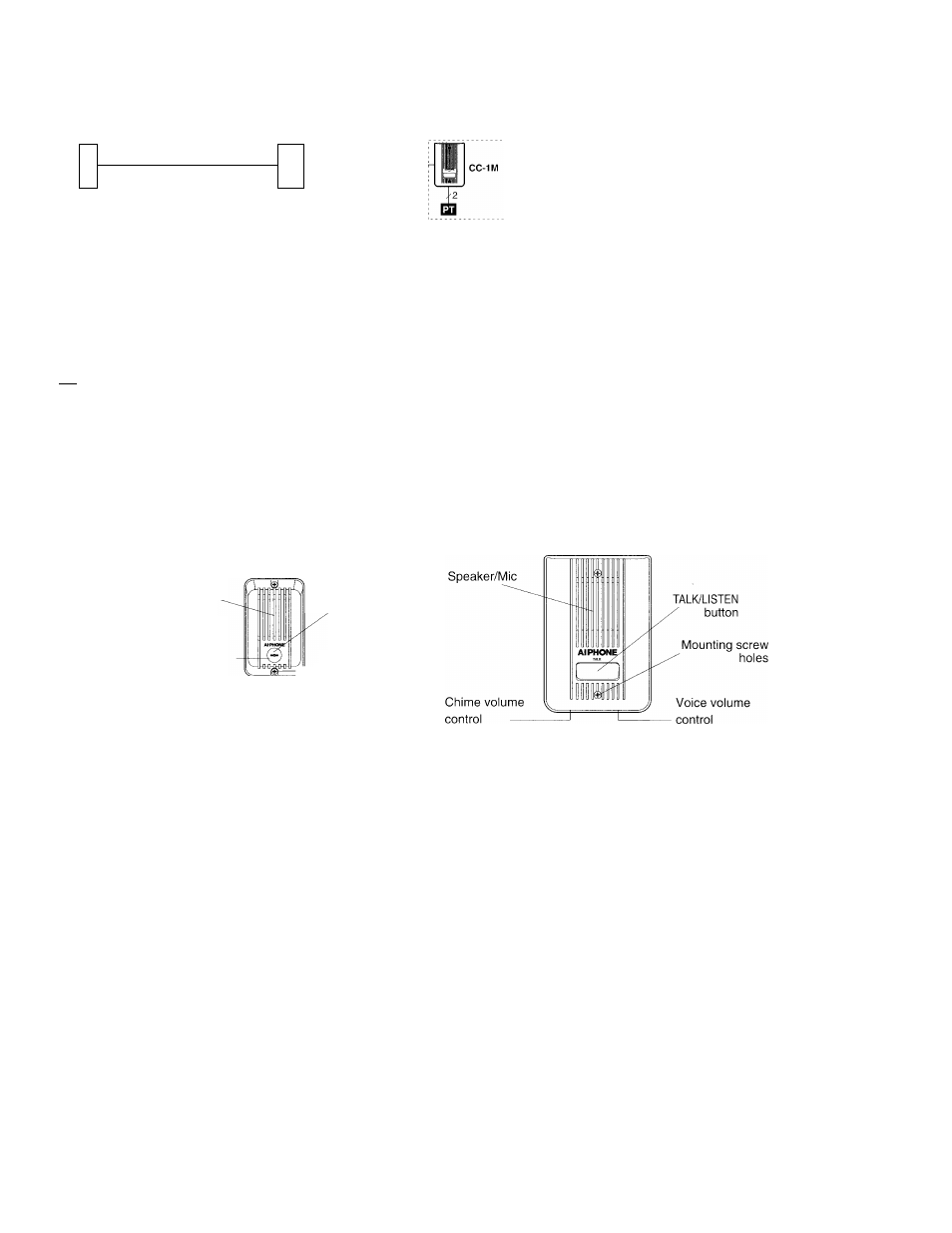

NAMES & FEATURES
CC-1M
Speaker/Mic
Call button
CC-DA
Illuminator
Mounting screw
-J—
holes
I Features
Press-to-talk door answering with auto shut off timer
2-tone electronic chime call-in
Second inside room station. (Separate power supply required)
Backlit CALL button
CHIME and VOICE volume controls
-2
