CCOMPONENTS AVAILABLE FOR USE WITH YOUR viDEO INTERCOM SYSTEM)
EL-9S, Electric door release.
t«-
|rvk-. ,1'."
MA-D, Door station with camera,
illumination lamp & beam sensor.
MA-DC, Door station with camera &
beam censor, but without illumination
lamp.
MA-IA, Room station with video
monitor, and door release button.
PS-24M, Power supply adaptor,
DC-24V, 1.5A.
MAW-B, Relay box for additional
light.
1
■
r
IBR-1, Extension chime call speaker.
MAW-J, Flush mounting back box.
MAW-R. Surface mounting box for door
stations MA-D and MA-DC.
MAW-R A, Surface mounting box for room
station MA-1 A.
(
installation
)
Do not attempt to install your intercom system until you have read and thoroughly understood the installation procedure.
Aiphone’s warranty is void if system is installed in a manner other than described in this manual.

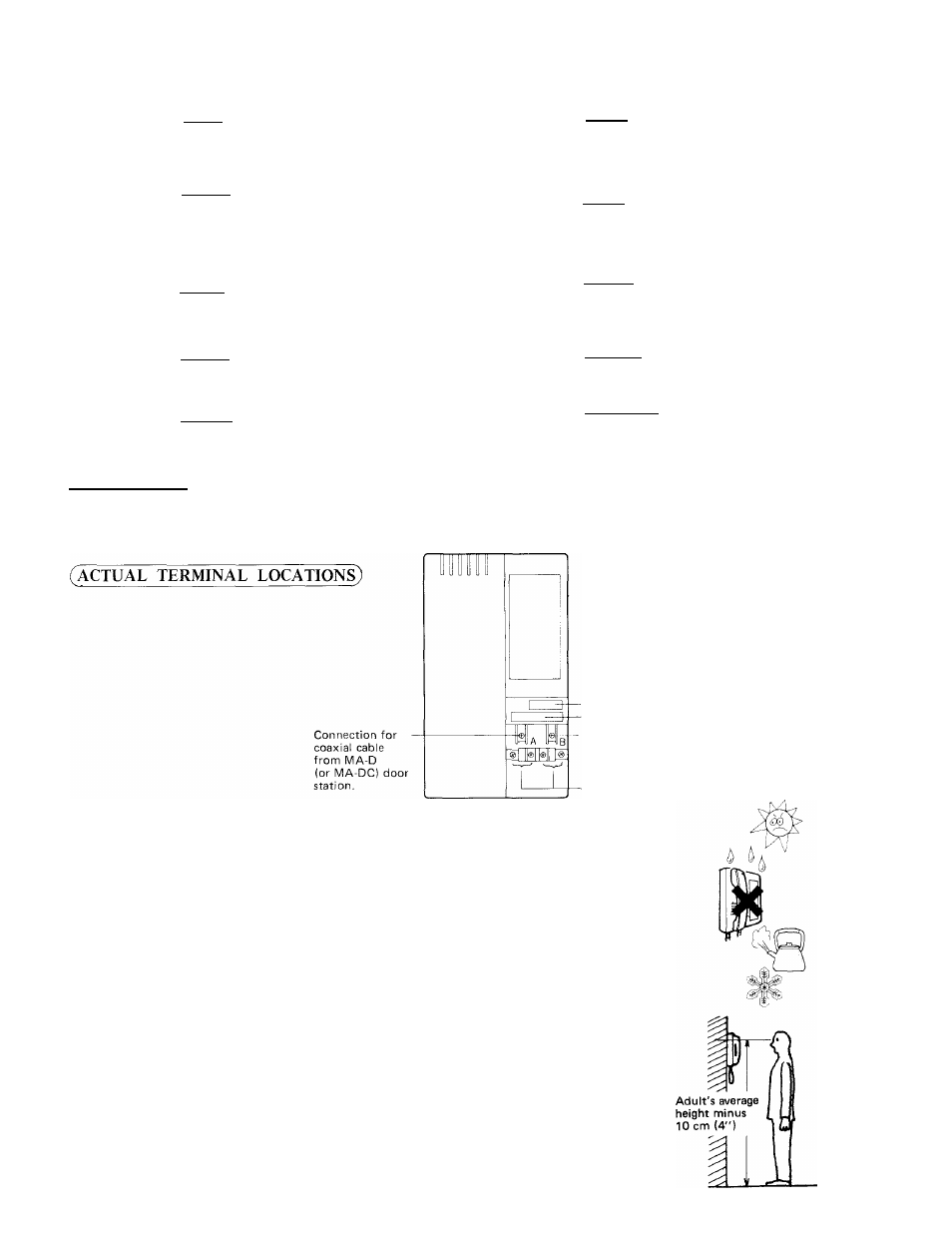

MA-IA:
8P connector
Clamp for coaxial cable
(
installation location requirement
^
* Avoid to install MA-IA room station in a place where it is exposed to direct sun light,
air conditioner heat, frost, vapor, water, dust chemicals or iron dust, etc..
* Determine MA-IA installation height so that the center of the video monitor would be
at the standard eye level: adults’ average height minus 10 cm (4").
