EXPLANATION OF PARAMETRIC EQ AND OUR CONTROLS
A Parametric Equalizer consists of several filter sections connected together
each capable of continuous and independent adjustment of:
(1) AMPLITUDE,
(2) CENTER FREQUENCY,
and (3) BANDWIDTH.

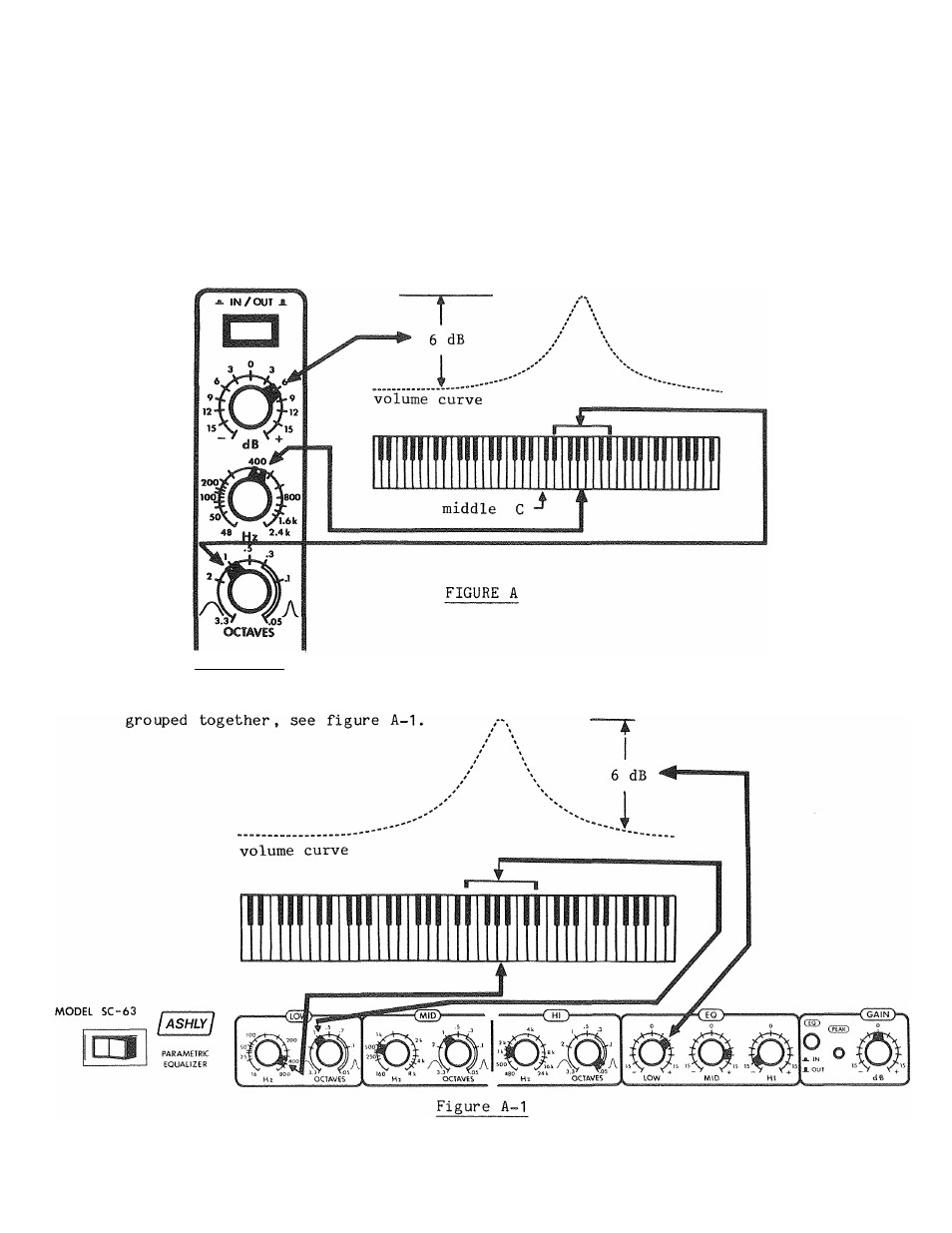

On the SC-66A, these controls are mounted vertically below individual in/out
switches, see figure A.
V LOW-MID K
On the SC-63t these controls are mounted horizontally with center frequency
and bandwidth controls grouped together and amplitude controls for three bands
