SHELVING
Describes an equalization action where all frequencies above or below a
particular frequency are boost or cut.
TRANSIENT
A sudden burst of energy in an audio signal, such as a breath blast in a
microphone, the sound of a snare drum, or a deep scratch in a record.
Transients frequently reach peak levels of 10 to 30 dB above standard
operating level, and may cause distortion or even damage to equipment.
UNITY GAIN
Output level Input level.
WIRING, PHONE PLUG AND XLR
A stereo phone plug is wired + to the tip,
the sleeve. For a mono phone plug, combine
to the sleeve. - to the ring, and shield to
and shield, and connect both
An XLR (3 Pin) connector is wired
pin 1. to pin 3, - to pin 2, and shield to

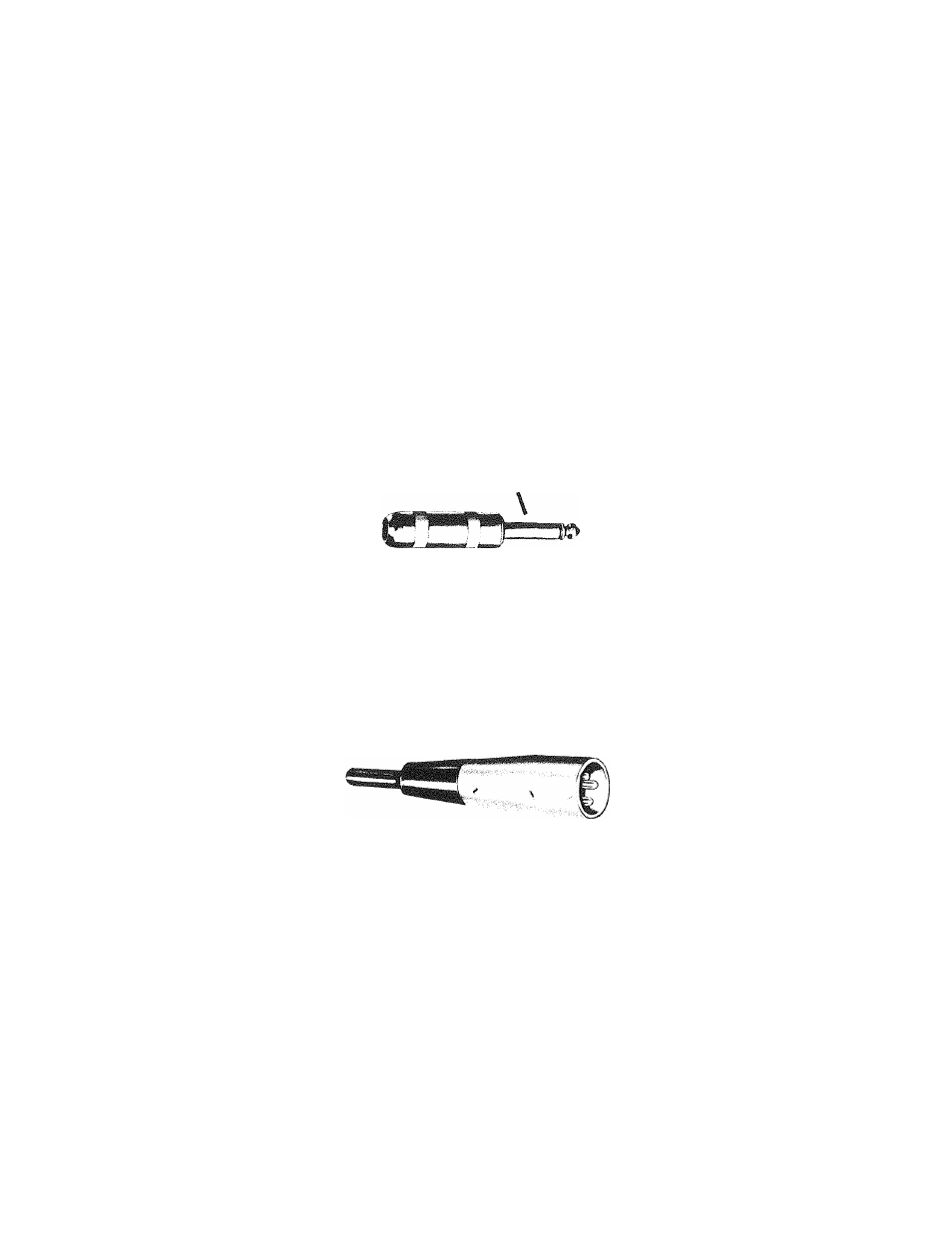

Mono Phone Plug:
(for unbalanced
inputs and outputs)
Sleeve
■Tip
Stereo Phone Plug ;
(for balanced in­
puts and outputs)
Sleeve
\
Ring
.Tip
XLR Type Connector:
(Male Shown)
17
