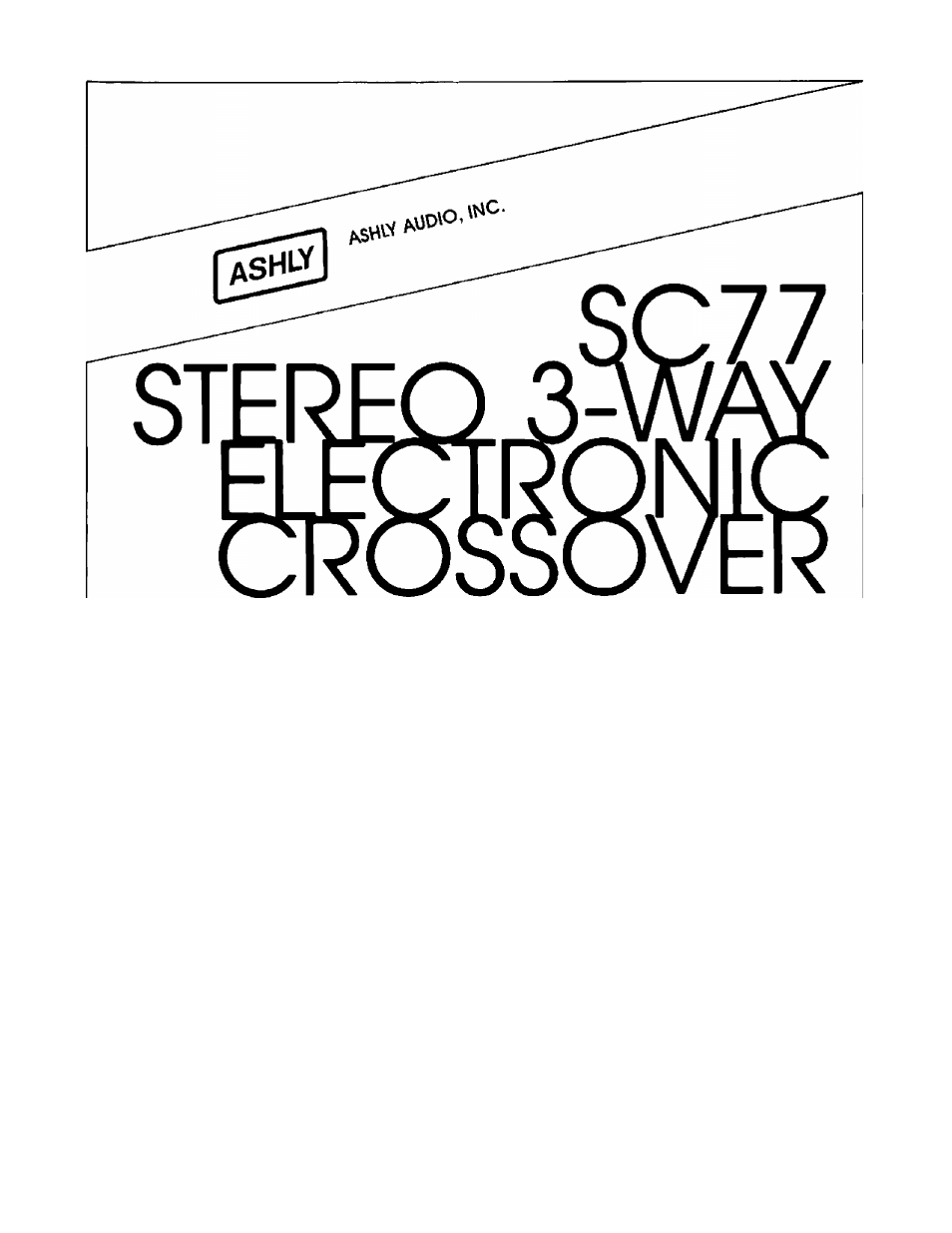

Ashly SC77 User Manual
Ashly Receivers and Amplifiers
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
![background image](/manuals/723891/1/background.png)
The SC-77 Stereo Three-Way Electronic Cross
over is designed to fill the needs of modem high
power sound systems, Crossover points and
rolloff ore continuously adjustable and individ
ual output stages with wide range gain adjust
ments will drive long cable runs and accurately
match any power amplifiers.
FEATURES:
• 12 dB per octave slopes
• Logical control layout
• Both the inputs and outputs can be used
balanced or unbalanced
• Flat summing
• Rugged 16 gauge steel chassis
• Peak overlaod warning lights
• In-phase outputs
• Our exclusive rolloff control to flatten
frequency response at the crossover point
• Optional 5-way mono operation
