GHV-DES/A
Video Entrance Station with Digital Directory

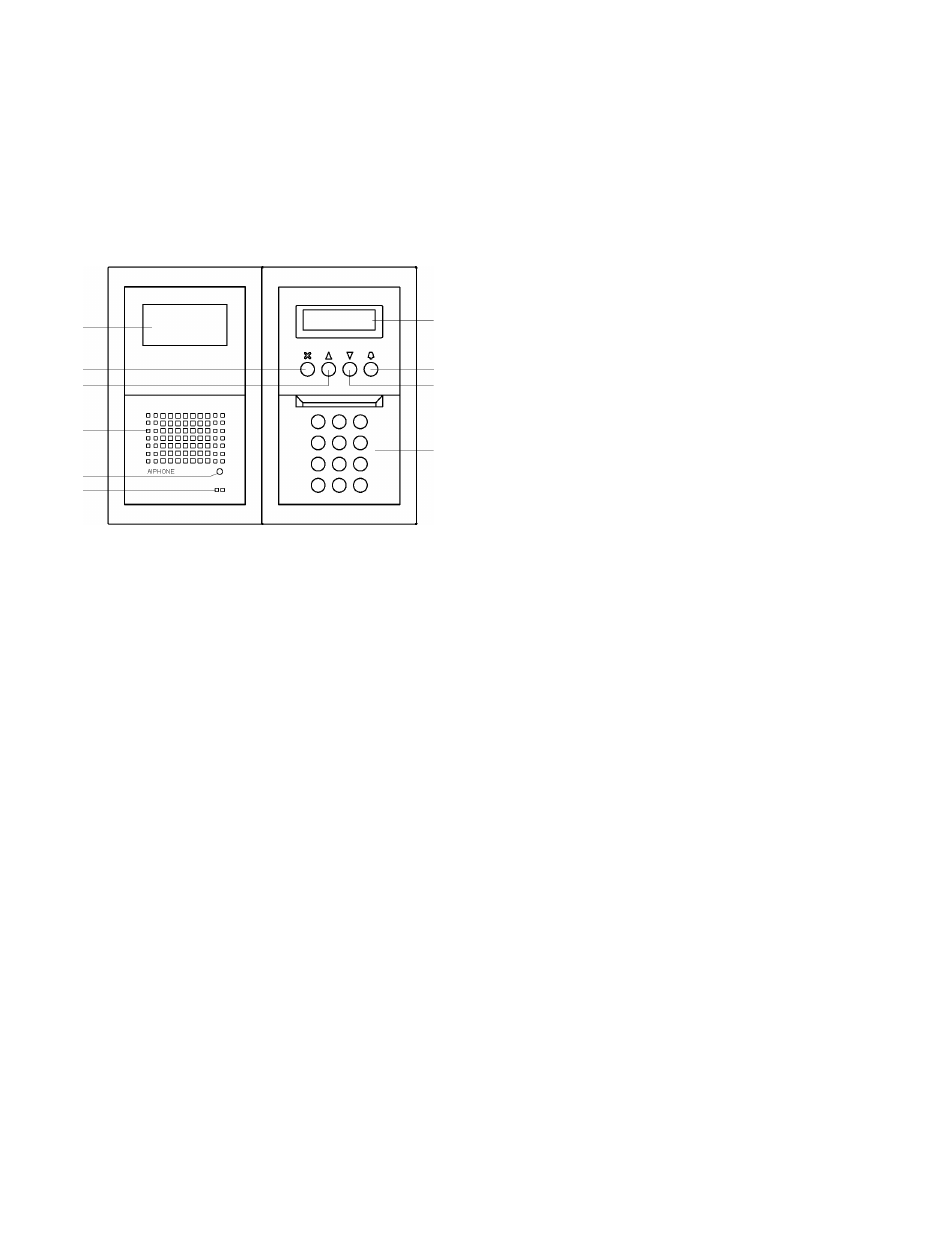

FEATURE CALL-OUTS:
GH-VA
& GF-VP
GH-NS
& GF-NSP
[1]
[6]
[7]
[2]
[3]
[4]
[5]
[9]
[8]
[10]
GH-DA/A
& GH-DP
GH-10K
& GF-10KP
KIT COMPONENTS:
The GHV-DES/A kit is made up of the following
components:
GH-VA: Camera Module
GF-VP: Camera Module Panel
GH-DA/A: Audio Module
GH-DP: Audio Module Panel
GH-NS: Scroll Module
GF-NSP: Scroll Module Panel
GH-10K: Keypad Module
GF-10KP: Keypad Module Panel
GF-2B: 2 Module back box (quantity 2)
GF-2F: 2 Module Frame (quantity 2)
FEATURE CALL-OUT DEFINITIONS:
•
Camera Module GH-VA & GF-VP
[1] Camera
•
Speech Module GH-DA/A & GH-DP
[2] Speaker
[3] In-use LED
[4] Microphone
•
Digital name scrolling module GH-NS & GF-NSP
[5] Display
[6] Cancel Button (or set and return)
[7] Back search button (or move cursor to the left)
[8] Forward search button (or move cursor to the
right)
[9] Call button (or set and move forward)
•
Digital keypad module GH-10K & GF-10KP
[10] 10-key (0 ~ 9, *
*
, #)
SPECIFICATIONS:
Power:
Calling:
Communication:
Capacity:
Wire:
Wiring Distance:
Talk Path:
Dimensions:
24V DC, use specified number of
PS-2420UL per system configuration
Electronic ring tone from entrance
panel
Hands free from entrance panel to
tenant station
Max. 16 Entry panels per system
Max. 4 Concierge stations per system
Max. 500 Tenant stations per system
Max. 4 Tenant stations per unit
Two sets of 2-conductor, PE
insulation (two common buses for
audio and video)
Aiphone #872002, 2 conductor PE
insulated, non-shielded, 11.05 pf/ft.
Aiphone #871802, 2 conductor PE
insulated, non-shielded, 11.05pf/ft
GH-BC to farthest Entrance: 980’
with 20 AWG
GH-BC to farthest Tenant (Audio
line): 980’ with 20 AWG
GH-VBC to farthest Entrance: 980'
with 18AWG
GH-VBC to farthest Tenant (Video
line): 500' with 18AWG
Single channel with privacy
8-7/8” H x 10-5/8” W x 1-3/4” D
(Outer panel dimensions, not
including optional rain hood or
surface mount box.)
GHV-DES/A Spec Sheet
0709 Pg. 2
