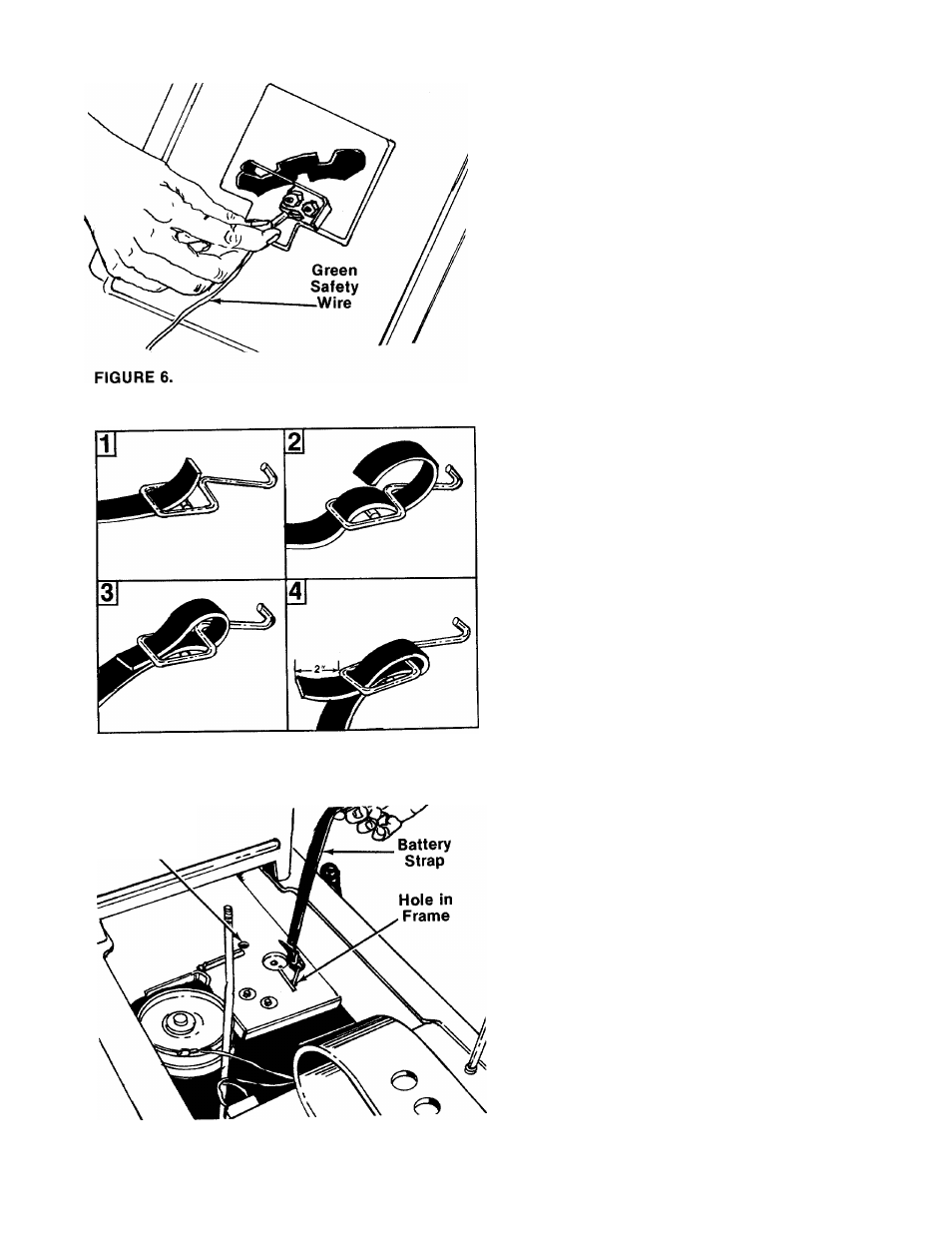

3. Lift the transmission cover. Unplug the green
safety wire from beneath the transmission
See figure 6. Remove transmission
-cover.
cover.
4. Assemble one hook (G) to each end of the bat-
-tery strap (G) as shown in figure 7. Adjust the
strap so there is about 2" of strap beyond the
hooks.
FIGURE 7.
Hole for
Drain Tube
5. Hook one end of the battery strap into the
■hole provided in the frame. See figure 8. Lay
the strap over the side of the frame.
FIGURE 8.
