Bolens 132-698A User Manual
Page 9
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
Mounting Holes
on Seat
Seat
Spring

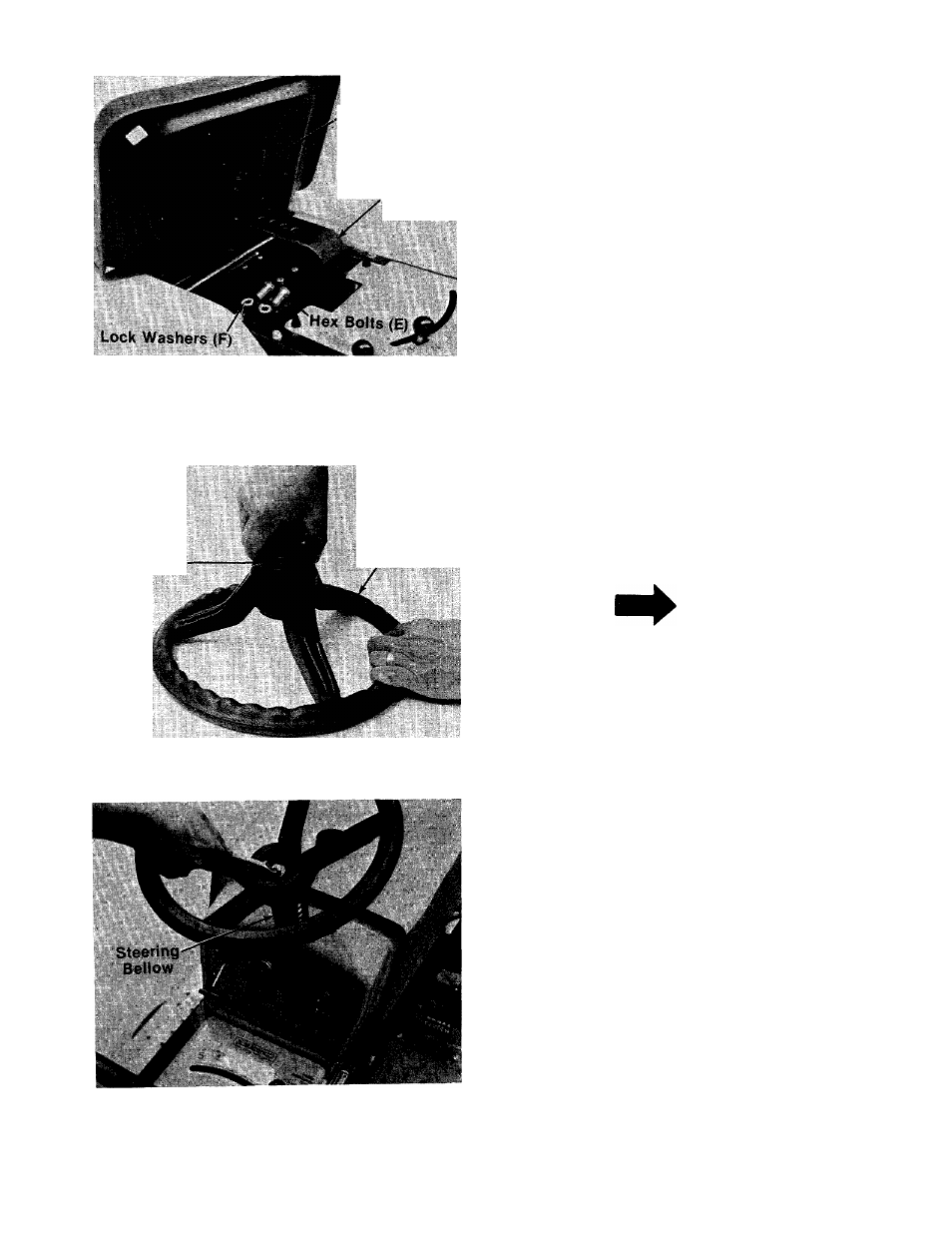

SEAT INSTALLATION
The seat may be adjusted to three different posi-
-tions. Select desired position and secure to seat
spring with hex bolts (E) and lock washers (F). See
figure 13.
FIGURE 13.
Steering
Bellow (D)
Steering
Wheel
STEERING WHEEL INSTALLATION
1.
Attach steering bellow (D) to the steering
------ wheel as shown in figure 14.
NOTE
One end of the steering bellow is
slightly larger than the other. The
larger end must be assembled to the
steering wheel.
FIGURE 14.
2. Place steering wheel and bellow on the steer
ing shaft, lining up the flats in the wheel with
the flats on the shaft.
3. Secure with belleville washer (B) (cupped side
against the steering wheel) and hex nut (C).
—See figure 15.
4. Press the steering wheel cap (A) on the steer
ing wheel by hand.
FIGURE 15.
