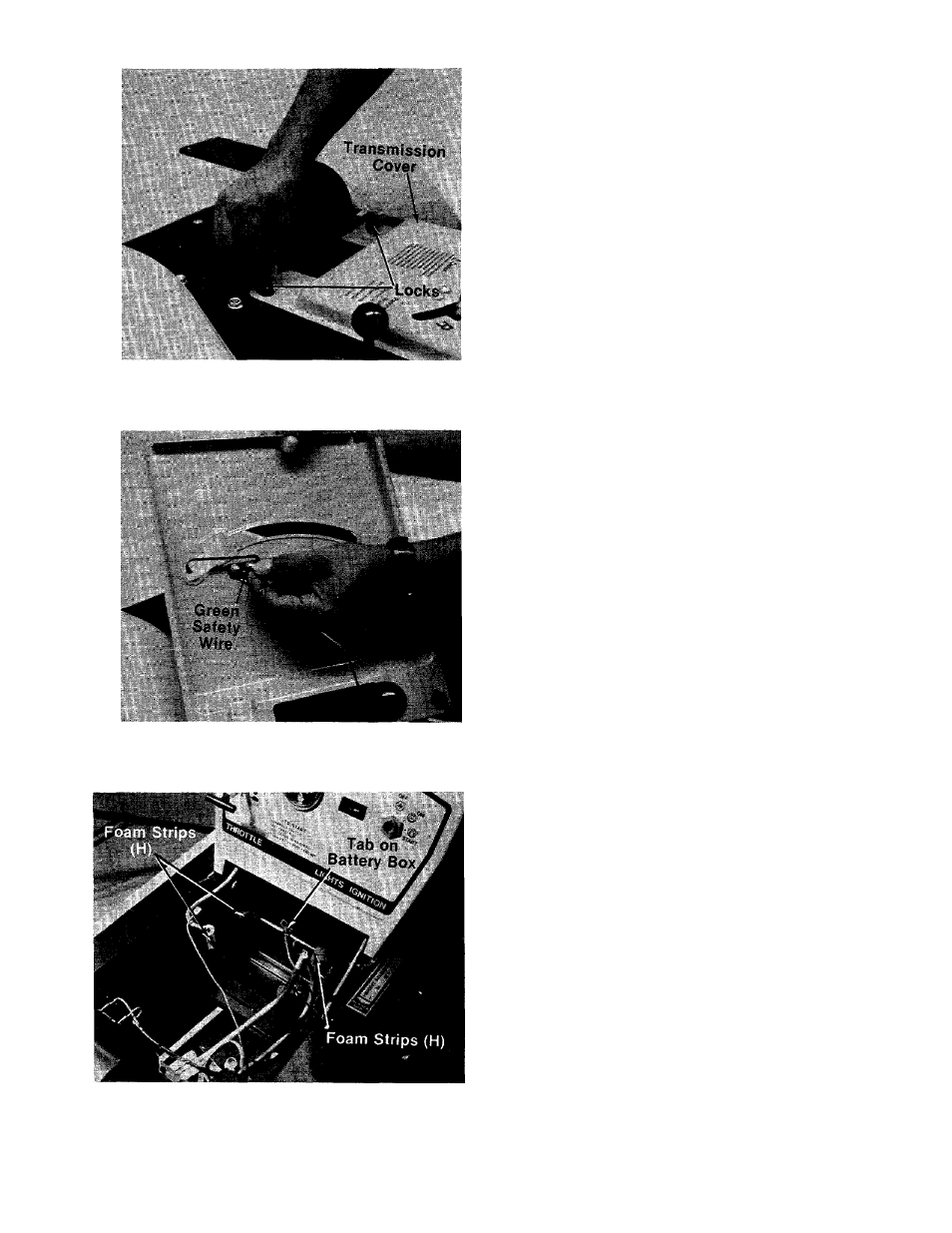

2. Push down and turn the locks on the transmis-

— Sion cover one-quarter turn. See figure 7.

FIGURE 7.

3. Lift the transmission cover. Unplug the green

safety wire from beneath the transmission

—cover. See figure 8. Remove transmission

cover.

FIGURE 8.

4. Install the four foam strips (H) into the battery

box as follows.

A. Using a cloth, clean the Inside of the bat

tery box with a thinner or solvent.

B. Peel the paper off the foam strips to ex

pose the adhesive backing. Press foam

strips firmly into the corners of the battery

--------- box. See figure 9.

FIGURE 9.
