NOTE
When the machine is used for other
than mowing operations, the biade
drive should be disengaged.
GRASS CATCHER Model 015 is available as op­
tional equipment for the lawn tractor shown in
this manual.
®
r warn I ng
*1
The mower should not be operated
without the entire grass catcher or
chute deflector in place.
NOTE
Under normal usage bag material is
subject to wear, and should be
checked periodically. Be sure any
replacement bag complies with the
mower manufacturer’s recommen-
daitons.
For replacement bags, use only fac­
tory authorized replacement bag
No. 764-0121.
ADJUSTMENTS
SEAT ADJUSTMENT
The seat may be adjusted to one of three posi­
tions. Remove hex bolts and lock washers from
under seat spring.
After desired seat location is selected, secure
seat to seat spring with lock washers and hex
bolts. A 3/4" or adjustable wrench is required.
Refer to figure 13.

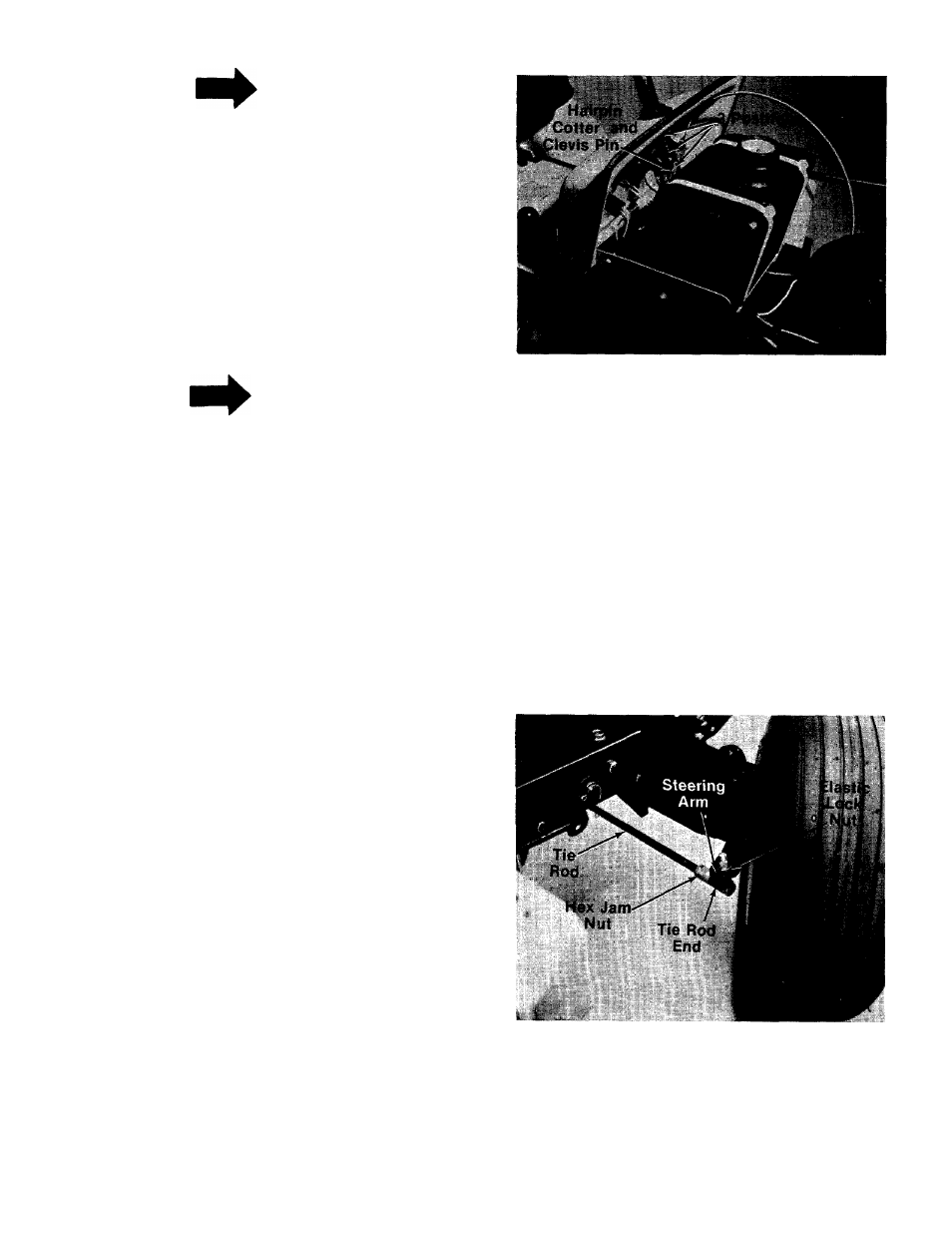

STEERING WHEEL ADJUSTMENT
There are three height positions for the steering
wheel. To adjust the height of the steering wheel,
remove the hairpin cotter and clevis pin shown in
figure 20. Place the steering wheel in the position
desired and secure with hairpin cotter and clevis
pin.
FIGURE 20.
WHEEL ADJUSTMENT
The caster (forward slant of the king pin) and the
camber (tilt of the wheels out at the top) require no
adjustment. Automotive steering principles have
been used to determine the caster and camber on
the tractor. The front wheels should toe-in 1/8
inch.
To adjust the toe-in, follow these steps.
1. Remove the hex nut and lock washer, and
drop the tie rod end from the wheel bracket.
See figure 21.
FIGURE 21.
2. Loosen the hex jam nut on tie rod.
3. Adjust the tie rod assembly for correct toe-in.
