Model 698
B lack
■K
R ed
VIIIWIUH
B lue
vnnn
W hit;e
■i
.......
1
G reen
arFwn
Yellow
mm
O range
mMMi

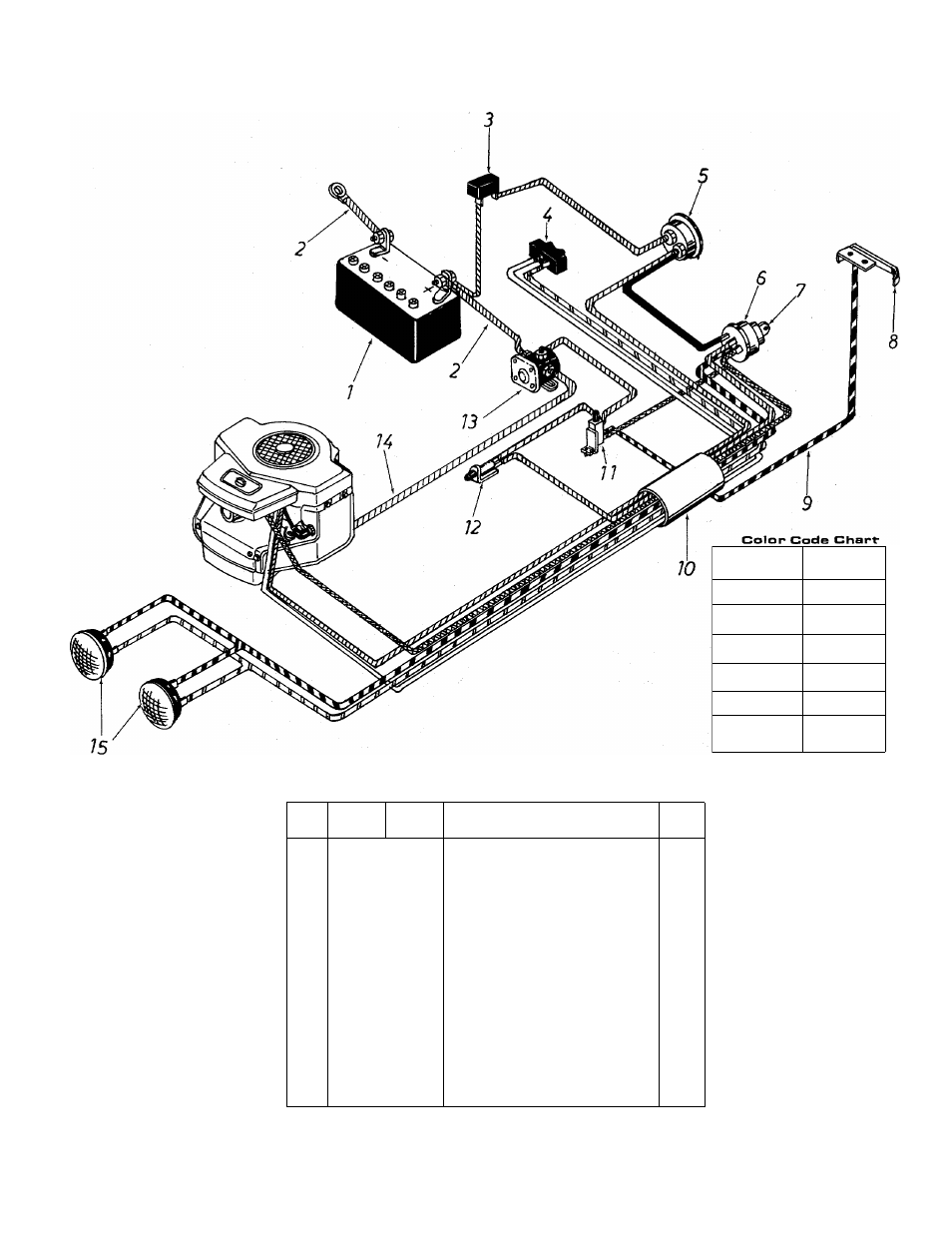

PARTS LIST FOR ELECTRICAL SYSTEM MODEL 698
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
725-0514
Battery
2
725-0221
Electric Wire
3
725-0459
Circuit Breaker
4
725-0634
Light Switch
5
725-0119
Ammeter
6
725-0267
ignition Switch
7
725-0201
Ignition Key
8
725-0759
Reverse Safety Switch
9
—
Electric Wire (Part of Ref.
No. 10)
10
725-0807
Wire Harness
N
11
725-0803
Safety Switch
N
12
725-0577
Safety Switch
13
725-0771
Solenoid
N
14
725-0562
Electric Wire
N
15
725-0222
Headlight
34
