Engine
Pulley
Belt Guard

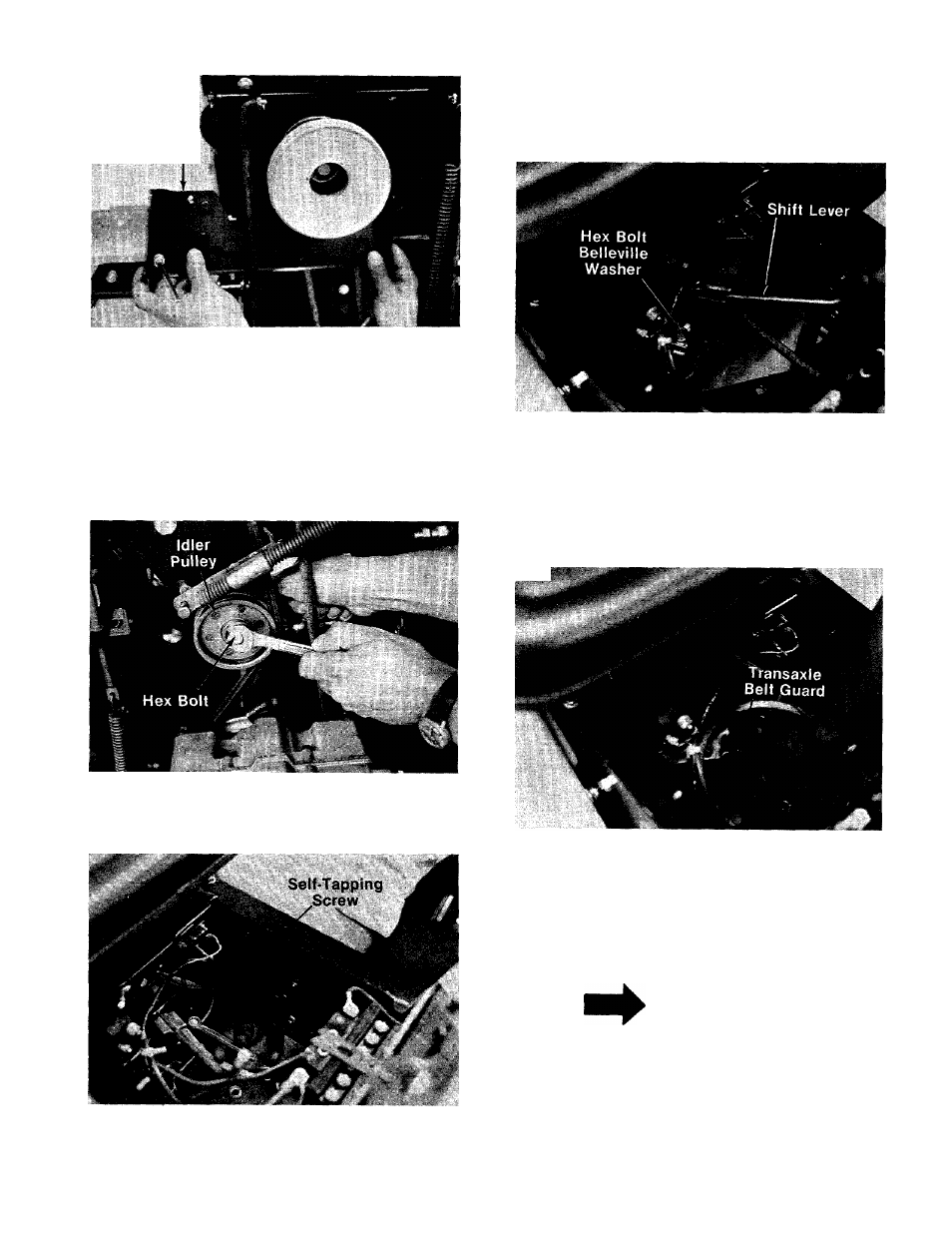

FIGURE 29.
4. Remove the bolt, lock washer and nut which
hold the idler pulley to the idler bracket. See
figure 30.
HI^NOTE
Upon reassembly, the hub side of
the idler pulley must be assembled
against the idler bracket.
FIGURE 30.
5. Remove two self-tapping screws which hold
the transaxle belt guard to the top of the trans­
axle. See figure 31.
6. Remove the transaxle shift lever by removing
the hex bolt and belleville washer. Lift off the
special “D” washer. See figure 32.
FIGURE 32.
7. Slide the transaxle belt guard back. Remove
the belt from the engine pulley. Lift the belt up
and over the transaxle pulley. See figure 33.
FIGURE 33.
8. Reassemble with a new belt, following in­
structions in reverse order.
FIGURE 31.
IMPORTANT
The belt must be reassembled as
shown in figure 34, with the back of
the belt (flat side) against the idler
pulley. The belt must be inside the
pins. Failure to assemble the belt
correctly will damage the belt.
17
