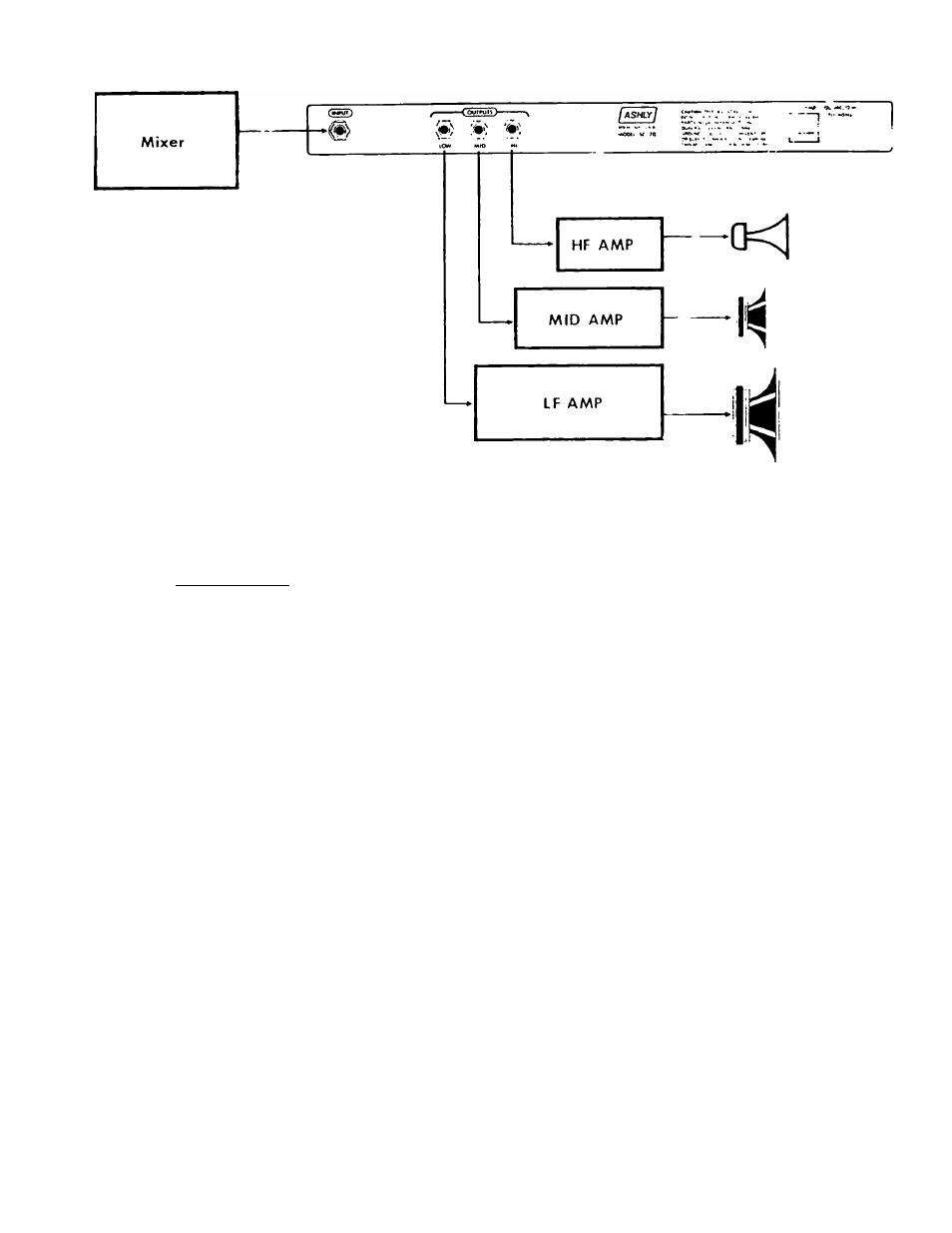

Figure 3 SC-70 3-v/ay crossover showing typi'.a’
plug-in
arrangement
operation.
for пог'па'
MONO LOW OUTPUT
Ashly stereo 3-way and stereo 4-way crossovers have an addit’^anai out nr ыск
labeled MONO LOW OUT. This output represents the sum of th;:- iow riequency
outputs of channels one and two, and is typically used fo' nrivinn ' sub­
woofer system. If you are using the mono low output, you '■'sy al so use the
normal low frequency outputs to drive other speaker systems; fiy or all of the
low
frequency outputs may be used at any given time wthout feur of
interaction between outputs.
SPECIAL APPLICATIONS
A \Shl_' crossovers, with the exception of the mono SC-20, n;. be operated in
SO..K. configuration other than the normal mode. For example, a stereo l-ivay
crossover can also function as a mono 7-way, and a mono 3-wa> can function as
a mono 2-way. The following pages show how to connect your crossover for
these sppcial situations, with suggested front-panel settings.
NOTES:
Actual crossover frequency selection will depend on specr'ic
loudspeakers and personal taste. The settings shown are for
illustration only.
For the sake of simplicity, only our 12dB per octave models are shown.
Initial setup of both 12 and 18dB/octave models will I- the same with
the exception of the rolloff (dB) control settings. You'll see that on
12 dB per octave models, we've recommended a setting ot "6" on the
rolloff control for all crossover points, and a selling of "3" for all
low-pass and high-pass cutoff frequencies. For 18(13 per octave models,
just set all rolloff controls to "3", regardless ov function.
