SPECIFICATIONS

INPUr

GAIN -

oo •

-10d8

ROLLOFF: 1.5dBV-12dB (crossover point

depth)

OUTPUT GAIN - oo - +20dB

INPUT IMPEDANCE 10k ii txjlonced bridging

OUTPUT IMPEDANCE 50

unbalanced-terminote

with 600 il or more

MAX. IN-OUT LEVEL +20dBV

FREQUENCY

RESPONSE +.5dB 20Hz-20kHz (within

passband)

DISTORTION < .05% THD, +10dBV

20Hz-20kHz

HUM AND NOISE -90dBV

POWER 120 VAC.

50-60HZ,

5W.

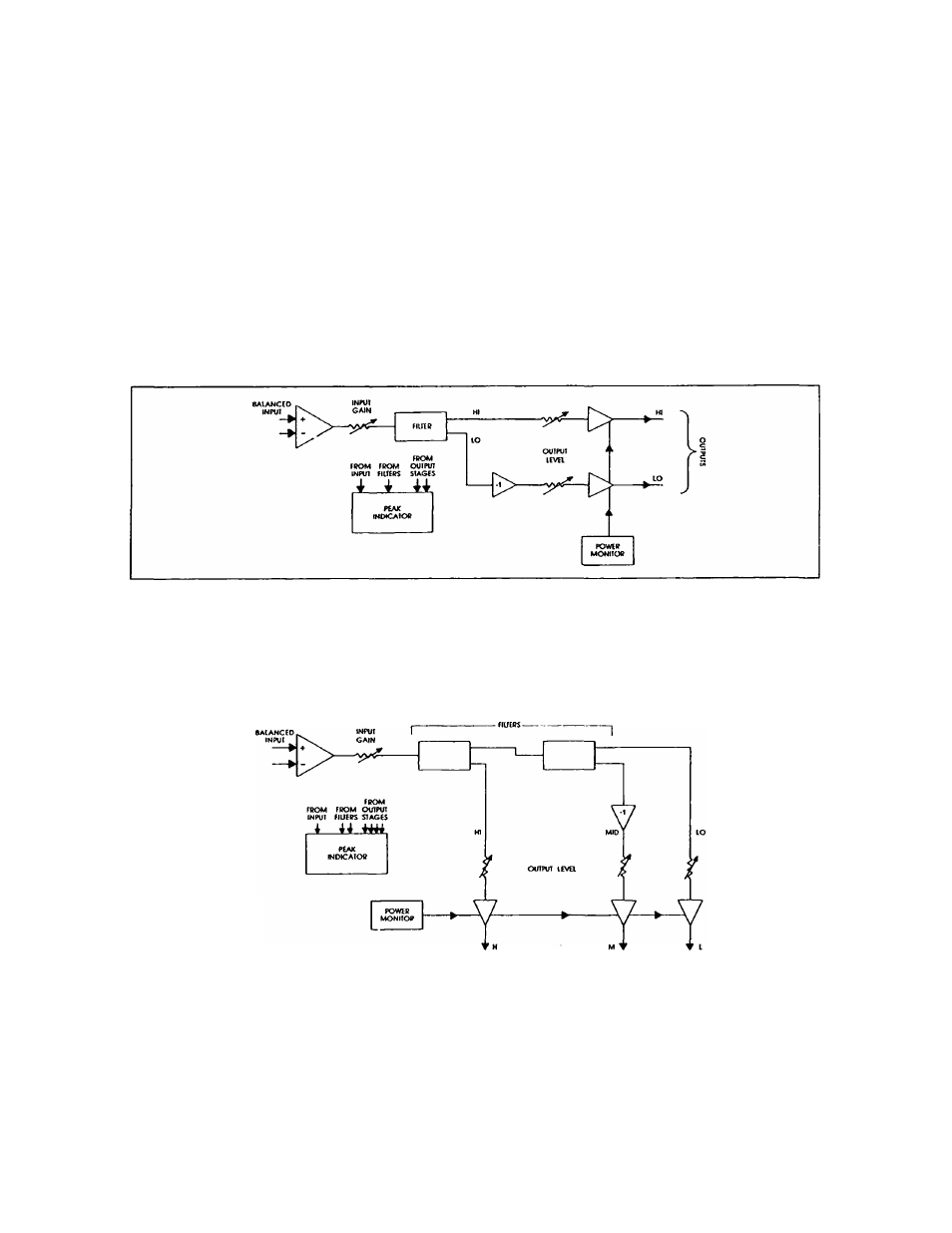

BLOCK DIAGRAMS

Figure 31 Block diagram of Ashly 2-way crossovers

Figure 32 Block diagram of Ashly 3-way 12dB/octave crossovers
