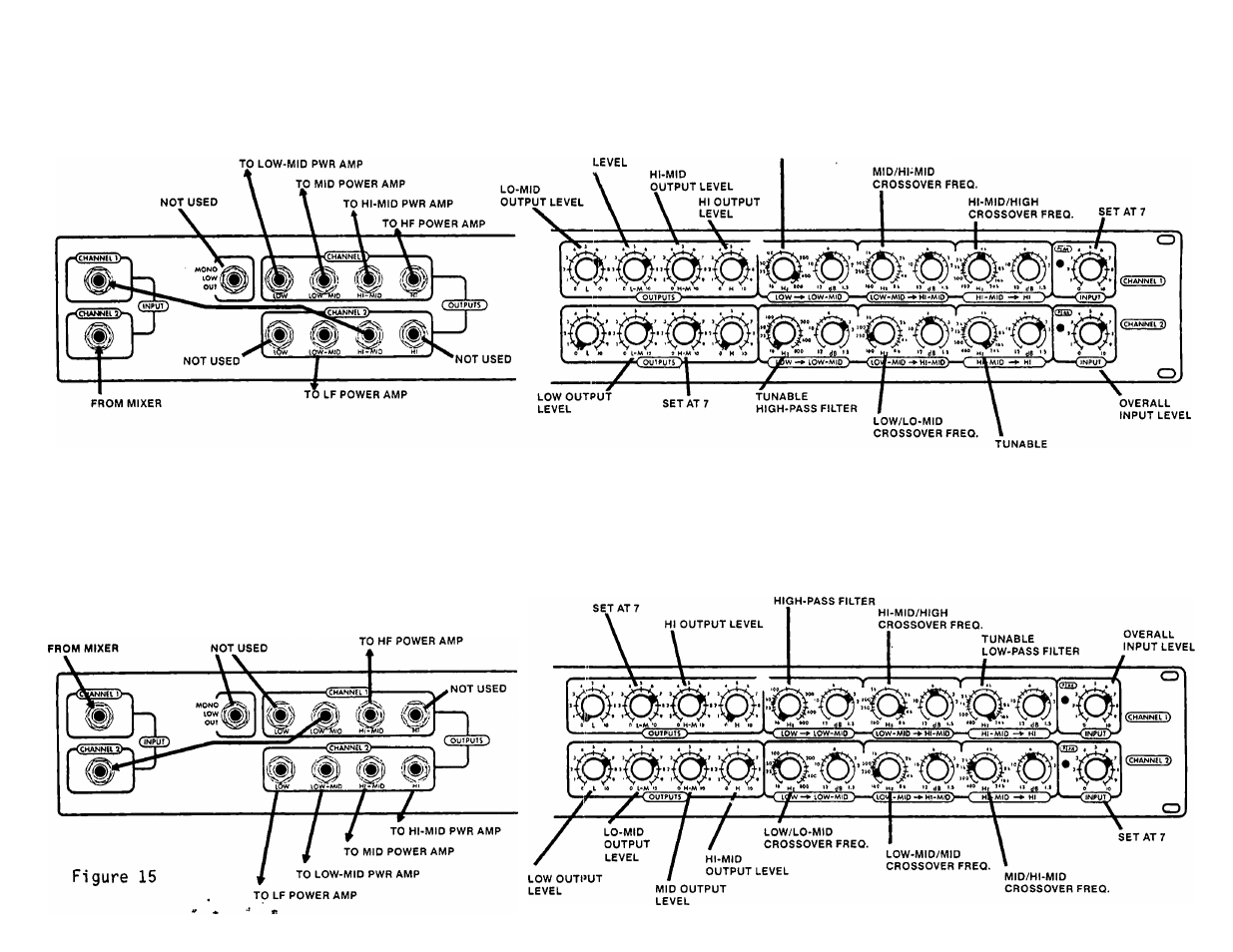

SC-88 USED AS A MONO 5-WAY WITH TUNABLE
SUBSONIC AND ULTRASONIC FILTER
MID OUTPUT
LOW-MID/MID
Figure
14
Use
the
above
version
when
crossover
points
will
be
relatively high. The lowest LOW/LO-MID crossover frequency
of 160 Hz may restrict the use of this configuration. If
lower
crossover
frequencies
are
needed,
use
the
configuration shown in figure 15 below.
