VIDEO INTERCOM SYSTEM
MODEL: MA-D(i/oor
station with illumination lamp)
-
INSTRUCTIONS -
(
names
and
functions
)

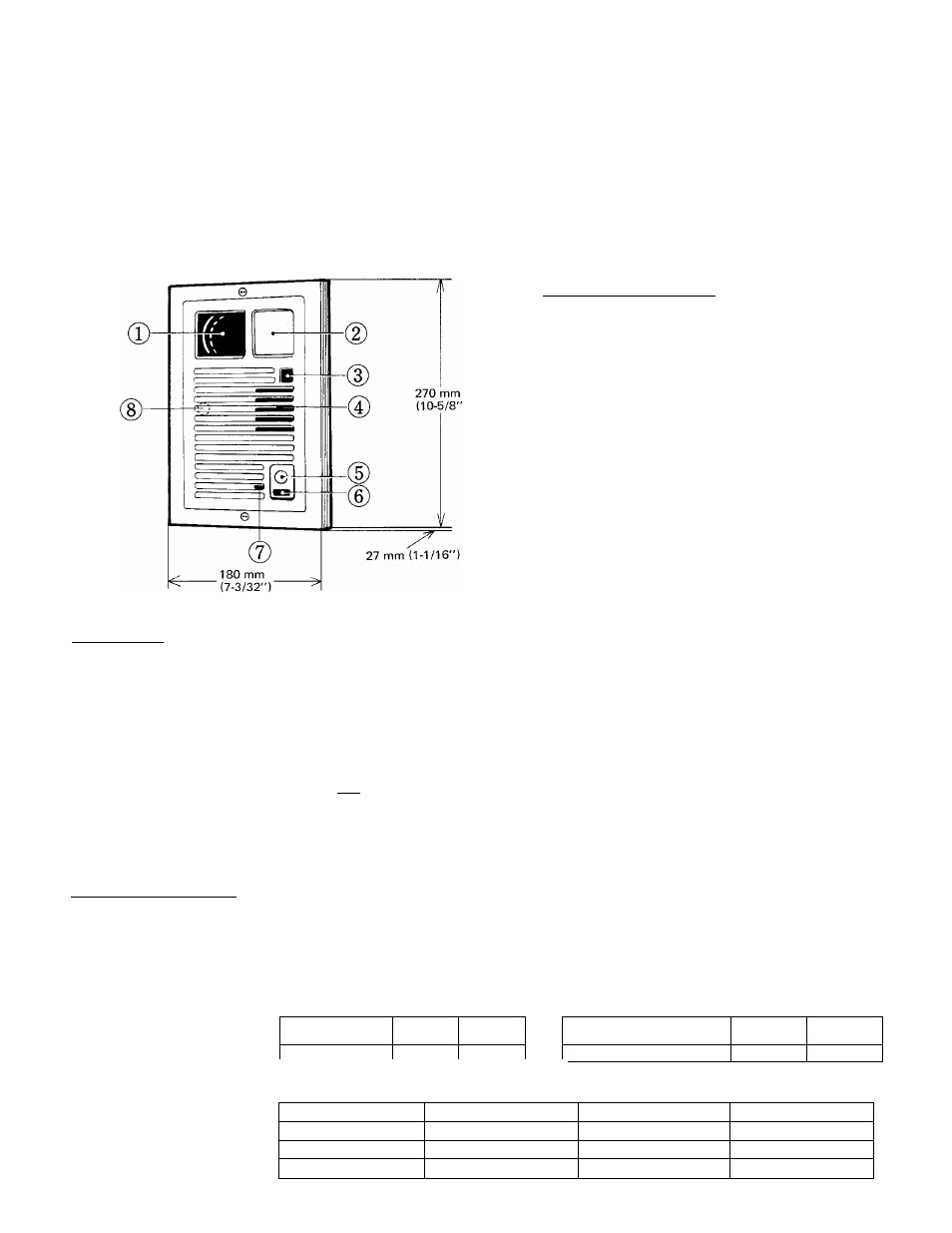

(T)
Camera
Illumination lamp
Beam sensor (to protect vidicon in the camera)
Speaker
Call button
(^LED
(
7
) Microphone
Vertical picture angle adjuster
C
features
)
* Thin, compact design. Projects only 27 mm (1-1/16”) from the wall.
* Vandal-proof door station. Camera lens is protected by high impact-resistant shield. Door station panel is heavy-duty
aluminum with tamper proof screws.
* Sharp camera focus. Door station camera has wide-angle lens, capturing image from 25 cm to up to 5 m (10” to 16’).
* Beam sensor protects the camera from potential damage due to excessive light.
* Quick response door station. Illuminating lamp is lit upon pushing call button. Room station video monitor didplays image
of caller immediately after call tone sounds.
* Monitor button allows you to both see and hear outside.
* Either semi-flush or surface mounting.
* Simple wiring. One coaxial cable plus one pair for illumination lamp.
* Vertical picture angle adjuster included on door station.
* MAW-B relay box for addtional light to illuminate the caller from the front.
C SPECIFICATIONS )
* Vidicon:
2/3 inch vidicon (2.25 inch through lens)
* Illumination requirements: About 10 lux.
Carrier frequency:
Wiring:
Wiring distance:
Transmission...............6.0 MHz.
Reception.....................6.5 MHz.
One coaxial cable plus a pair wires for illumination lamp.
Audio/Video;
Coaxial cable
3C-2V
5C-2V
Max. distance
100 m
300 m
Coaxial cable
(size of core conductor)
RG-59/U
(22GA)
RG-59/U
(20GA)
Max. distance
600'
1,000'
*Coxial cable requirements on page 3 must be met.
Illumination lamp;
Wire gauge
0.8 mm dia.
1.2 mm dia.
1.6 mm dia.
Max. distance
100 m
200 m
300 m
Wire gauge
20 AWG
16 AWG
14 AWG
Max. distance
330’
660’
1,000’
1
-
