Attaching The Seat
Seat styles vary by tractor model and there are three
different styles available:
• Standard Adjustment
• Quick Adjustments
• Knob Adjustment

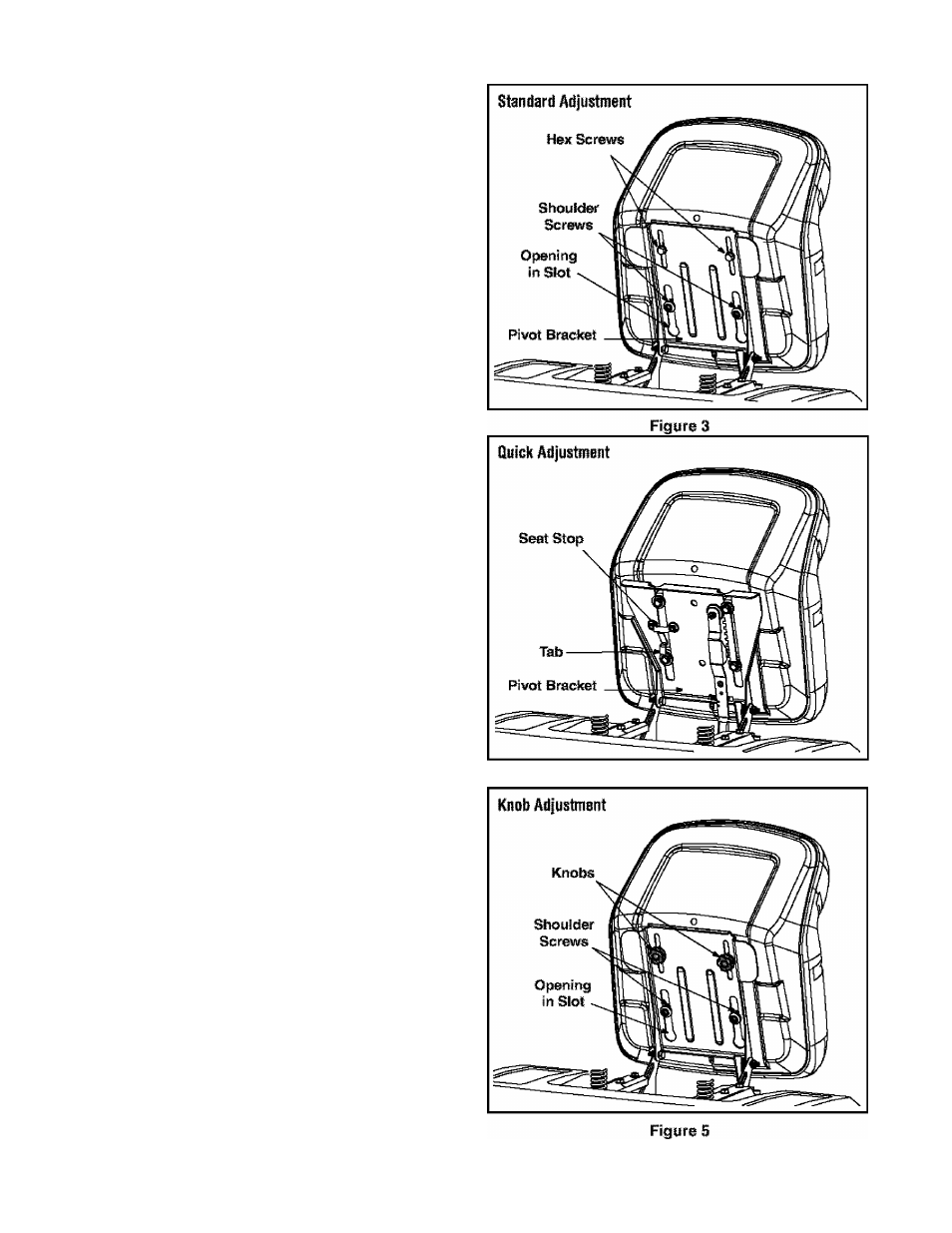

Refer to Figure 3, Figure 4 and Figure 5 to identify
which your tractor’s seat style and follow applicable
instructions below.
NOTE: For shipping reasons, seats are either
fastened to the tractor seat’s pivot bracket with a plastic
tie, or mounted backward to the pivot bracket, in either
case, free the seat form its shipping position and
remove the two hex screws (or knobs, on models so
equipped) from the bottom of seat before proceeding
with applicable instructions be/ow.
Sltemdard Adjustment Seat
1. Position the shoulder screws (found on the base of
the seat) inside the slot openings in the seat pivot
bracket. Figure 3.
Slide the seat slightly rearward in the seat pivot
bracket, lining up the rear slots in the pivot bracket
with the remaining two holes in the seat’s base.
Select desired position for the seat, and secure with
the two hex screws removed earlier. See Figure 3.
Quick Adjustment Seat
NOTE: If your seat was shipped mounted backwards
on the seat pivot bracket, puil out the tab found on the
seat stop and hold it open while sliding the seat off the
seat pivot bracket. See Figure 4.
1. Line up the plastic seat spacers with the slots in
seat pivot bracket.
2. Slide seat in until front seat spacer engages the
seat stop. See Figure 4.
WARNING: Before operating this machine,
make sure the seat is engaged in the seat
stop, stand behind the machine and pull back
on seat until fully engaged into stop.
2
.
3.
A
Knob Adjustment Ssst
1. Position the shoulder screws (found on the base of
the seat) inside the slot openings in the seat pivot
bracket. Figure 5.
2. Slide the seat slightly rearward in the seat pivot
bracket, lining up the rear slots in the pivot bracket
with the remaining two holes in the seat’s base.
3. Select desired position for the seat, and secure with
the two knobs removed earlier. See Figure 5.
Figure 4
