* Two turns at a time, thread the adjustment ferrule
toward the right, front tire to lengthen the tie rod. Or,
thread the adjustment ferrule away from the right,
front tire to shorten the tie rod.
NOTE: Lengthening the tie rod increases the tractods
front tie toe-in. Shortening the tie rod decreases the
tractor’s front tire toe-in.
* Reinsert the adjustment ferrule and temporarily
secure it with the cotter pin removed earlier.
* Make certain the steering wheel is in position for
straight-ahead travel before again taking
measurements. Continue to repeat the steps above
until a proper adjustment is achieved.
* Secure the tie rod to the right axle with the fiat
washer removed earlier and a replacement cotter
pin.
IMPORTANT: Do NOT reuse the original cotter pin once
it has been removed.
SECTION 7
: MAINTAINING YOUR LAWN TRACTOR
A
WARNING: Before performing any
maintenance or repairs, place the deck
engagementtifl lever in the BLADES STOP
position, move shift lever into neutral position,
set parking brake, stop engine and remove
key to prevent unintended starting.
Cleaning the Engine And Deck
Any fuel or oil spilled on the machine should be wiped
off promptly. Do NOT allow debris to accumulate
around the cooling fins of the engine or on any other
part of the machine, especially the belts, pulleys and
other moving parts. Clean the underside of the deck
with a wisk broom, scraper or forced air after each
mowing.
IMPORTANT: The use of a pressure washer or garden
hose to clean your tractor is NOT recommended, it may
cause damage to electrical components, spindles,
pulleys, bearings or the engine. The use of water will
result in a shortened life of the tractor and reduce its
serviceability.
Engine
Refer to the Briggs & Stratton Operattor/Owner
Manual (or Tecamseh engine’s Owner’s Manual)
for engine maintenance instructions.
Check engine oil level before each use as instructed in
the Briggs & Stratton Operator/Owner Manual (or
Tecumseh engine’s Owner’s Manual) packed with your
unit. Follow the instructions carefully.
Changing Engine Oil
(models equipped with an oii drain sleeve)
For draining oii from the engine’s crankcase of select
model tractors, a plastic oil drain sleeve is packed with
this Operator’s Manual. To drain the oil, proceed as
follows;
* Unscrew the oil fill cap and remove the dipstick
from the oil fill tube.

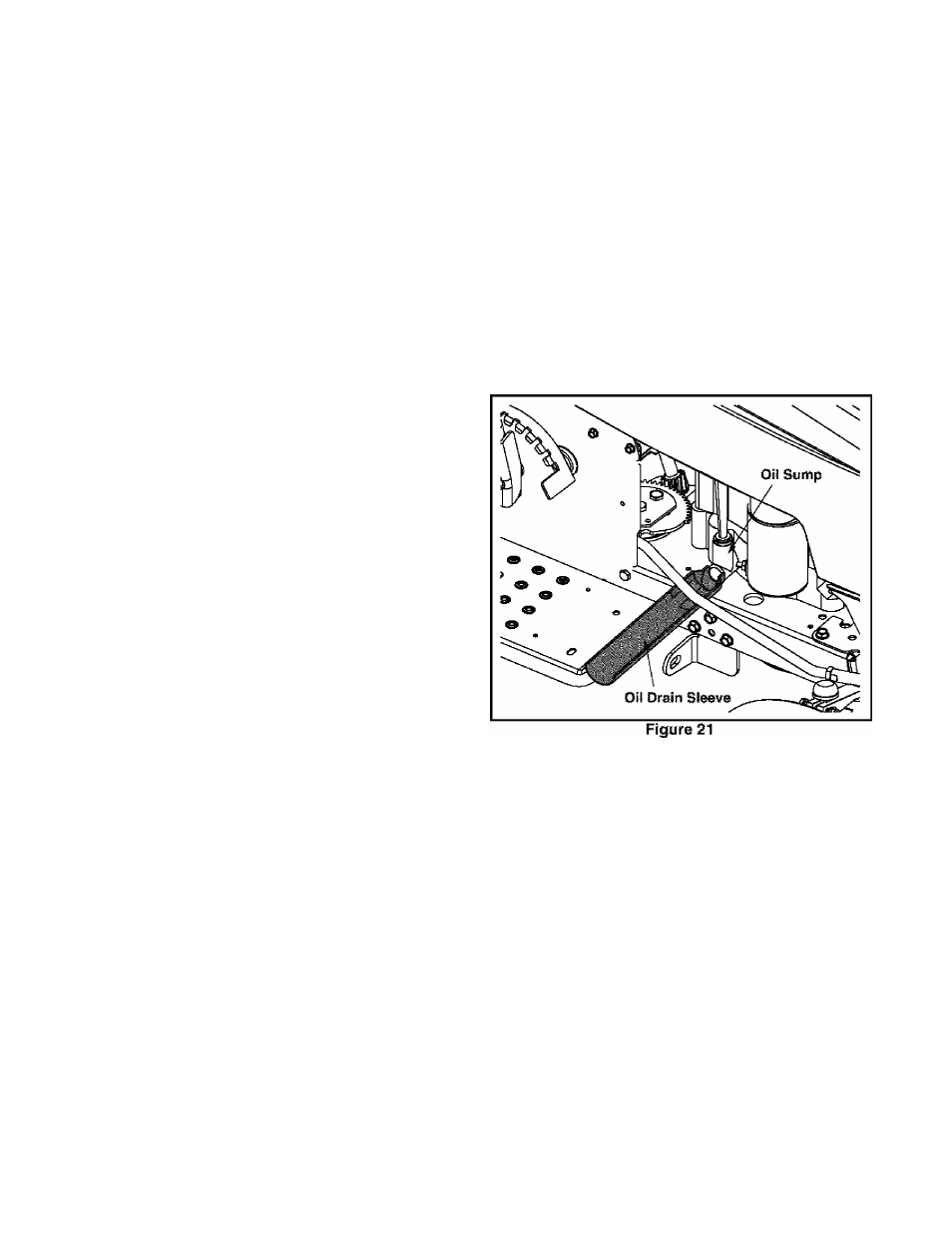

Snap the small end of oil drain sleeve onto the oil
sump. See Figure 21.
* Remove drain piug and drain oil into a suitable
container with a capacity of no less than 64 oz.
* Service the oil filter (if so equipped) as instructed
in the separate Briggs & Stratton Operator/Owner
Manual (or Tecumseh engine’s Owner’s Manual)
packed with your unit.
Perform the above steps in the opposite order after oil
has finished draining.
* Refill the engine with new motor oil.
IMPORTANT: Refer to the Briggs & Stratton Operator/
Owner Manual (or Tecumseh engine’s Owner’s
Manual) packed with your unit for information regarding
the quantity and proper weight of motor oii.
Changing Engine Oil
(models equipped with an nii drain valve)
NOTE: Depending on your tractor’s engine make S
model, it may be necessary to remove the tractor’s side
panel in order to replace the oii filter (if so equipped).
20
