.1='

'■li

Lippe

Handle

Hand

Knob (D)

Lower

Handle

Curved

Carriage

Bolt (C)

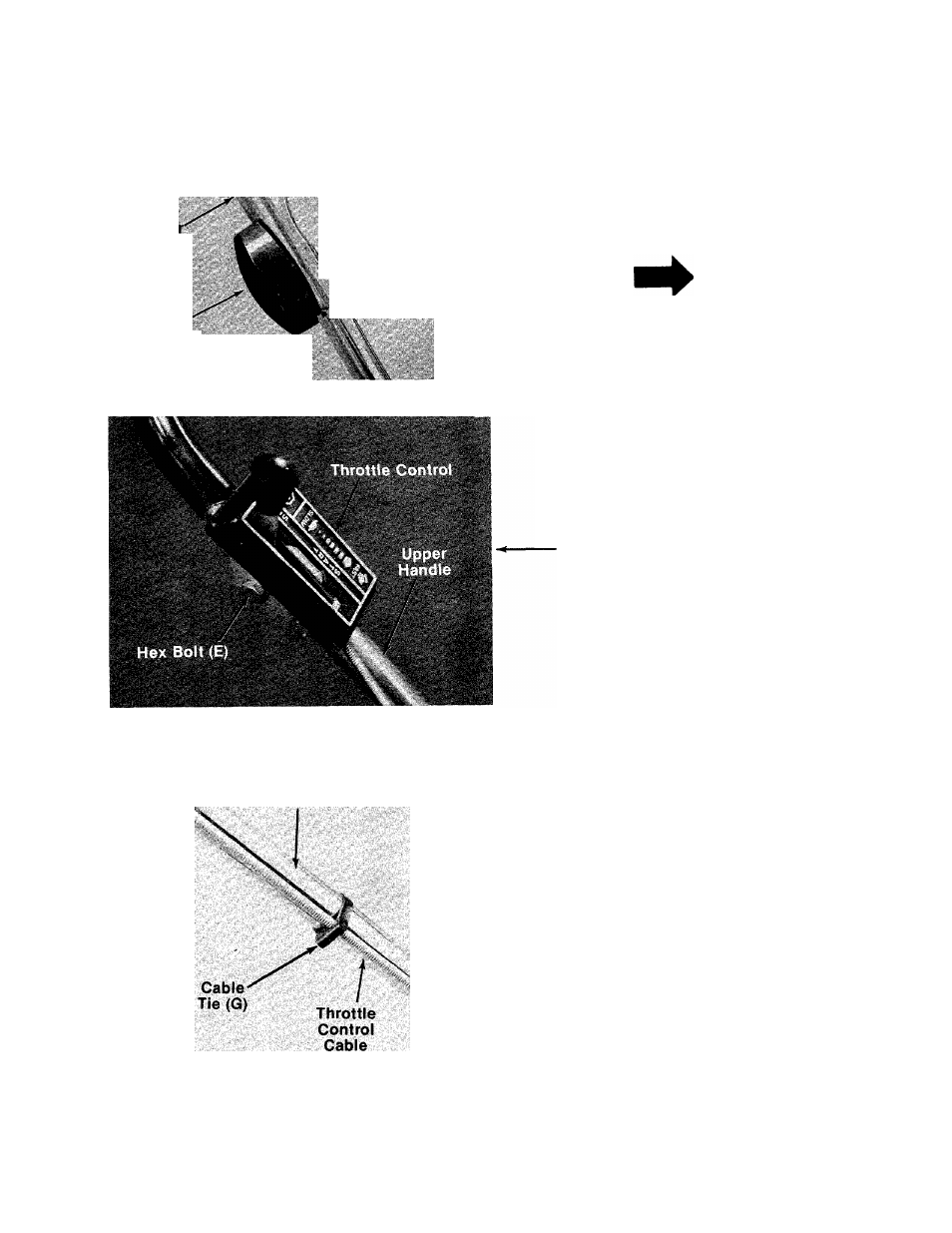

FIGURE 4.

4. Assemble upper handle to lower handle.

Secure with two curved carriage bolts (C) and

hand knobs (D) as shown in figure 4. The hand
knobs may be assembled either to the inside

— orthe outside of the handle.

NOTE

There are two height positions for

the handle. See adjustment section.

5. Place the throttle control in position on right

side of upper handle. Secure with hex bolt (E)
and lock nut (F). See figure 5.

FIGURE 5.

Handle

mi:

6. Secure throttle control cable to handle with

—cable ties (G) provided. See figure 6.

FIGURES.
