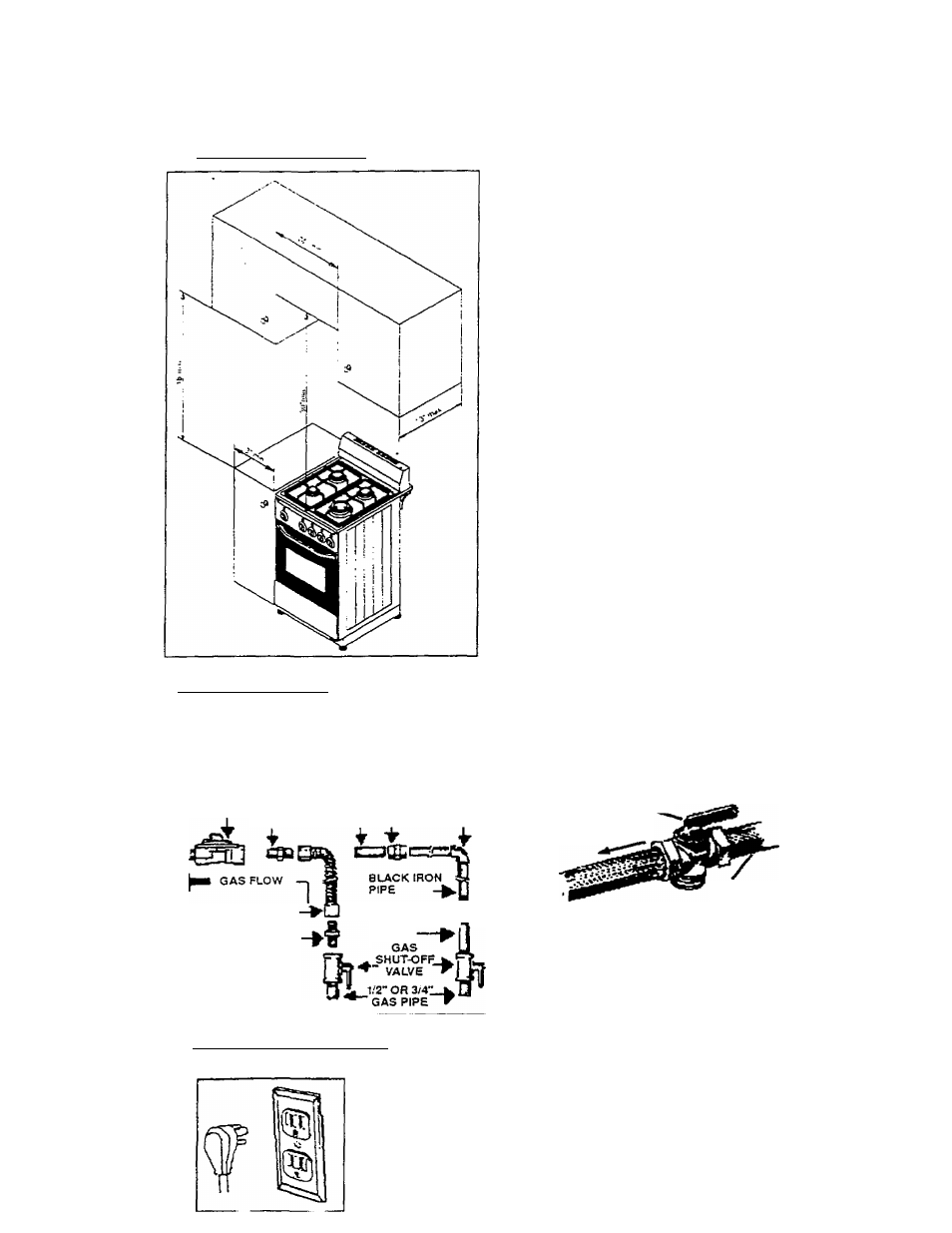

Space Requirements

Gas Requirements

TYPICAL CONNECTIONS

FLEXIBLE CONNECTOR HOOK UP RIGID PIPE HOOK UP

PRESSURE
REGULATOR

UNION

ADAPTER NIPPLE |

FLEX CONNECTOR-

ADAPTER

UNION

NIPPLE

Electrical Requirements

120-VOLT. 60 HZ. 15 AMP MINIMUM

0” to rear and 0” sides below
cooktop.
3” to sides from cooktop to 18'

above the level of cooking

surface.
30” to bottom of wall cabinets
over cooktop.

Range dimensions:

Width

Depth
Height

24”
24”
35”

GAS SHUT OFF VALVE

MANUAL SHUT OFF VALVE

"OPEN" POSmON

TO RANGE

GAS
SUPPLY

16011C8£*Fi
